1981 Yamaha EX440E OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

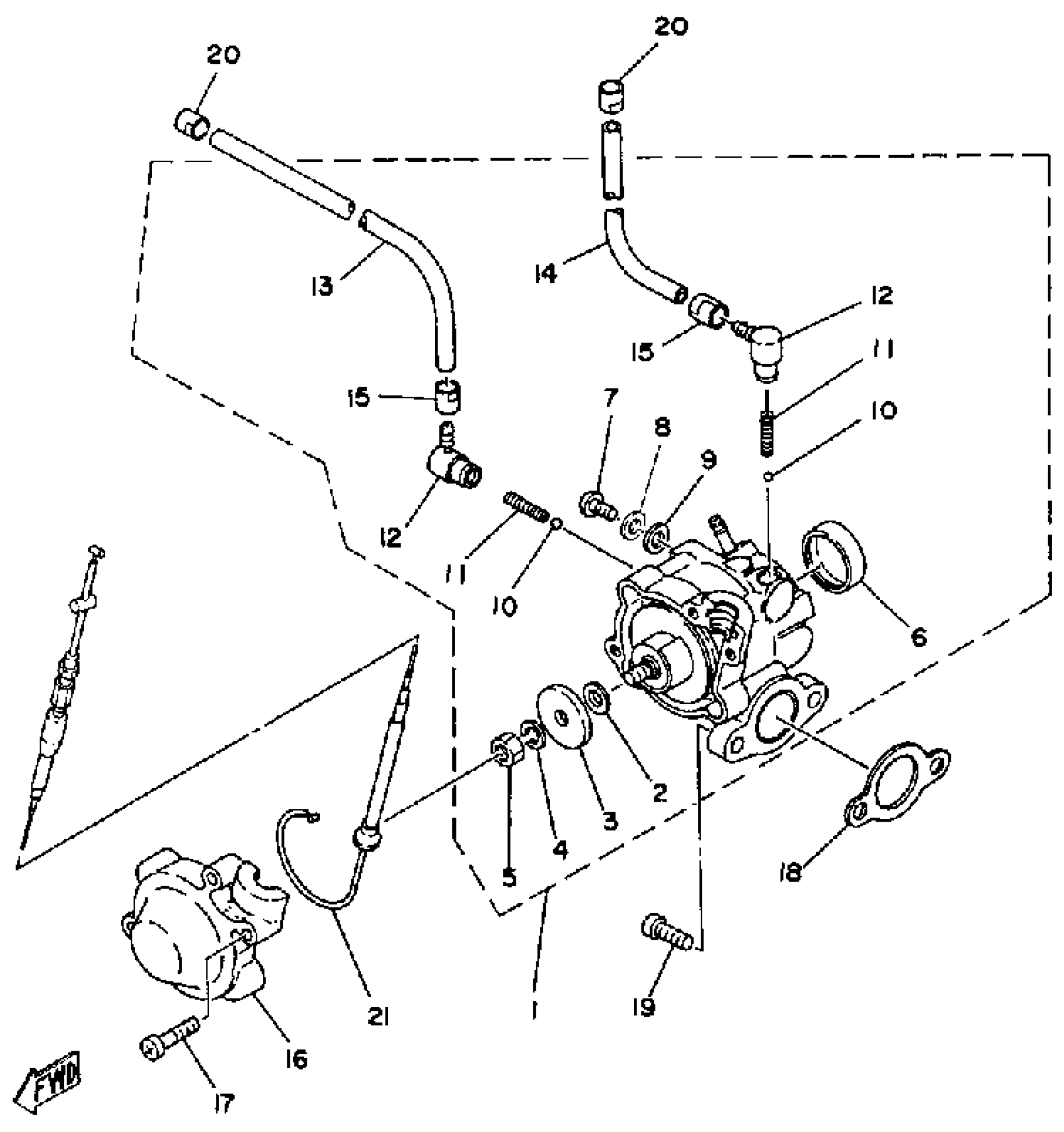

1981 Yamaha EX440E OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8G6-13101-00-00

1
Out of stock

2

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

2

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

2

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

. PLUG

90338-21100-00

1
Out of stock

7

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

GASKET 137131870000

90430-04004-00

1
Out of stock

10

BALL

93505-32002-00

1

$2.22

In stock

11

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

12

NOZZLE

353-13552-01-00

1
Out of stock

13

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

14

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

15

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

16

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

17

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

18

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

19

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

20

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

21

PUMP CABLE ASSEMBLY

8G6-26320-01-00

1
Out of stock
