1981 Yamaha EX440E OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

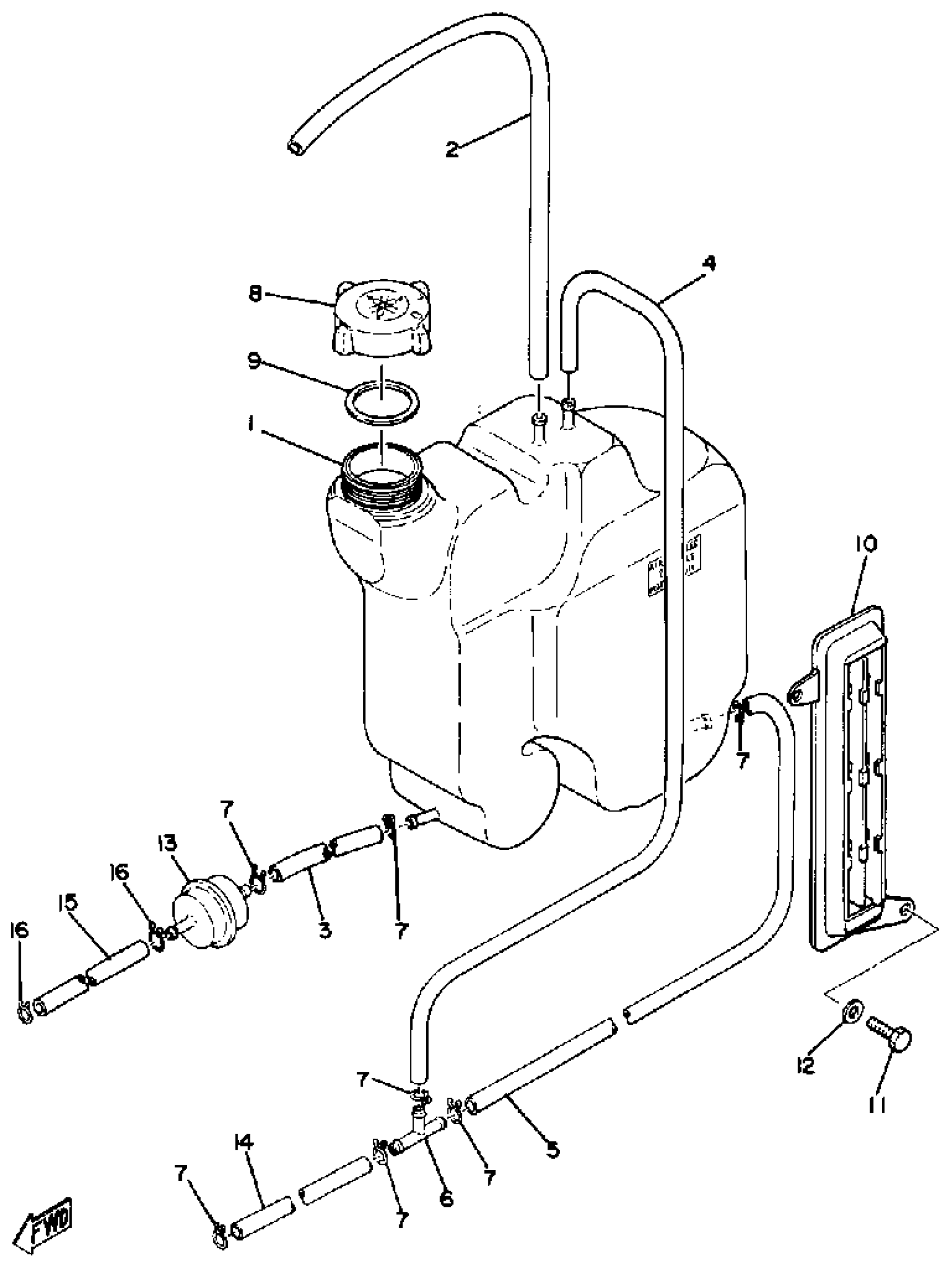

1981 Yamaha EX440E OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

878-21751-01-00

1
Out of stock

2

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

1
Out of stock

3

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

1

$8.80

In stock

4

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

1

$12.58

In stock

5

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

1

$16.89

In stock

6

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

7

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

8

BODY, CAP

8LU-21771-00-00

1

$25.12

In stock

9

GASKET, TANK (867)

90430-31003-00

1

$7.77

In stock

10

GAUGE, LEVEL

878-21761-00-00

1
Out of stock

11

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

12

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

13

STRAINER HOUSING ASSEMBLY

J10-13410-00-00

1
Out of stock

14

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

1
Out of stock

15

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

1

$8.80

In stock

16

CLIP (8L2)

90467-08017-00

1

$7.51

In stock
