1981 Yamaha EX440E Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

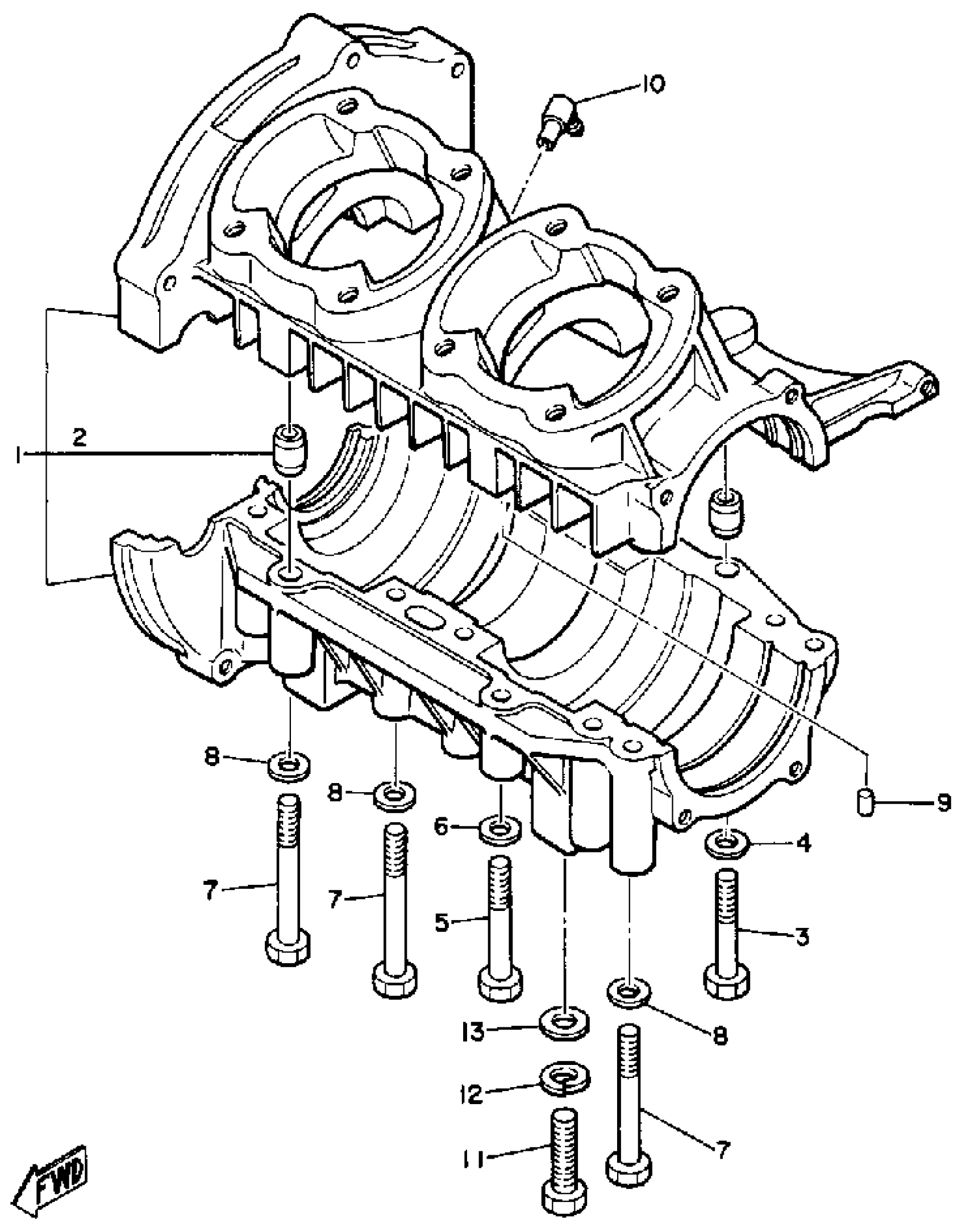

1981 Yamaha EX440E Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(8A5-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

PIN,DOWEL (168)

93604-12037-00

1
Out of stock

10

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

11

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock
← AIR Shroud-FAN Crankshaft-Piston →
