1981 Yamaha EX440E Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

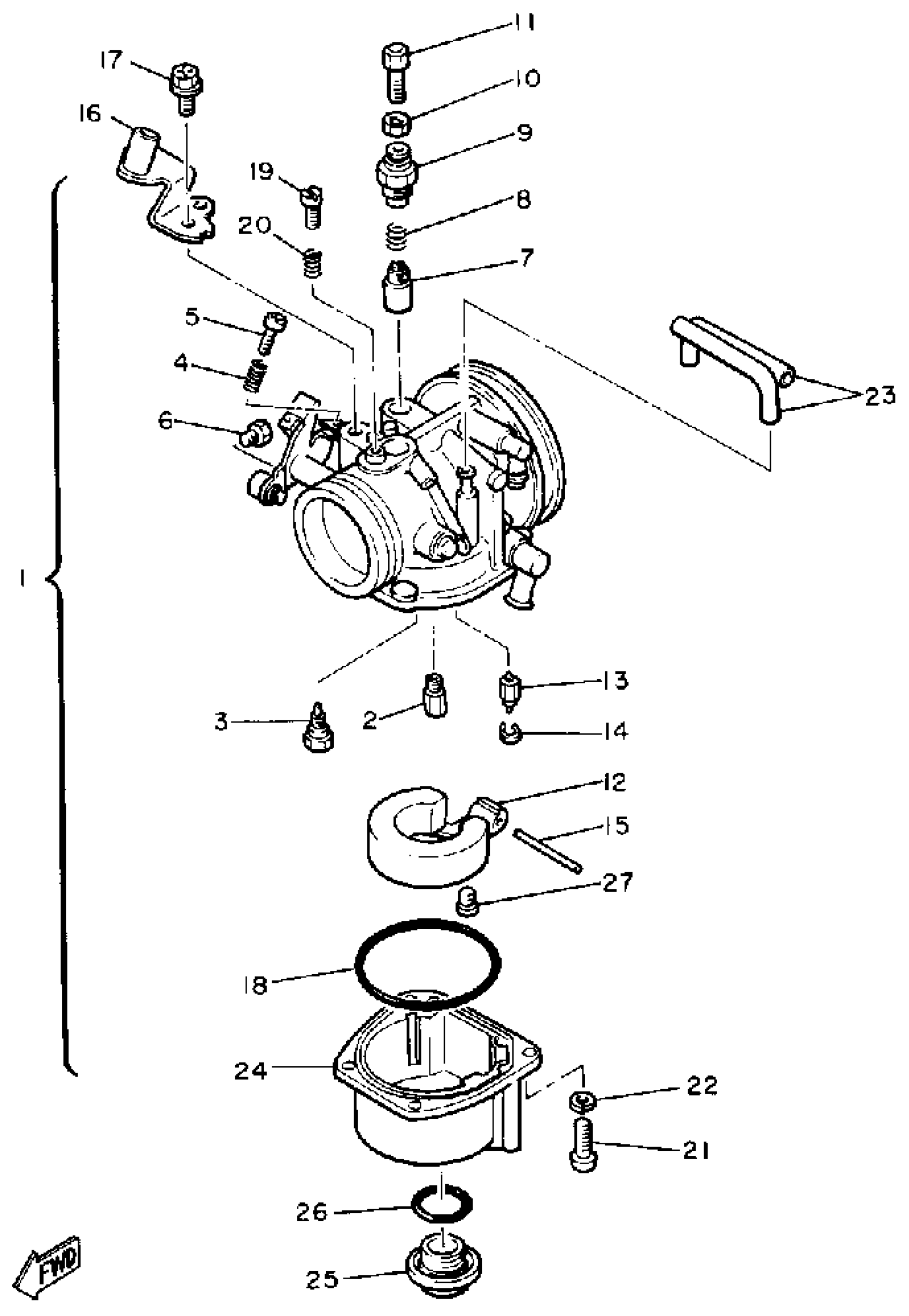

1981 Yamaha EX440E Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

8H6-14101-01-00

1
Out of stock

2

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

2

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock

2

. JET, MAIN #145

8A6-14516-45-00

1
Out of stock

2

. JET, MAIN #150

8A6-14516-50-00

1
Out of stock

3

. JET #90

8G6-14948-23-00

1
Out of stock

4

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

5

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

6

SCREW

(8F3-14591-00-00)

1
Out of stock

7

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

8

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

9

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

10

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

11

1

$19.06

In stock

12

FLOAT

8G6-14985-01-00

1

$32.43

In stock

13

VALVE,FLOAT

8E7-14546-01-00

—

$57.49

In stock

14

CLIP

633-14159-00-00

—

$13.88

In stock

15

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

16

. PLATE, STAY

8G6-14572-00-00

1
Out of stock

17

. SCREW

8G6-14592-00-00

1
Out of stock

18

WASHER, FLOAT CHAMBER

8G6-14984-00-00

—

$16.62

In stock

19

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

20

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

21

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

22

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

23

. NET, FILTER

8G6-14994-01-00

1
Out of stock

24

. BODY, FLOAT CHAMBER

8K4-14980-00-00

1
Out of stock

25

. ROD

8M7-14992-00-00

1
Out of stock

26

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

27

SCREW, FLAT

98707-04008-00

1
Out of stock
