1981 Yamaha EX440E Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

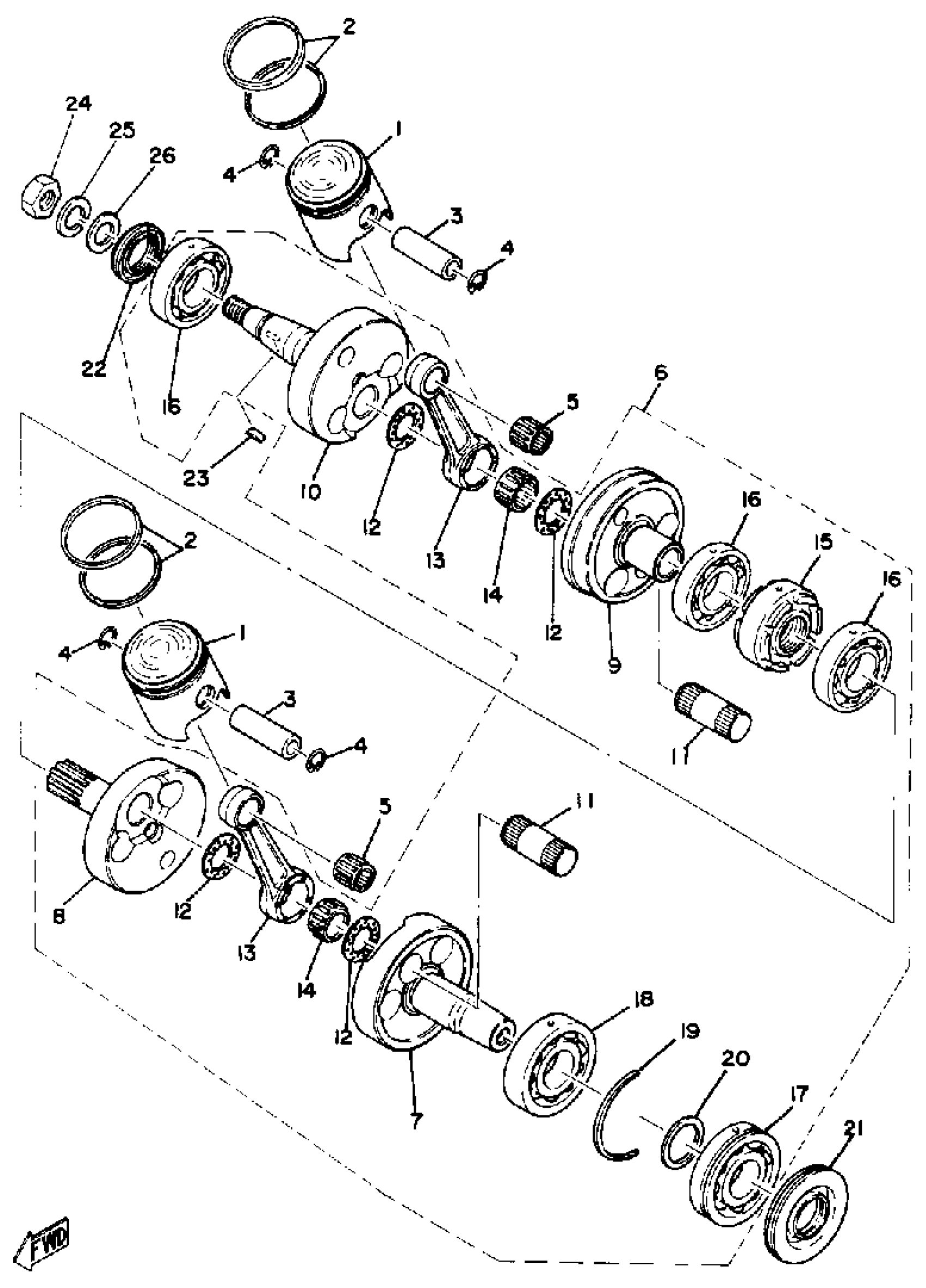

1981 Yamaha EX440E Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD

8G6-11631-00-96

1
Out of stock

1

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

8G6-11635-00-00

1
Out of stock

1

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

8G6-11636-00-00

1
Out of stock

1

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

8G6-11637-00-00

1
Out of stock

1

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

8G6-11638-00-00

1
Out of stock

2

PISTON RINGSET STD (STD)

8G6-11601-00-00

1
Out of stock

2

PISTON RINGSET 1ST (1ST O/S)

8G6-11601-10-00

1
Out of stock

2

PISTON RINGSET 2ND (2ND O/S)

8G6-11601-20-00

1
Out of stock

2

PISTON RINGSET 3RD (3RD O/S)

8G6-11601-30-00

1
Out of stock

2

PISTON RINGSET 2ND (4TH O/S)

8G6-11601-40-00

1
Out of stock

3

PIN, PISTON

818-11633-00-00

1

$28.05

In stock

4

CLIP 6041163400

93450-20026-00

1

$5.10

In stock

5

1

$32.87

In stock

6

CRANKSHAFT ASSEMBLY

8A5-11400-00-00

1
Out of stock

7

. CRANK 1

8A5-11412-00-00

1
Out of stock

8

CRANK 2

(821-11422-01-00)

1
Out of stock

9

CRANK 3

(821-11432-01-00)

1
Out of stock

10

CRANK 4

(821-11442-00-00)

1
Out of stock

11

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

12

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

13

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

14

BEARING

93310-424E8-00

1

$19.49

In stock

15

. SEAL, LABYRINTH 1

8A5-11515-00-00

1
Out of stock

16

BEARING(8V0)

93306-20633-00

—

$67.35

In stock

17

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

18

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

19

CIRCLIP (8H8)

93440-78069-00

—

$5.72

In stock

20

WASHER (8H0)

90201-34683-00

—
Out of stock

21

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

22

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

23

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

24

NUT

90170-16425-00

—
Out of stock

25

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

26

WASHER, PLATE (32N)

90201-163G6-00

—

$6.98

In stock
