2025 Kawasaki Eliminator ABS Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

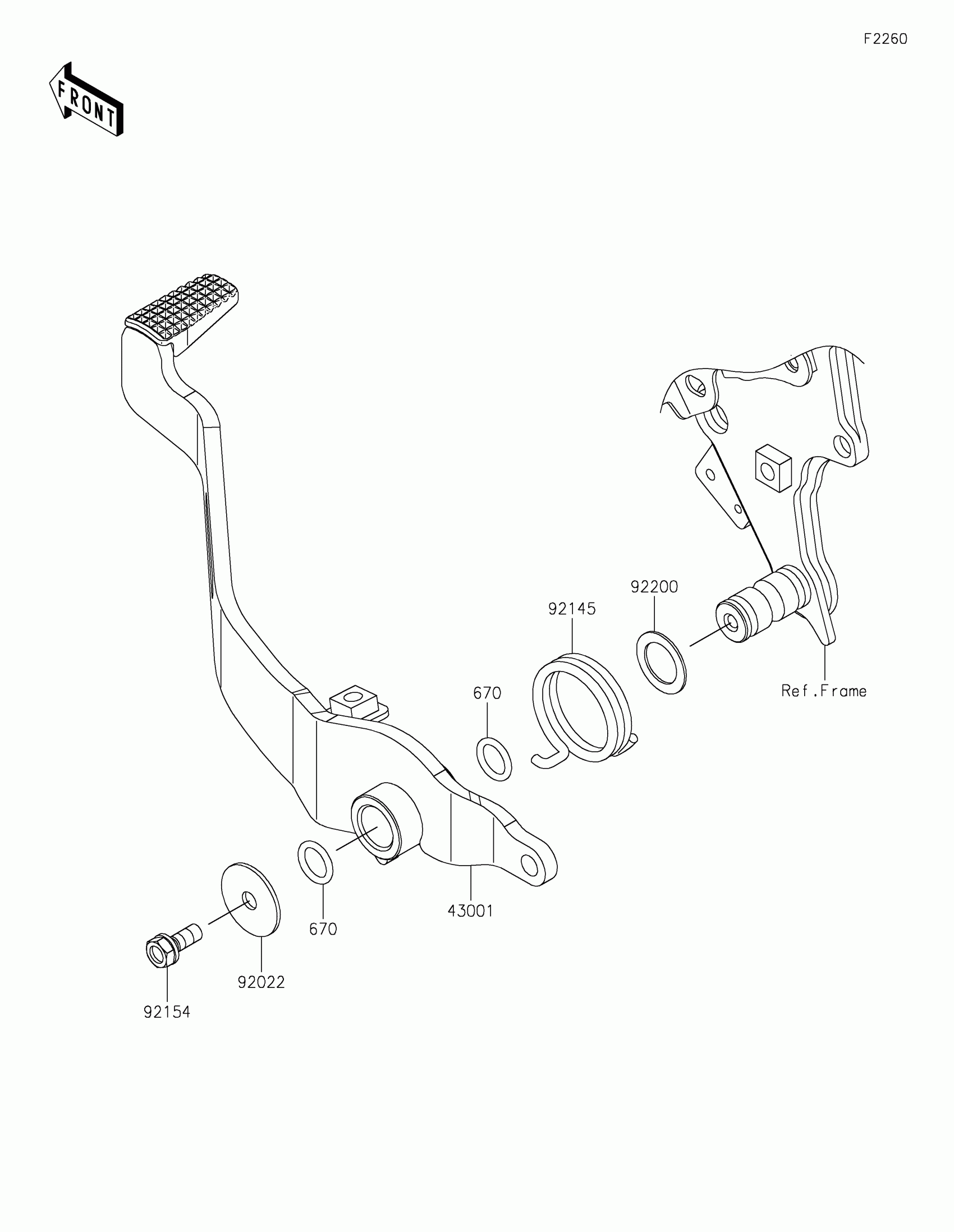

2025 Kawasaki Eliminator ABS Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-0789

1
Out of stock

92022

WASHER,7X28X1.6

92022-1282

1
Out of stock

92145

SPRING,BRAKE PEDAL

92145-2287

1
Out of stock

92154

BOLT,UPSET-WS,6X16

92154-0935

1
Out of stock

92200

WASHER,16.2X24X1

92200-2619

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
