2025 Kawasaki Eliminator ABS Rear Master Cylinder Diagram

← All diagrams

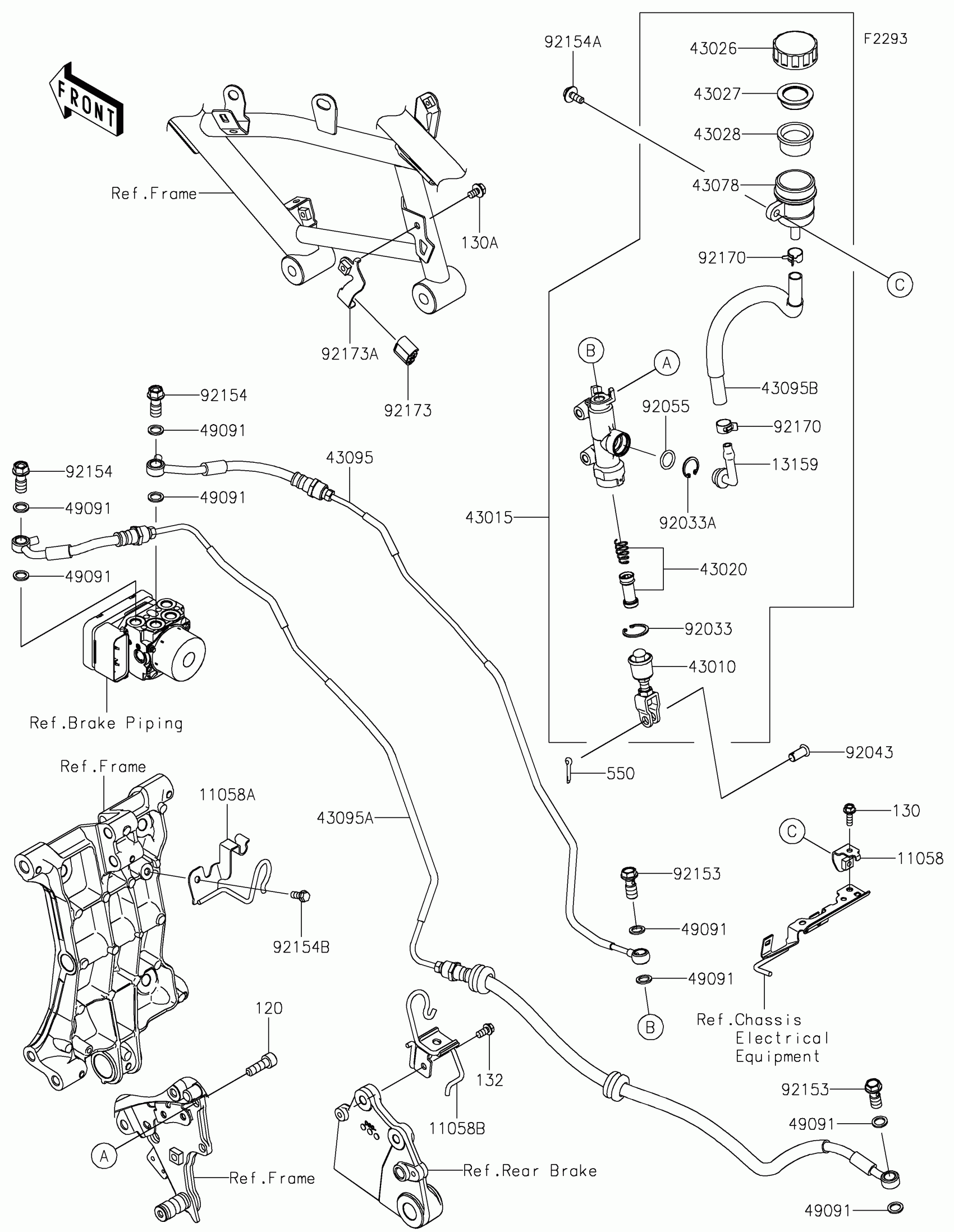

Find the part on the Rear Master Cylinder diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Eliminator ABS Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,RESERVOIR

11058-0497

1
Out of stock

11058A

BRACKET

11058-0498

1
Out of stock

11058B

BRACKET

11058-0500

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0022

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0803

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-0009

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1053

1
Out of stock

43028

DIAPHRAGM

43028-1065

1
Out of stock

43078

RESERVOIR

43078-0040

1
Out of stock

43095

HOSE-BRAKE,ABS-RR M/CYLINDER

43095-1880

1
Out of stock

43095A

HOSE-BRAKE,ABS-RR CALIPER

43095-1881

1
Out of stock

43095B

HOSE-BRAKE

43095-1893

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92043

PIN

92043-0904

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92154

BOLT,BANJO,10X22

92154-1138

1
Out of stock

92154A

BOLT,UPSET-WP,6X16

92154-2244

1
Out of stock

92154B

BOLT,6X14

92154-4129

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92173

CLAMP,METAL PIPE

92173-0986

1
Out of stock

92173A

CLAMP,ABS PIPE

92173-2583

1
Out of stock

120

BOLT-SOCKET,8X25

120CB0825

1
Out of stock

130

BOLT-FLANGED,5X16

130BA0516

1

$0.85

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$1.73

In stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
