2025 Kawasaki Eliminator ABS Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

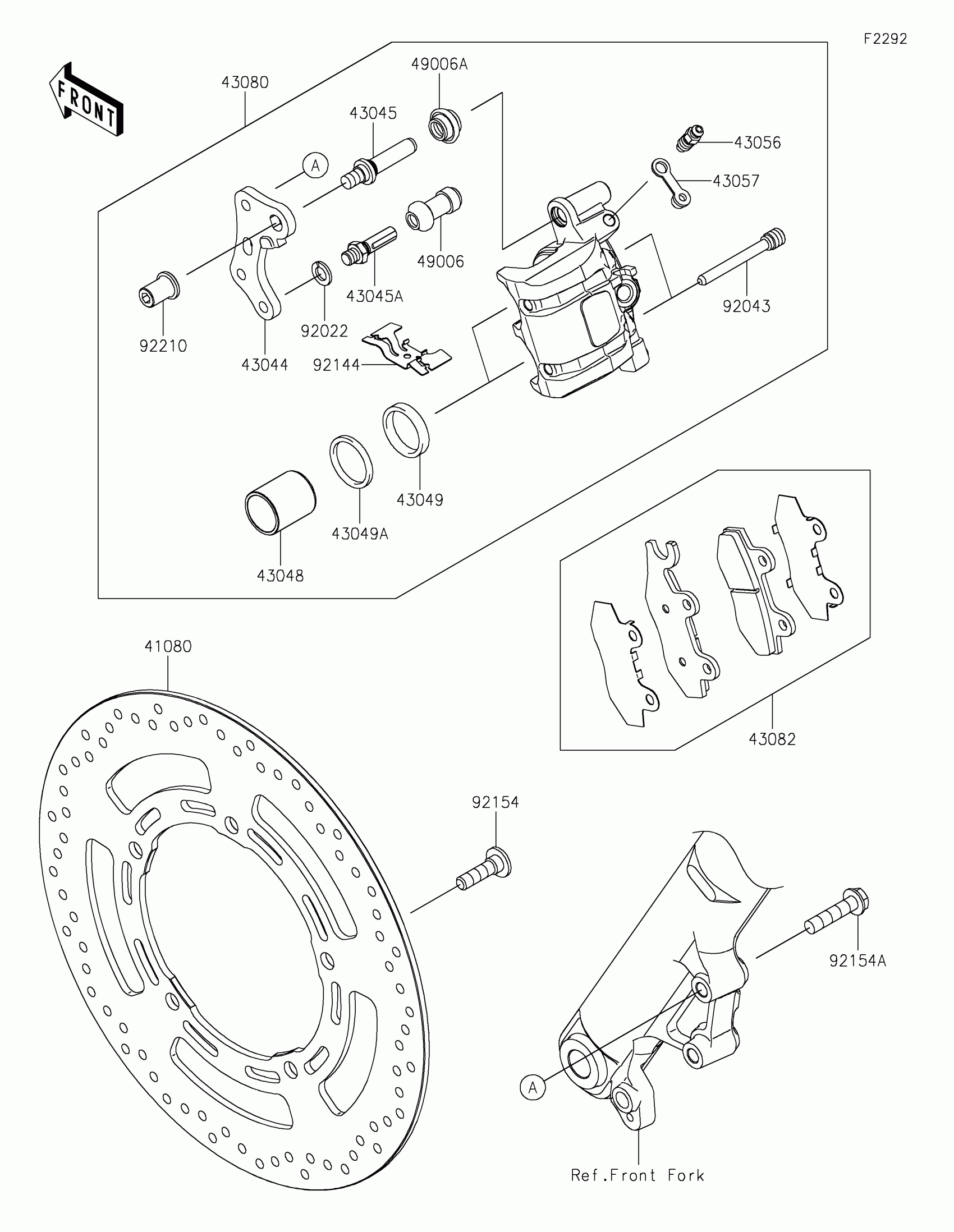

2025 Kawasaki Eliminator ABS Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-0747

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1112

1
Out of stock

43045

SHAFT-CALIPER

43045-0013

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0244-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0215

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

92154A

BOLT,FLANGED,8X35

92154-4406

1
Out of stock

92210

NUT

92210-0615

1
Out of stock
