2025 Kawasaki Eliminator ABS Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

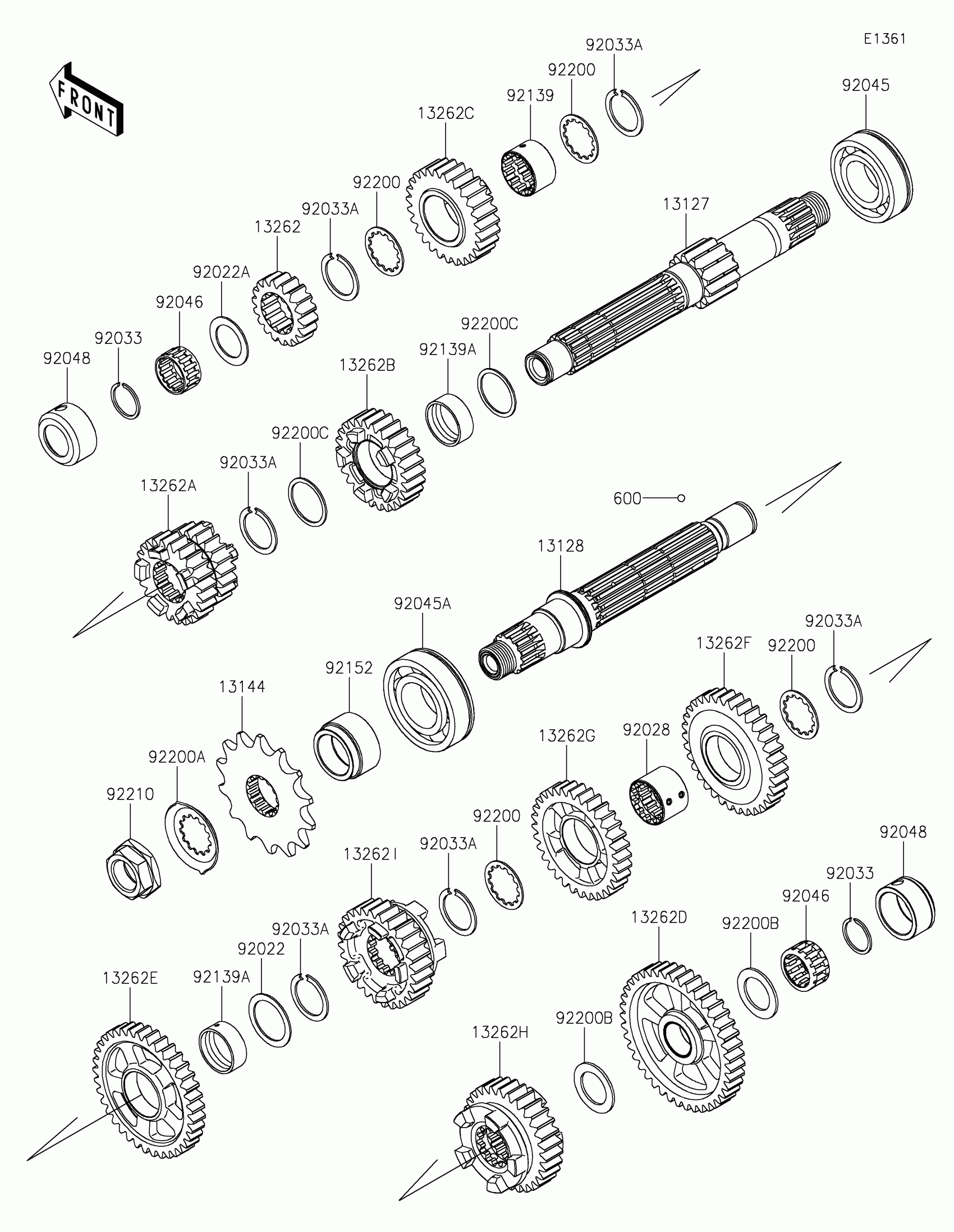

2025 Kawasaki Eliminator ABS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0727

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-0734

1
Out of stock

13144

SPROCKET-OUTPUT,14T

13144-0586

1
Out of stock

13262

GEAR,INPUT 2ND,18T

13262-1288

1
Out of stock

13262A

GEAR,INPUT 3RD&4TH,21T,24T

13262-1591

1
Out of stock

13262B

GEAR,INPUT 5TH,26T

13262-1592

1
Out of stock

13262C

GEAR,INPUT 6TH,27T

13262-1593

1
Out of stock

13262D

GEAR,OUTPUT LOW,41T

13262-1594

1
Out of stock

13262E

GEAR,OUTPUT 2ND,37T

13262-1595

1
Out of stock

13262F

GEAR,OUTPUT 3RD,34T

13262-1596

1
Out of stock

13262G

GEAR,OUTPUT 4TH,32T

13262-1597

1
Out of stock

13262H

GEAR,OUTPUT 5TH,30T

13262-1598

1
Out of stock

13262I

GEAR,OUTPUT 6TH,28T

13262-1599

1
Out of stock

92022

WASHER,25.3X33X1

92022-1109

1
Out of stock

92022A

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1858

1
Out of stock

92033

RING-SNAP,20MM

92033-015

1
Out of stock

92033A

RING-SNAP,24MM

92033-026

1
Out of stock

92045

BEARING-BALL,6TM-6205NX3

92045-0735

1
Out of stock

92045A

BEARING-BALL,28X58X16

92045-0841

1
Out of stock

92046

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

1
Out of stock

92048

RACE

92048-0047

1
Out of stock

92139

BUSHING,26X28X16.6

92139-0781

1
Out of stock

92139A

BUSHING,25X28X10.4

92139-0793

1
Out of stock

92152

COLLAR

92152-2369

1
Out of stock

92200

WASHER

92200-1389

1
Out of stock

92200A

WASHER

92200-1932

1
Out of stock

92200B

WASHER,20.5X31X1.5

92200-2523

1
Out of stock

92200C

WASHER,25.3X30X1

92200-2524

1
Out of stock

92210

NUT,20MM

92210-0850

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock
