2025 Kawasaki Eliminator ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

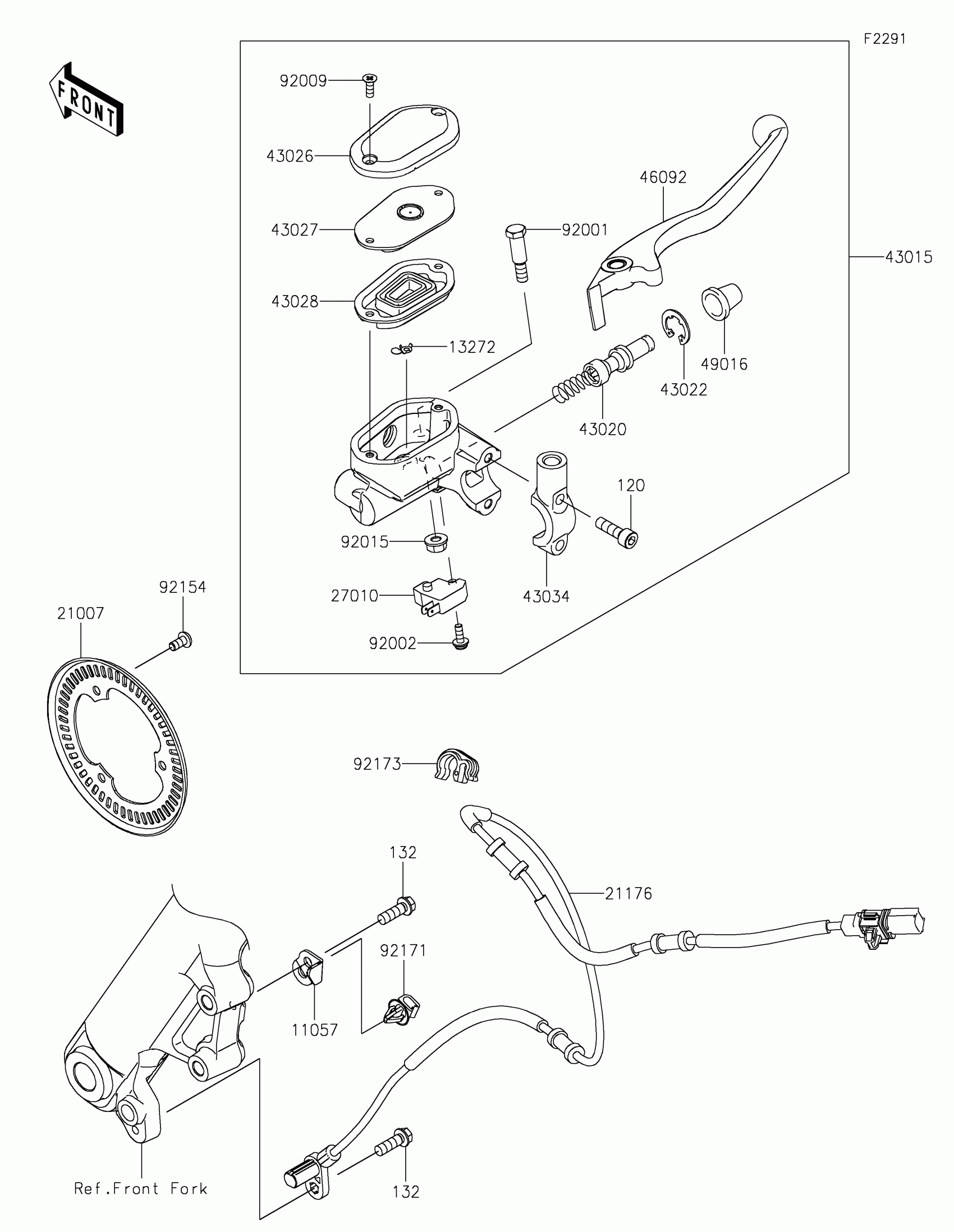

2025 Kawasaki Eliminator ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SENSOR

11057-1099

1
Out of stock

13272

PLATE

13272-0573

1

$7.47

In stock

21007

ROTOR,SENSOR,FR

21007-0671

1
Out of stock

21176

SENSOR,SPEED,FR

21176-1180

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0715

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0022

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0026

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0010

1
Out of stock

43028

DIAPHRAGM

43028-0022

1
Out of stock

43034

HOLDER-BRAKE

43034-0145

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0028

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-7198

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

120

BOLT-SOCKET,6X20

120CB0620

1
Out of stock

132

1

$1.75

In stock
