2025 Kawasaki Eliminator ABS Brake Piping Diagram

← All diagrams

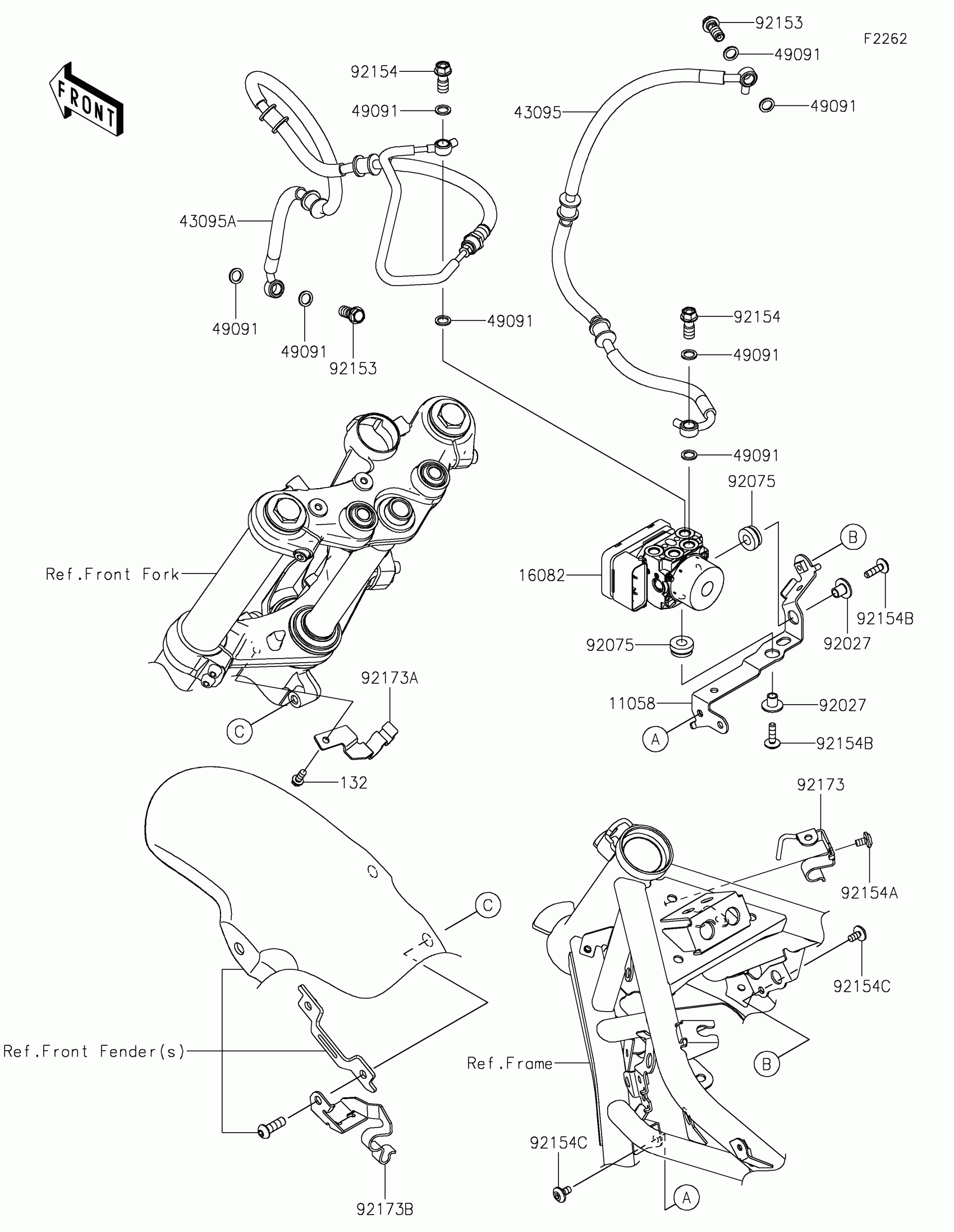

Find the part on the Brake Piping diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Eliminator ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,ABS UNIT

11058-0548

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,WET

16082-0940

1
Out of stock

43095

HOSE-BRAKE,ABS-FR M/CYLINDER

43095-1878

1
Out of stock

43095A

HOSE-BRAKE,ABS-FR CALIPER

43095-1879

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92154

BOLT,BANJO,10X22

92154-1138

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-1693

1
Out of stock

92154B

BOLT,SOCKET,6X22

92154-2302

1
Out of stock

92154C

BOLT,SOCKET,6X12

92154-4310

1
Out of stock

92173

CLAMP,HOSE

92173-2579

1
Out of stock

92173A

CLAMP,UNDER BRACKET

92173-2581

1
Out of stock

92173B

CLAMP,FR FENDER

92173-2718

1
Out of stock

132

1

$2.05

In stock
