1983 Kawasaki Eddie Lawson Replica Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

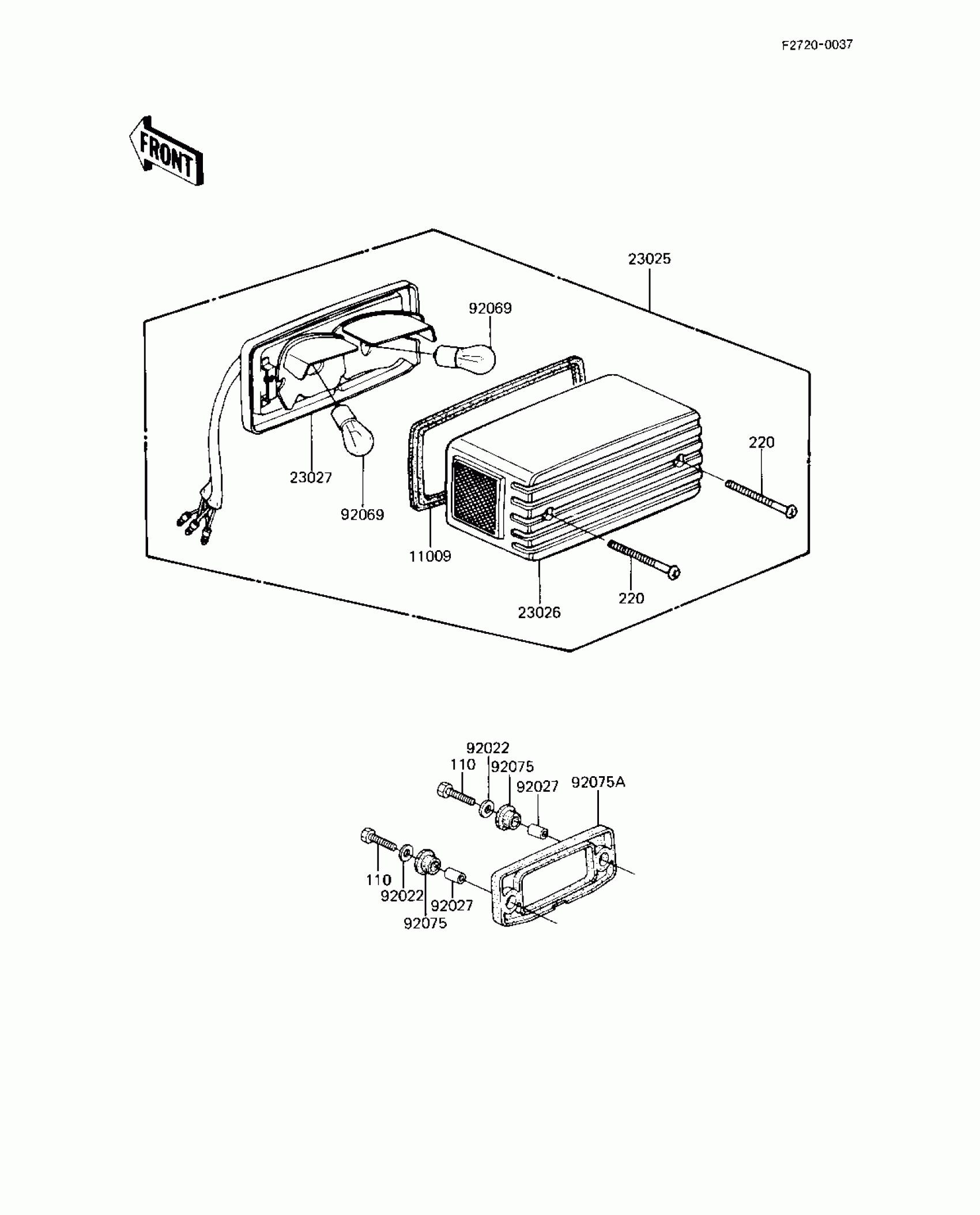

1983 Kawasaki Eddie Lawson Replica Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1221

1
Out of stock

23025

LAMP-TAIL

23025-1025

1
Out of stock

23026

LENS,TAIL LAMP

23026-1021

1
Out of stock

23027

BODY-COMP-TAIL LAMP

23027-1013

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X17.6

92027-1316

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92075

DAMPER RUBBER

92075-1092

1
Out of stock

92075A

DAMPER

92075-1282

1
Out of stock

110

BOLT-UPSET

112G0625

1
Out of stock

220

SCREW-PAN-CROS

220C0465

1
Out of stock
