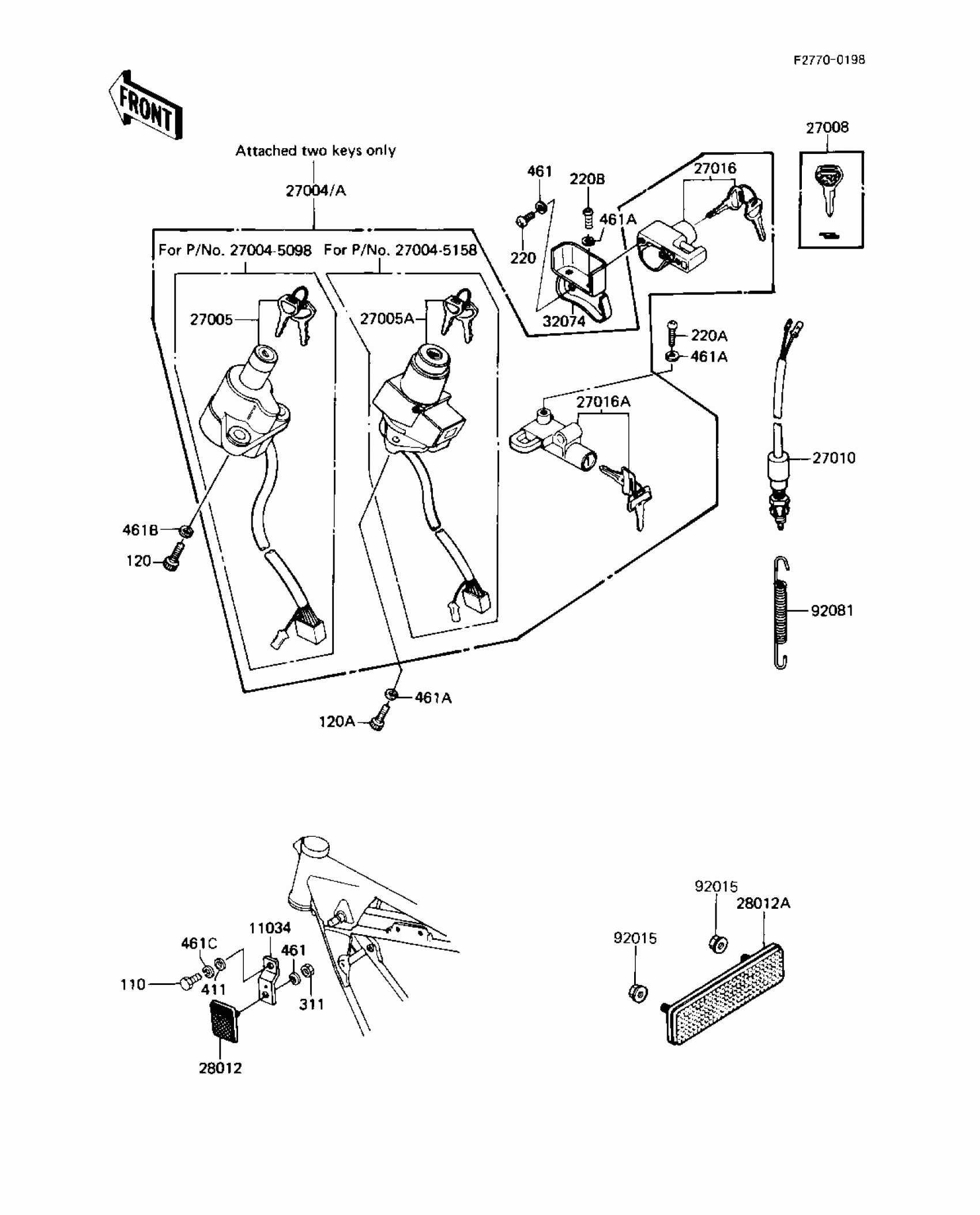

Kawasaki Eddie Lawson Replica IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11034

BRACKET

11034-1929

Unavailable

27004A

SWITCH-ASSY,ALL

27004-5205

$476.08

27005A

SWITCH-ASSY-IGNITION

27005-5035

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27016

LOCK-ASSY,HELMET

27016-5070

Unavailable

27016A

LOCK-ASSY,SEAT

27016-5069

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

32074

BRACKET-LOCK,HELMET L

32074-1024

Unavailable

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92081

SPRING,BRAKE SWITCH

92081-1366

$8.46

110

BOLT, 6X14, BLACK

112C0614

Unavailable

120A

BOLT-SOCKET,6X16

120S0616

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

220A

SCREW PAN HEAD 6X10

220B0610

Unavailable

220B

SCREW PAN HEAD 6X12

220B0612

Unavailable

311

NUT-HEX

311B0500

$0.47

411

WASHER PLAIN

411F0600

$0.95

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable

461C

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable
