1983 Kawasaki Eddie Lawson Replica Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

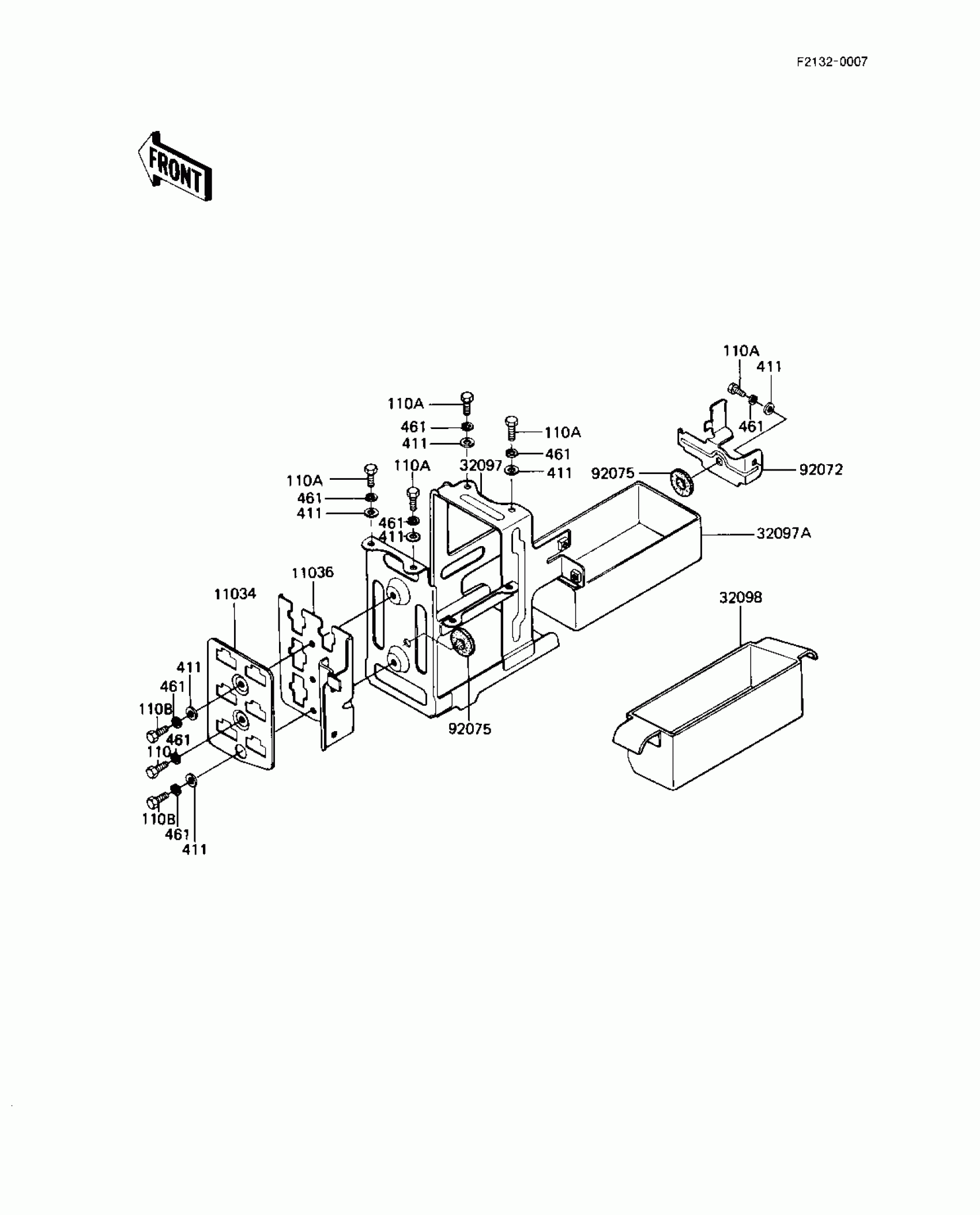

1983 Kawasaki Eddie Lawson Replica Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,COUPLER

11034-1918

1
Out of stock

11036

BRACKET-A,COUPLER

11036-1783

1
Out of stock

32097

CASE-BATTERY

32097-1033

1
Out of stock

32097A

CASE-BATTERY,BOTTOM

32097-1034

1
Out of stock

32098

CASE-TOOL

32098-1014

1
Out of stock

92072

BAND,BATTERY CASE

92072-1213

1
Out of stock

92075

DAMPER,RUBBER

92075-078

1
Out of stock

110

BOLT,6X10

112G0610

1
Out of stock

110A

BOLT-UPSET 6X14

112B0614

1
Out of stock

110B

BOLT 6X22

112B0622

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
