1983 Kawasaki Eddie Lawson Replica Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

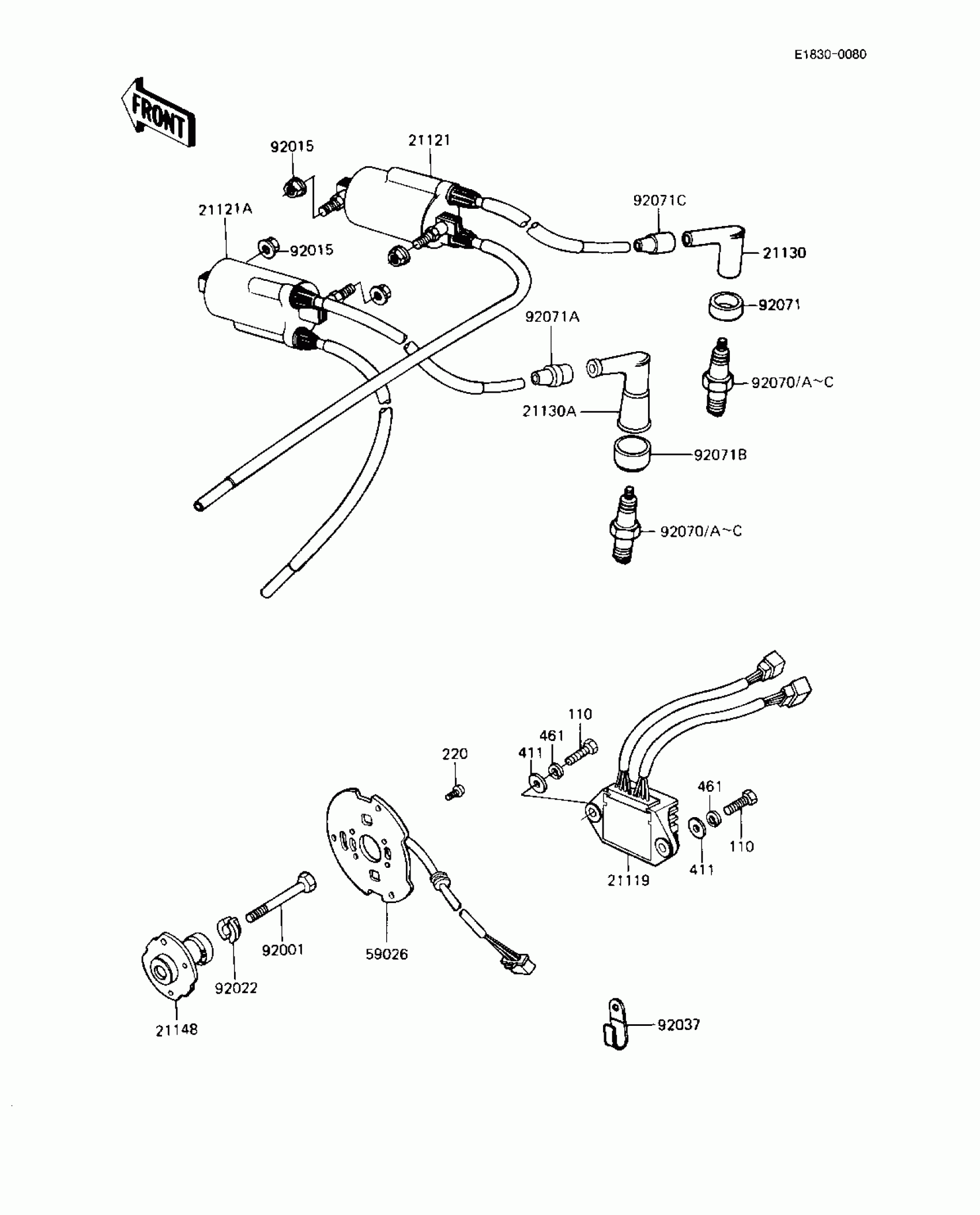

1983 Kawasaki Eddie Lawson Replica Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1041

1
Out of stock

21121

UNAVAILABLE IN PRICE BOOK

21121-1058

1
Out of stock

21121A

COIL-IGNITION,#2&3

21121-1039

1
Out of stock

21130

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

21130A

CAP-SPARK PLUG

21130-1010

1
Out of stock

21148

GOVERNOR-BREAKER

21148-1020

1
Out of stock

59026

COIL-PULSING

59026-1012

1
Out of stock

92001

BOLT,8X63

92001-1397

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

92037

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

92070

SPARK PLUG B8ES

B8ES

1
Out of stock

92070B

SPARK PLUG BR8ES

BR8ES

1
Out of stock

92071

GROMMET,PLUG CAP

21131-004

1
Out of stock

92071A

GROMMET,HIGH TENSION

21131-005

1
Out of stock

92071B

GROMMET,PLUG CAP

21131-006

1
Out of stock

92071C

GROMMET,HIGH TENSION

21132-005

1
Out of stock

110

BOLT-UPSET

112G0618

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
