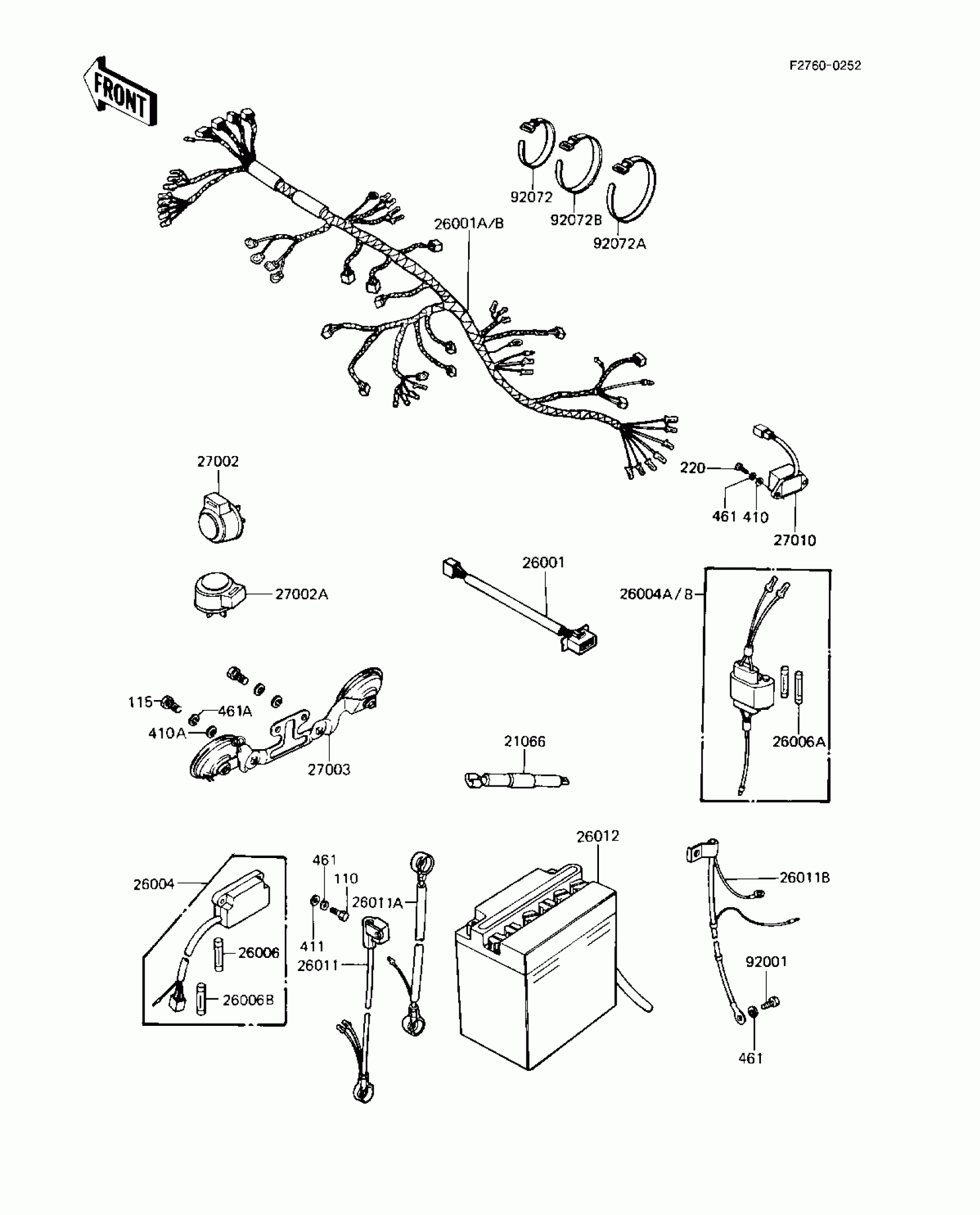

Kawasaki Eddie Lawson Replica CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

26001

HARNESS,RESERVE LIGHT

26001-1248

$13.22

26001B

HARNESS,MAIN

26001-1510

$244.07

26004

FUSE-ASSY

26004-1011

$97.73

26004B

FUSE-ASSY,ACCESSORY

26004-1016

Unavailable

26006

FUSE,10A,L=25

26006-003

$3.59

26006A

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006B

FUSE,30A,L=25

26006-1005

Unavailable

26011A

WIRE-LEAD,BATTERY,(+)

26011-1120

$40.78

26011B

WIRE-LEAD,BATTERY,(-)

26011-1124

$40.78

26012

YUA BAT YB18L-A

26012-1039

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

27002A

RELAY,TURN SIGNAL

27002-016

Unavailable

27003

HORN,DOUBLE

27003-1143

Unavailable

27010

SWITCH,RESERVE LIGHTI

27010-1024

Unavailable

92001

BOLT,6X10

92001-137

$5.66

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=218

92072-032

$3.81

92072B

BAND,L=186

92072-056

$3.81

110

BOLT 6X22

112B0622

Unavailable

115

BOLT-SMALL,8X16,BLACK

115C0816

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER,PLAIN,8MM

92022-1554

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable
