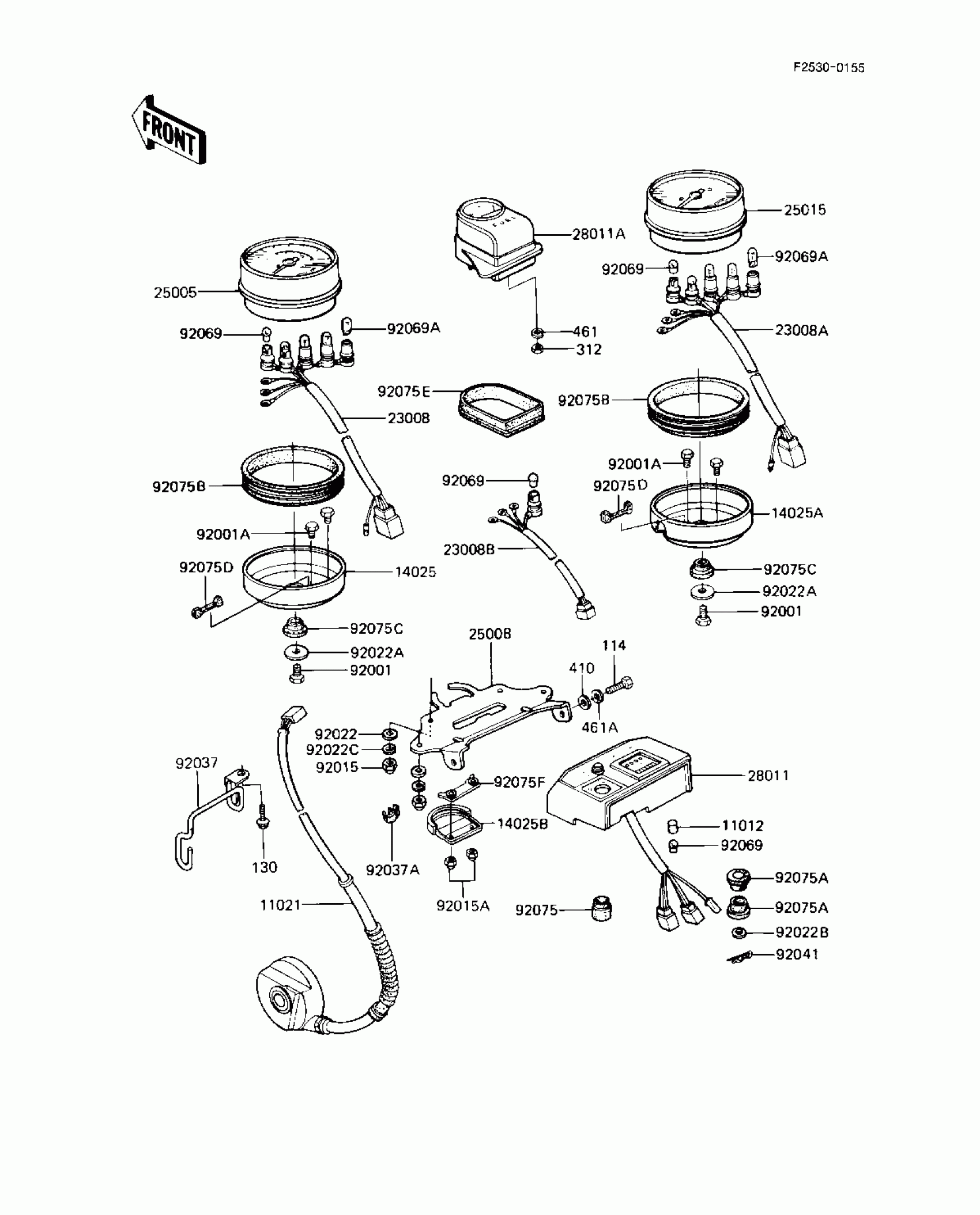

Kawasaki Eddie Lawson Replica METERS (KZ1000-R1) Diagram

#

Description
Price

11012

CAP,BULB,GREEN

11012-1172

Unavailable

11021

CASE-ASSY

11021-1011

Unavailable

14025

COVER,SPEEDOMETER

14025-1344

Unavailable

14025A

COVER,TACHOMETER

14025-1345

Unavailable

14025B

COVER,FUEL METER

14025-1347

Unavailable

23008

SOCKET-ASSY,SPEEDOMET

23008-1090

$98.20

23008A

SOCKET-ASSY,TACHOMETE

23008-1091

$89.66

23008B

SOCKET-ASSY,FUEL METE

23008-1092

$46.05

25005

SPEEDOMETER,MPH

25005-1106

$805.65

25008

BRACKET-METER

25008-1034

Unavailable

25015

TACHOMETER

25015-1082

$527.00

28011

METER,TOTAL & TRIP

28011-1011

$583.50

28011A

METER,FUEL

28011-1025

Unavailable

92001

BOLT,6X8

92001-1442

Unavailable

92001A

BOLT,HEX HEAD,6X14

92003-204

$3.49

92015

NUT-CAP,6MM,BLACK

322C0600

Unavailable

92015A

NUT,CAP,4MM

92015-1144

Unavailable

92022

WASHER PLAIN

411F0600

$0.95

92022A

WASHER,6.5X26X1,BLACK

92022-1248

$5.71

92022B

WASHER,5.2X16X1.2

92022-263

$1.22

92022C

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable

92037

CLAMP,HOSE

92037-1249

Unavailable

92037A

CLAMP,CALIPER HOLDER

92037-1358

$10.39

92041

PIN,COTER

92041-006

Unavailable

92069

BULB 12V 1.5W

92069-017

$4.34

92069A

BULB,12V 3.4W,T10

92069-1007

$3.81

92075

DAMPER,TRIP METER

92075-1286

$9.29

92075A

DAMPER,TRIP METER

92075-1300

Unavailable

92075B

DAMPER,METER

92075-1315

Unavailable

92075C

DAMPER

92075-1316

Unavailable

92075D

DAMPER

92075-1317

$9.20

92075E

DAMPER,FUEL METER

92075-1318

Unavailable

92075F

DAMPER

92075-1319

Unavailable

114

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

130

BOLT-FLANGED,6X8

130B0608

Unavailable

312

NUT-HEX

312B0300A

$2.25

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 3MM

461F0300

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
