1979 Yamaha EC540C Speedometer EC540C Diagram

← All diagrams

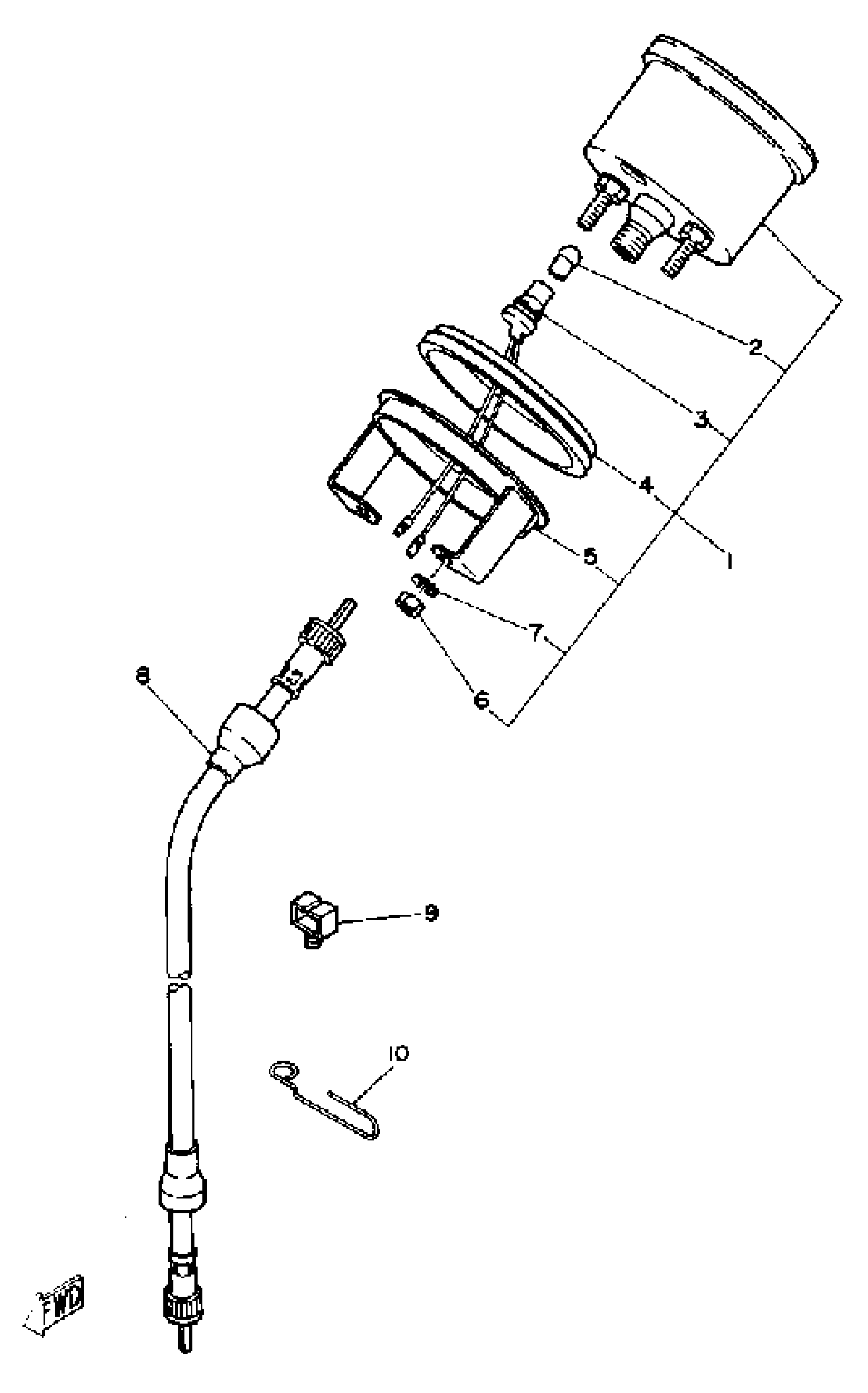

Find the part on the Speedometer EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Speedometer EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(8H8-83510-20-00)

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

5

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SPEEDOMETER CABLE

8H8-83550-00-00

1
Out of stock

9

CLAMP (1A0)

90464-08020-00

1

$9.12

In stock

10

CLAMP

90465-20145-00

1
Out of stock
