Find the part on the SKI EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

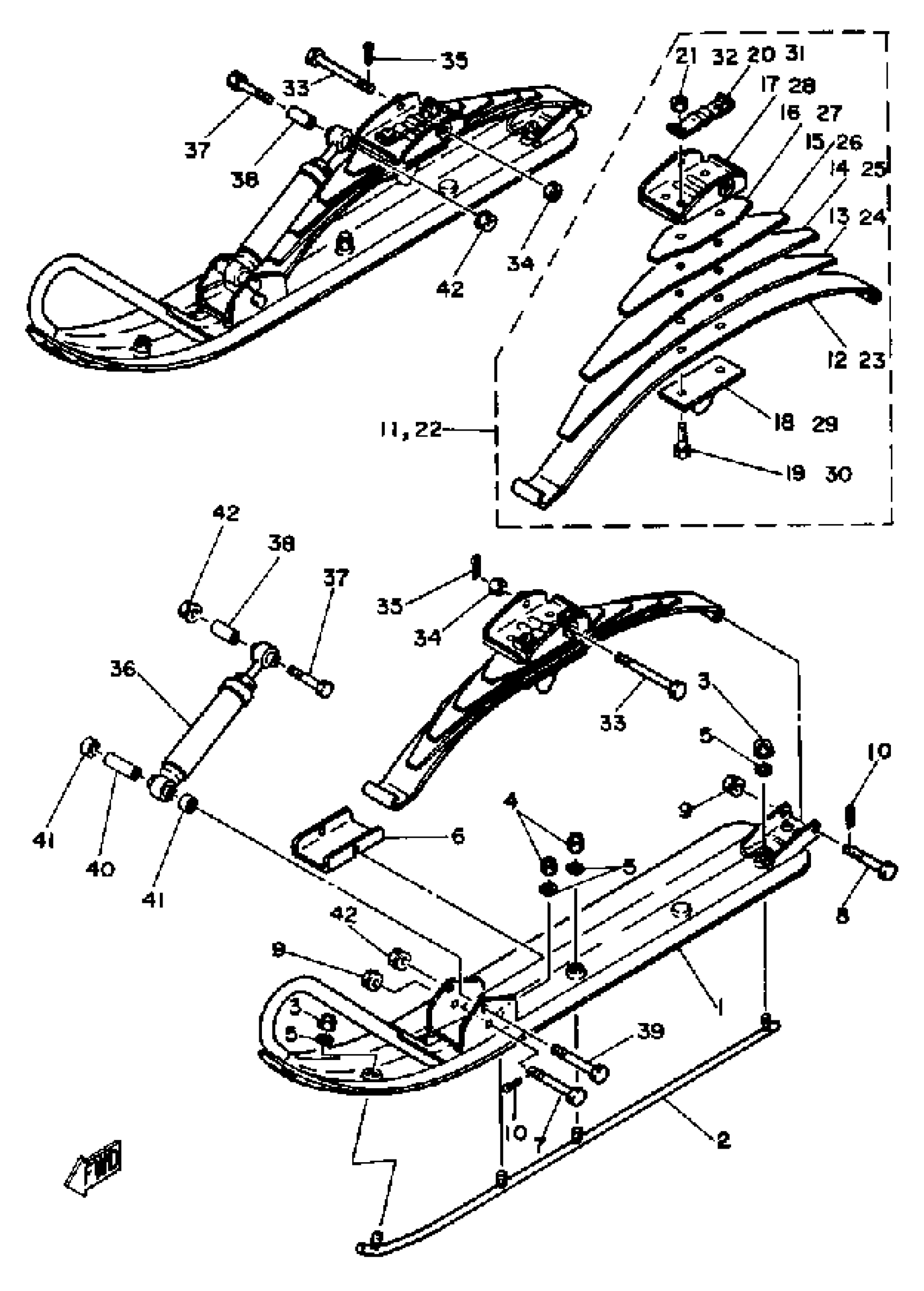

1979 Yamaha EC540C SKI EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

7

1

$8.14

In stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

SPRING ASSEMBLY 1

(8K1-23760-00-00)

1
Out of stock

12

. LEAF 1

863-23761-00-00

1
Out of stock

13

. LEAF 2

863-23762-00-00

1
Out of stock

14

. LEAF 3

863-23763-00-00

1
Out of stock

15

. LEAF 4

863-23764-00-00

1
Out of stock

16

. LEAF 5

863-23771-00-00

1
Out of stock

17

SADDLE

8G6-23766-00-00

—

$32.37

In stock

18

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

19

BOLT

90109-105E9-00

1
Out of stock

20

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

21

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

22

SPRING ASSEMBLY 2

(8K1-23770-00-00)

1
Out of stock

23

. LEAF 1

863-23761-00-00

1
Out of stock

24

. LEAF 2

863-23762-00-00

1
Out of stock

25

. LEAF 3

863-23763-00-00

1
Out of stock

26

. LEAF 4

863-23764-00-00

1
Out of stock

27

. LEAF 5

863-23771-00-00

1
Out of stock

28

SADDLE

8G6-23766-00-00

—

$32.37

In stock

29

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

30

BOLT

90109-105E9-00

1
Out of stock

31

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

32

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

33

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

34

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

SHOCK ABSORBER ASSEMBLYASSY

8J7-23350-00-00

1
Out of stock

37

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

38

COLLAR (878)

90387-08262-00

—

$9.02

In stock

39

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

40

COLLAR (864)

90387-08224-00

—

$7.52

In stock

41

COLLAR

90387-12484-00

1
Out of stock

42

NUT, NYLON

95717-08300-00

1

$2.57

In stock
