1979 Yamaha EC540C SKI EC540C Diagram

← All diagrams

Find the part on the SKI EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

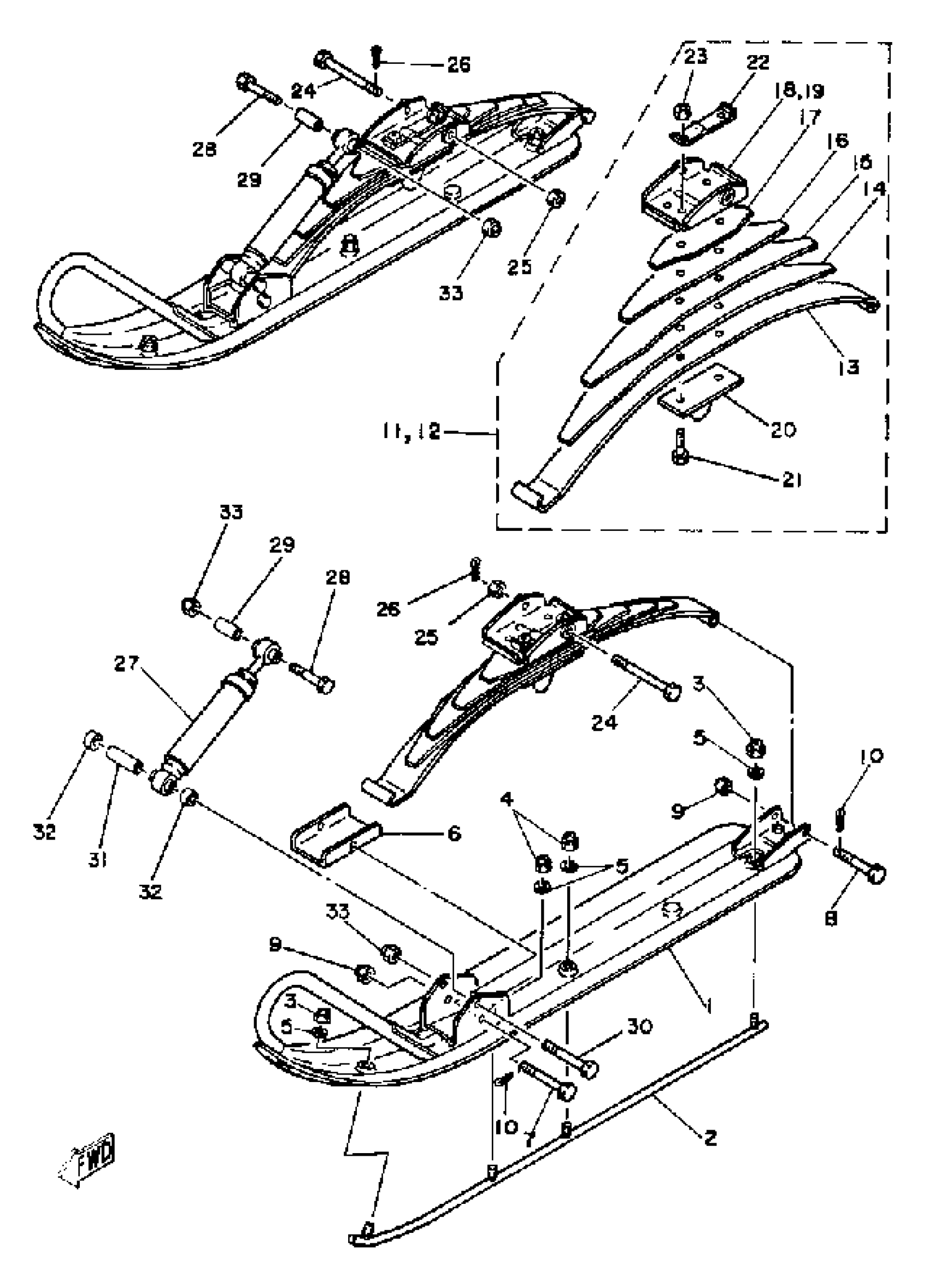

1979 Yamaha EC540C SKI EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

7

1

$8.14

In stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

SPRING ASSEMBLY 1

(8H8-23760-00-00)

1
Out of stock

12

SPRING ASSEMBLY 2

8H8-23770-00-00

1
Out of stock

13

. LEAF 1

863-23761-00-00

1
Out of stock

14

. LEAF 2

863-23762-00-00

1
Out of stock

15

. LEAF 3

863-23763-00-00

1
Out of stock

16

. LEAF 4

863-23764-00-00

1
Out of stock

17

. LEAF 5

863-23771-00-00

1
Out of stock

18

SADDLE 1

(8H8-23766-00-00)

1
Out of stock

19

. SADDLE 2

8H8-23776-00-00

1
Out of stock

20

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

21

. BOLT

90101-10060-00

1
Out of stock

22

. WASHER, LOCK

90215-10150-00

1
Out of stock

23

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

24

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

25

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

26

PIN, COTTER

91490-30030-00

—

$7.15

In stock

27

SHOCK ABSORBER ASSEMBLYASSY

8J7-23350-00-00

1
Out of stock

28

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

29

COLLAR (878)

90387-08262-00

—

$9.02

In stock

30

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

31

COLLAR (864)

90387-08224-00

—

$7.52

In stock

32

COLLAR

90387-12484-00

1
Out of stock

33

NUT, NYLON

95717-08300-00

1

$2.57

In stock
