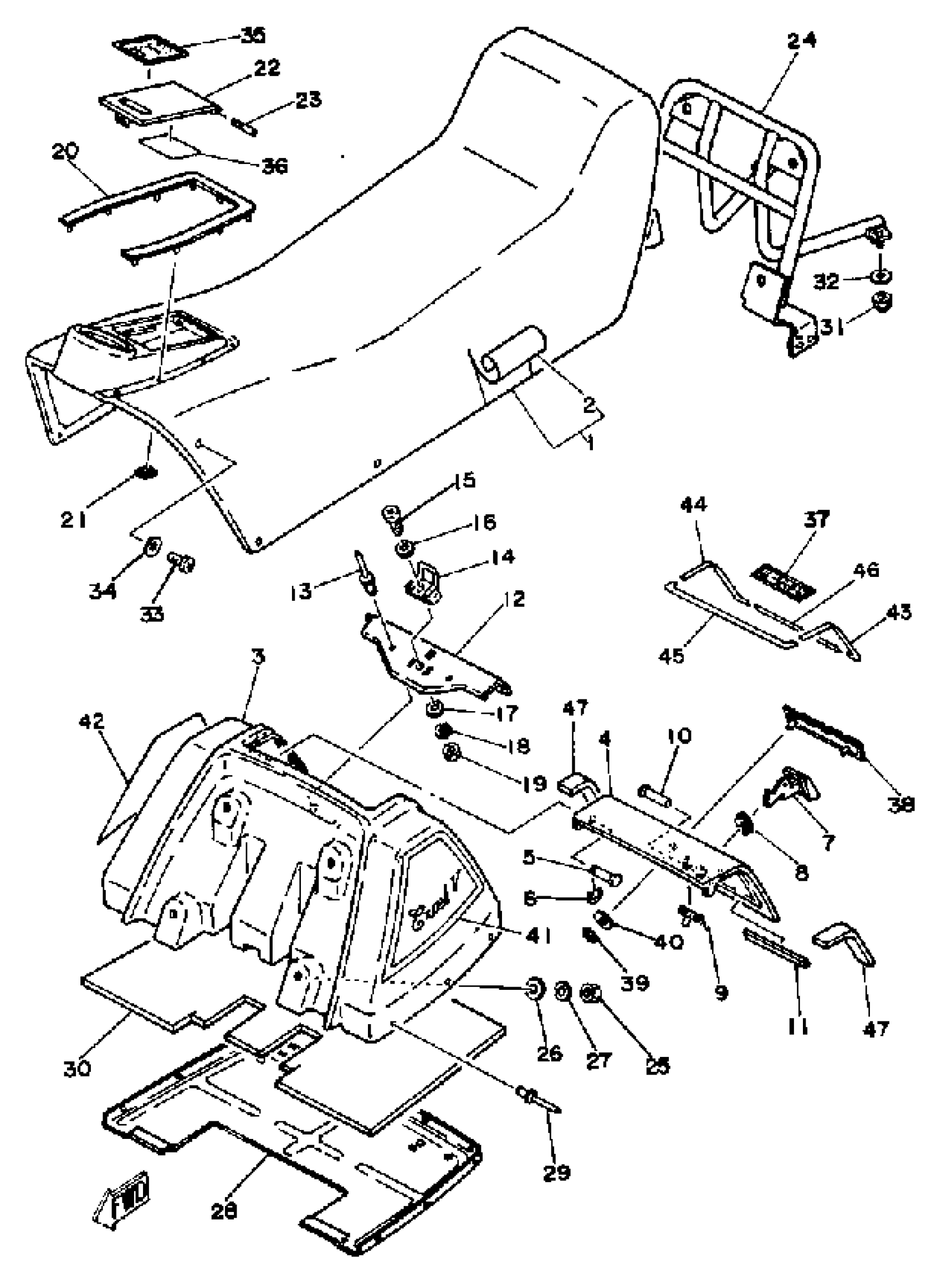

Find the part on the Seat EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Seat EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SM-DBL SEAT

8H8-24771-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

8H8-24731-00-00

1
Out of stock

3

LUGGAGE BOX

8H8-77391-00-00

1
Out of stock

4

COVER, LUGGAGE BOX

8H8-77392-00-00

1
Out of stock

5

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

6

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

7

LEVER, ARM FITTING

8H8-77328-00-00

1
Out of stock

8

GROMMET

90480-01252-00

1
Out of stock

9

SPRING,TORSION

90508-104A1-00

1
Out of stock

10

PIN

90243-04004-00

1
Out of stock

11

DAMPER 1

8H8-77319-00-00

1
Out of stock

12

STAY 1

8H8-77397-00-00

1
Out of stock

13

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

14

HOOK 1

8H8-77386-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

PLATE

(8H8-24732-00-00)

1
Out of stock

21

NUT, SPRING (1L9)

90183-04012-00

—
Out of stock

22

LID, DOUBLE SEAT

(8H8-24765-00-00)

1
Out of stock

23

PIN

8H6-77384-00-00

1
Out of stock

24

STAY, REAR

8H8-24716-00-00

1
Out of stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

SHEET, LUGGAGE BOX

(8H8-77394-00-00)

1
Out of stock

29

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

30

DAMPER, SEAT

8H8-24737-00-00

1
Out of stock

31

NUT, NYLON

95717-08300-00

—

$2.57

In stock

32

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

33

SCREW, BINDING

90154-06003-00

1
Out of stock

34

WASHER, PLATE(36Y)

90201-063J2-00

—

$4.45

In stock

35

LABEL, WARNING 1

(8H8-77761-00-00)

1
Out of stock

36

LABEL, WARNING 3

8H8-77763-00-00

1
Out of stock

37

LABEL, WARNING 4

8H8-77764-00-00

1
Out of stock

38

EMBLEM 1

8H8-77141-00-00

1
Out of stock

39

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

40

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

41

STRIPE 6

(8H8-77286-00-00)

1
Out of stock

42

STRIPE 7

(8H8-77287-00-00)

1
Out of stock

43

STRIPE 8

(8H8-77288-00-00)

1
Out of stock

44

STRIPE 9

(8H8-77289-00-00)

1
Out of stock

45

STRIPE 10

(8H8-77291-00-00)

1
Out of stock

46

STRIPE 11

(8H8-77292-00-00)

1
Out of stock

47

DAMPER 3

8H8-77375-00-00

1
Out of stock
