1979 Yamaha EC540C Frame EC540C Diagram

← All diagrams

Find the part on the Frame EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

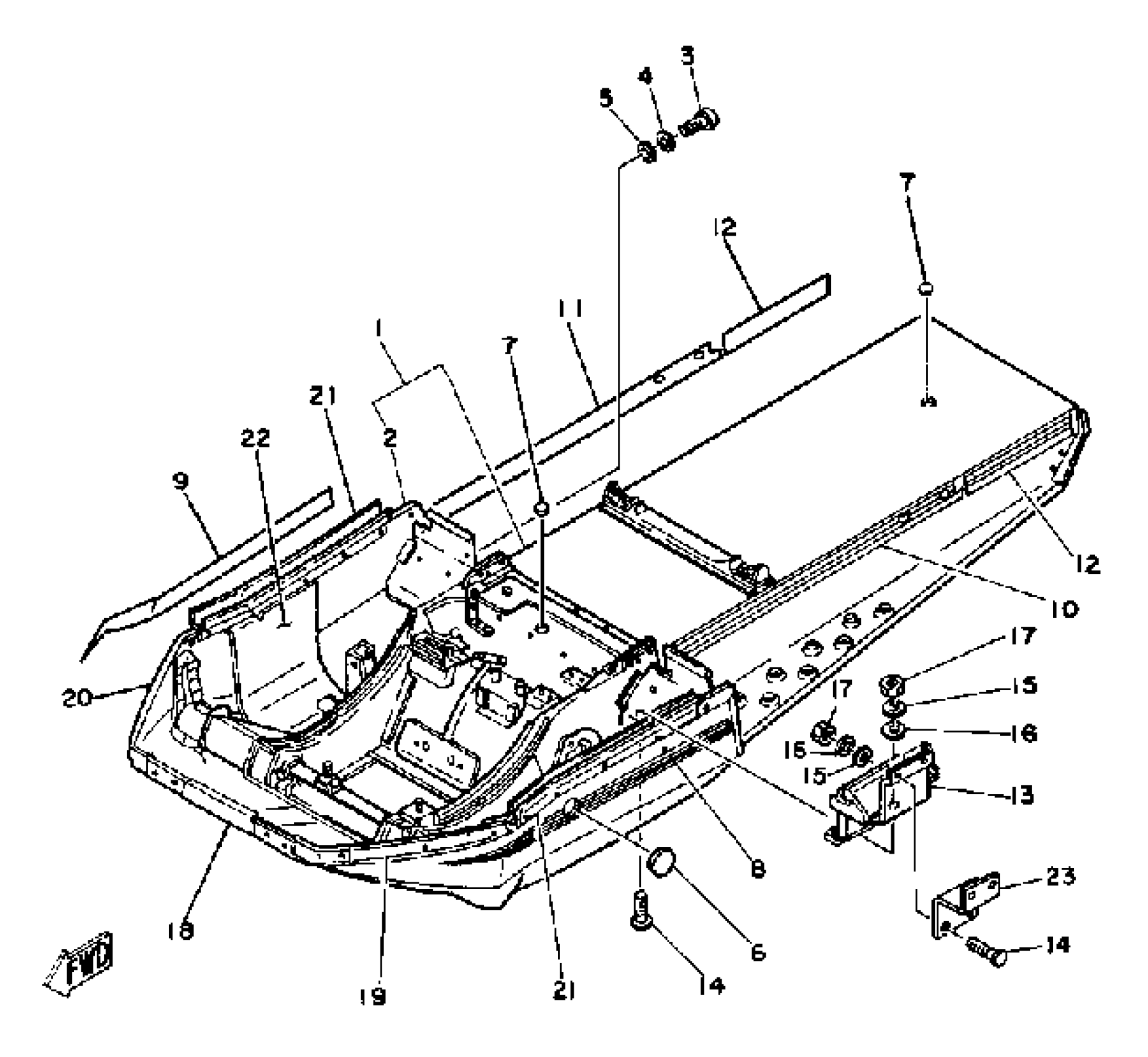

1979 Yamaha EC540C Frame EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8H8-21910-00-00)

1
Out of stock

2

PANEL, SUB FRAME 1

(8H8-21912-00-00)

1
Out of stock

3

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

PLUG (8H8)

90338-44093-00

1

$13.91

In stock

7

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

8

EMBLEM 1

(8H8-77351-00-00)

1
Out of stock

9

EMBLEM 2

(8H8-77352-00-00)

1
Out of stock

10

EMBLEM 3

(8H8-77353-00-00)

1
Out of stock

11

EMBLEM 4

(8H8-77354-00-00)

1
Out of stock

12

EMBLEM 5

(8H8-77355-00-00)

1
Out of stock

13

BRACKET, BATTERY

(8H8-2199G-00-00)

1
Out of stock

14

SCREW(3JM)

90149-06306-00

1

$2.80

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

RNFCMNT, FRAME 1

8H8-21986-00-00

1
Out of stock

19

RNFCMNT, FRAME 2

(8H8-21987-00-00)

1
Out of stock

20

RNFCMNT, FRAME 3

(8H8-2198E-00-00)

1
Out of stock

21

BUSH, RUBBER 1

(8H8-77515-00-00)

1
Out of stock

22

SHIELD, HEAT

(8H8-2199H-00-00)

1
Out of stock

23

RNFCMNT, FRAME SIDE

(8H8-21929-00-00)

1
Out of stock
