1979 Yamaha EC540C Seat EC540D Diagram

← All diagrams

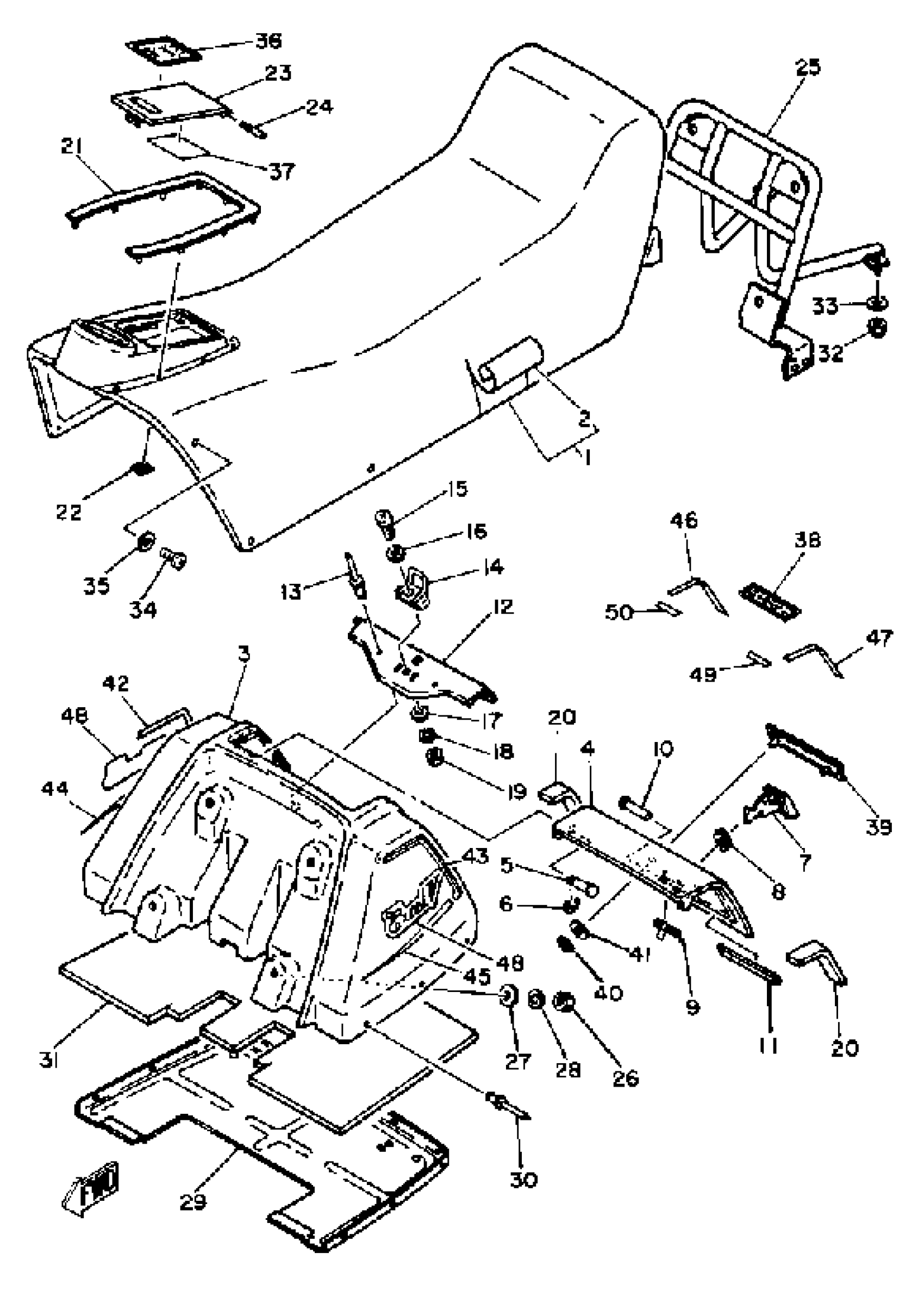

Find the part on the Seat EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Seat EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SM-DBL SEAT

8H8-24771-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

8H8-24731-00-00

1
Out of stock

3

LUGGAGE BOX

8K1-77391-00-00

1
Out of stock

4

COVER, LUGGAGE BOX

8K1-77392-00-00

1
Out of stock

5

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

6

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

7

LEVER, ARM FITTING

8K1-77328-00-00

1
Out of stock

8

GROMMET

90480-01252-00

1
Out of stock

9

SPRING,TORSION

90508-104A1-00

1
Out of stock

10

PIN

90243-04004-00

1
Out of stock

11

DAMPER 1

8H8-77319-00-00

1
Out of stock

12

STAY 1

8H8-77397-00-00

1
Out of stock

13

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

14

HOOK 1

8H8-77386-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

DAMPER 3

8H8-77375-00-00

1
Out of stock

21

PLATE

(8H8-24732-00-00)

1
Out of stock

22

NUT, SPRING (1L9)

90183-04012-00

—
Out of stock

23

LID, DOUBLE SEAT

(8H8-24765-00-00)

1
Out of stock

24

PIN

8H6-77384-00-00

1
Out of stock

25

STAY, REAR

8H8-24716-00-00

1
Out of stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

WASHER, PLATE (33N)

90201-094G1-00

—

$6.98

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

SHEET, LUGGAGE BOX

(8H8-77394-00-00)

1
Out of stock

30

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

31

DAMPER, SEAT

(8K1-24737-00-00)

1
Out of stock

32

NUT, NYLON

95717-08300-00

—

$2.57

In stock

33

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

34

SCREW, BINDING

90154-06003-00

1
Out of stock

35

WASHER, PLATE(36Y)

90201-063J2-00

—

$4.45

In stock

36

LABEL, WARNING 1

(8H8-77761-00-00)

1
Out of stock

37

LABEL, WARNING 3

8H8-77763-00-00

1
Out of stock

38

LABEL, WARNING 4

8H8-77764-00-00

1
Out of stock

39

EMBLEM 1

8H8-77141-00-00

1
Out of stock

40

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

41

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

42

STRIPE 6

8K1-77286-00-00

1
Out of stock

43

STRIPE 7

8K1-77287-00-00

1
Out of stock

44

STRIPE 8

8K1-77288-00-00

1
Out of stock

45

STRIPE 9

8K1-77289-00-00

1
Out of stock

46

STRIPE 10

8K1-77291-00-00

1
Out of stock

47

STRIPE 11

8K1-77292-00-00

1
Out of stock

48

GRAPHIC, TAIL COVER

(8K1-24757-00-00)

1
Out of stock

49

STRIPE 12

8K1-77293-00-00

1
Out of stock

50

STRIPE 13

8K1-77294-00-00

1
Out of stock
