1969 Yamaha DS6C (DS6C) D - C - Generator Diagram

← All diagrams

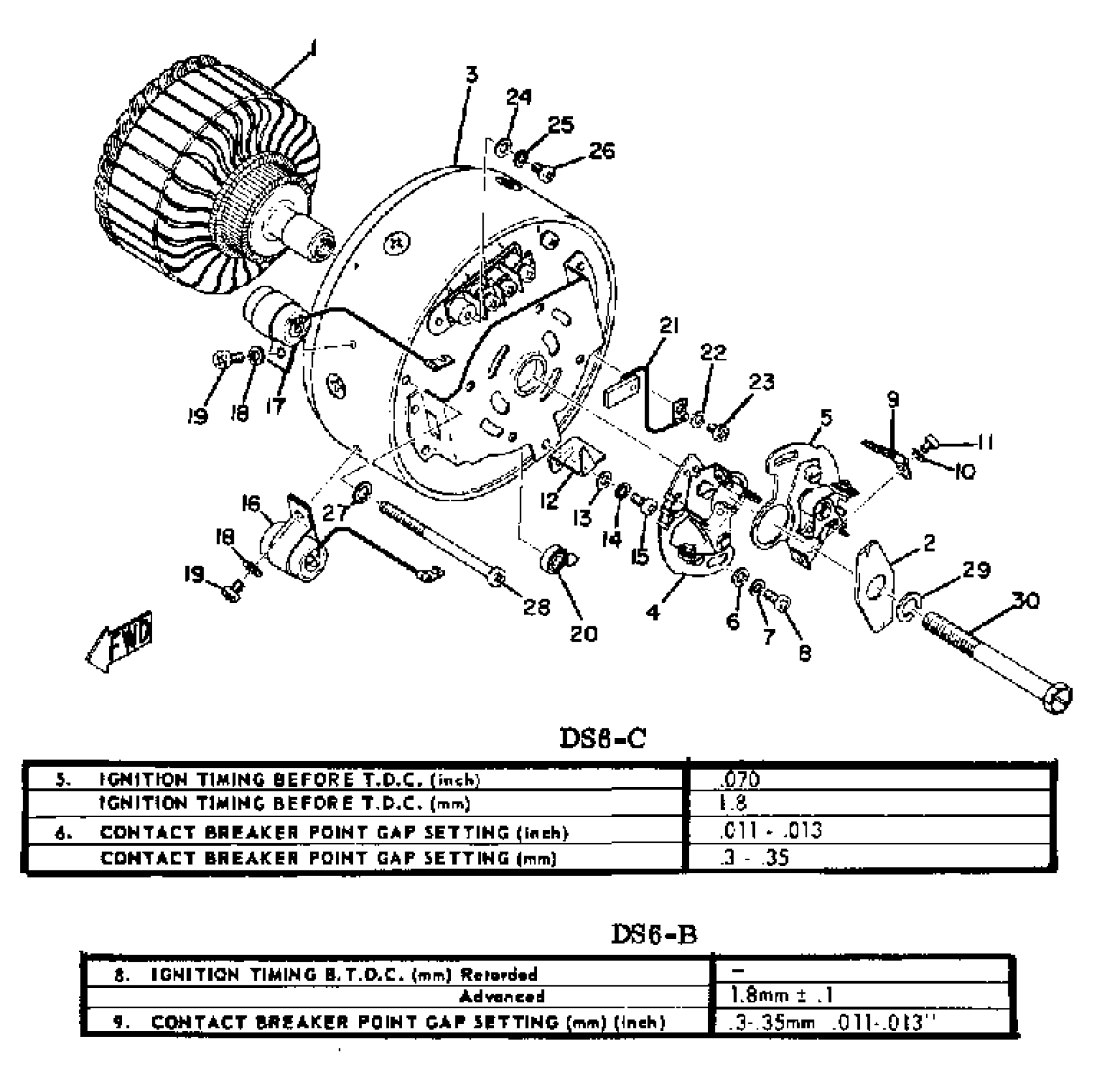

Find the part on the D - C - Generator diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) D - C - Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DC GENERATOR ASSEMBLY

(246-81200-20-00)

1
Out of stock

1

ARMATURE

(246-81255-20-00)

1
Out of stock

2

PLATE, CAM

(246-81254-20-00)

1
Out of stock

3

STATOR ASSEMBLY

(246-81210-20-00)

1
Out of stock

4

CONTACT BRKR ASSEMBLY

(169-81121-22-00)

1
Out of stock

5

CONTACT BRKR ASSEMBLY 2

(169-81122-22-00)

1
Out of stock

6

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

LUBRICATOR

(168-81231-20-00)

1
Out of stock

10

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

11

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

12

PLATE, TIMING

(170-81232-20-00)

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

16

CONDENSER 2

169-81126-21-00

1
Out of stock

17

.. CONDENSER 1

170-81225-20-00

1
Out of stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

19

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

20

SPRING, BRUSH

(131-81213-20-00)

1
Out of stock

21

.. BRUSH

131-81211-20-00

1
Out of stock

22

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

23

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

24

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

26

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

BOLT

(168-81252-21-00)

1
Out of stock
