1969 Yamaha DS6C (DS6C) Electrical Diagram

← All diagrams

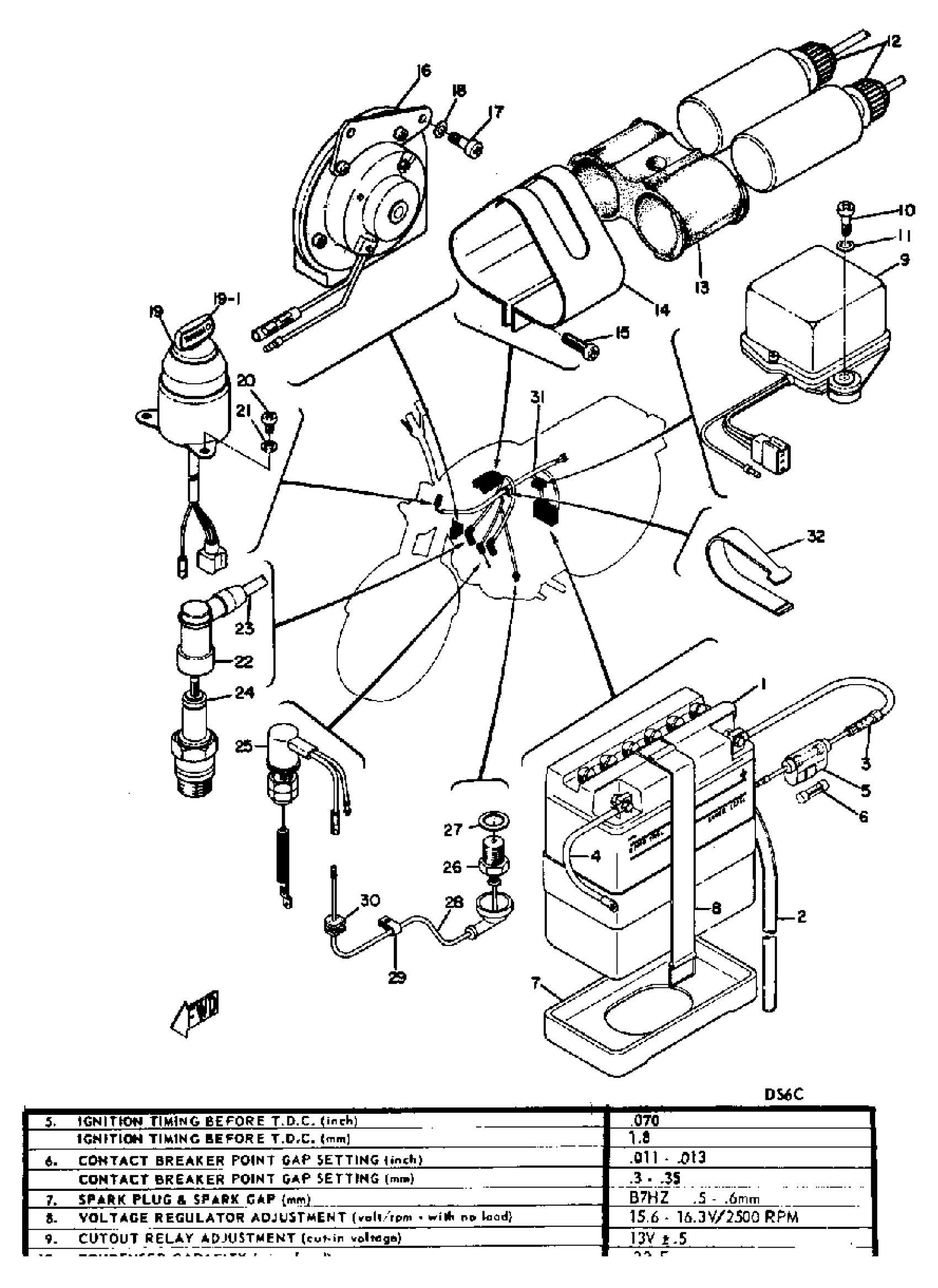

Find the part on the Electrical diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, BATTERY

(131-82111-70-00)

1
Out of stock

1

12N53B YUASA BATTERY

12N-53BY0-00-00

1
Out of stock

2

PIPE, BREATHER

(170-82112-00-00)

1
Out of stock

3

WIRE, PLUS LEAD

(170-82115-00-00)

1
Out of stock

4

WIRE, MINUS LEAD

(170-82116-00-00)

1
Out of stock

5

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

6

FUSE

1A0-82161-00-00

1
Out of stock

7

SEAT, BATTERY

(235-82122-00-00)

1
Out of stock

8

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

9

VOLTAGE REG ASSEMBLY

(168-81910-20-00)

1
Out of stock

10

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

IGNITION COIL ASSEMBLY

168-82310-70-00

1
Out of stock

13

HOLDER, COIL FTNG

(168-82312-00-00)

1
Out of stock

14

BAND, COIL FITTING

(168-82311-00-00)

1
Out of stock

15

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

16

HORN

(168-83371-20-00)

1
Out of stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

MAIN SWITCH ASSEMBLY

(235-82508-10-00)

1
Out of stock

20

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

23

CORD, HIGH TENS 1

(170-82341-00-00)

1
Out of stock

24

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

25

STOP SWITCH ASSEMBLY

(246-82530-00-00)

1
Out of stock

26

NEUTRAL SWITCH ASSEMBLY

(156-82540-00-00)

1
Out of stock

27

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

28

WIRE, LEAD

(156-82541-00-00)

1
Out of stock

29

CLAMP

(90462-06014-00)

1
Out of stock

30

GROMMET

90480-01148-00

1
Out of stock

31

WIRE HARNESS ASSEMBLY

(246-82590-10-00)

1
Out of stock

32

BAND

(150-82591-00-00)

1
Out of stock
