HANDLE & WIRE

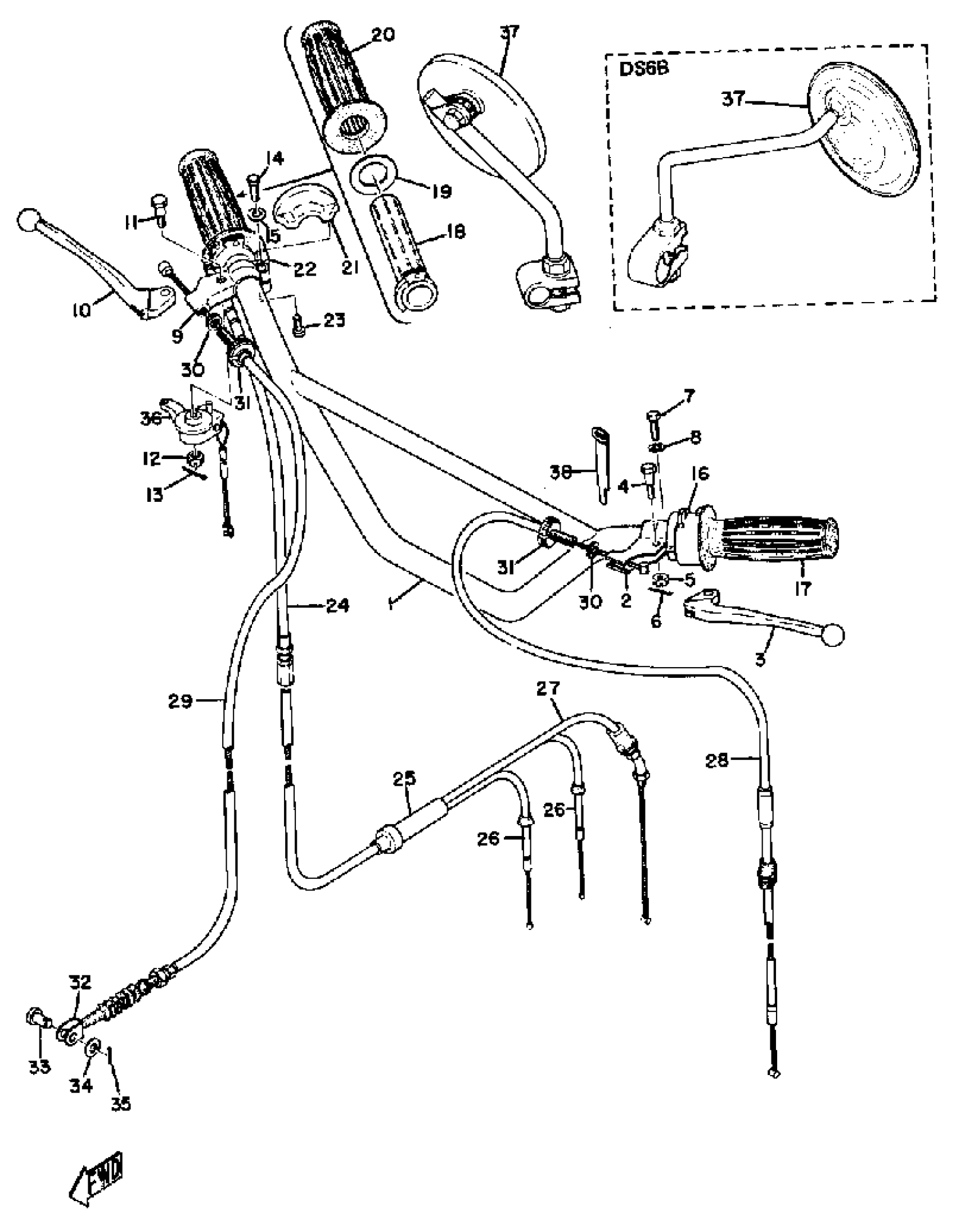

1969 Yamaha DS6C (DS6C) Handle & Wire Diagram
Find the part on the Handle & Wire diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLEBAR
(156-26111-00-00)
1
HANDLEBAR
(156-26111-10-00)
1
LEVER HOLDER ASSY 1
214-82910-07-00
1
HANDLEBAR
(236-26111-00-00)
2
LEVER HOLDER ASSY 2
233-82920-32-00
5
. NUT, SLOTTED
95301-06900-00
11
. BOLT
90109-05197-00
12
NUT, SLTED
95307-05900-00
13
. PIN, COTTER
91401-12018-00
16
SWITCH, HANDLE 4
235-83972-00-94
17
GRIP LH
341-26241-00-00
19
RING, LEAF
150-26249-00-00
20
GRIP RH
(306-26242-10-00)
21
CAP, GRIP UPPER
(235-26281-00-00)
22
CAP, GRIP LOWER
235-26282-01-00
24
CABLE, THROTTLE 1
235-26311-02-00
24
CABLE, THROTTLE 1
(235-26311-12-00)
25
CYLINDER, WIRE
156-26261-01-00
26
CABLE, THROTTLE 2
246-26312-00-00
27
CABLE, PUMP
(246-26321-00-00)
27
CABLE, PUMP
(247-26321-00-00)
28
CABLE, CLUTCH
(246-26335-00-00)
28
CABLE, CLUTCH
(246-26335-10-00)
28
CABLE, CLUTCH
(247-26335-00-00)
29
CABLE, BRAKE
235-26341-30-00
29
CABLE, BRAKE
235-26341-30-00
29
CABLE, BRAKE
(246-26341-10-00)
34
WASHER, PLATE 1562722600
90201-08083-00
37
MIRROR ASY
253-26290-00-00
37
MIRROR ASSEMBLY LH
253-26290-10-00
