1969 Yamaha DS6C (DS6C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

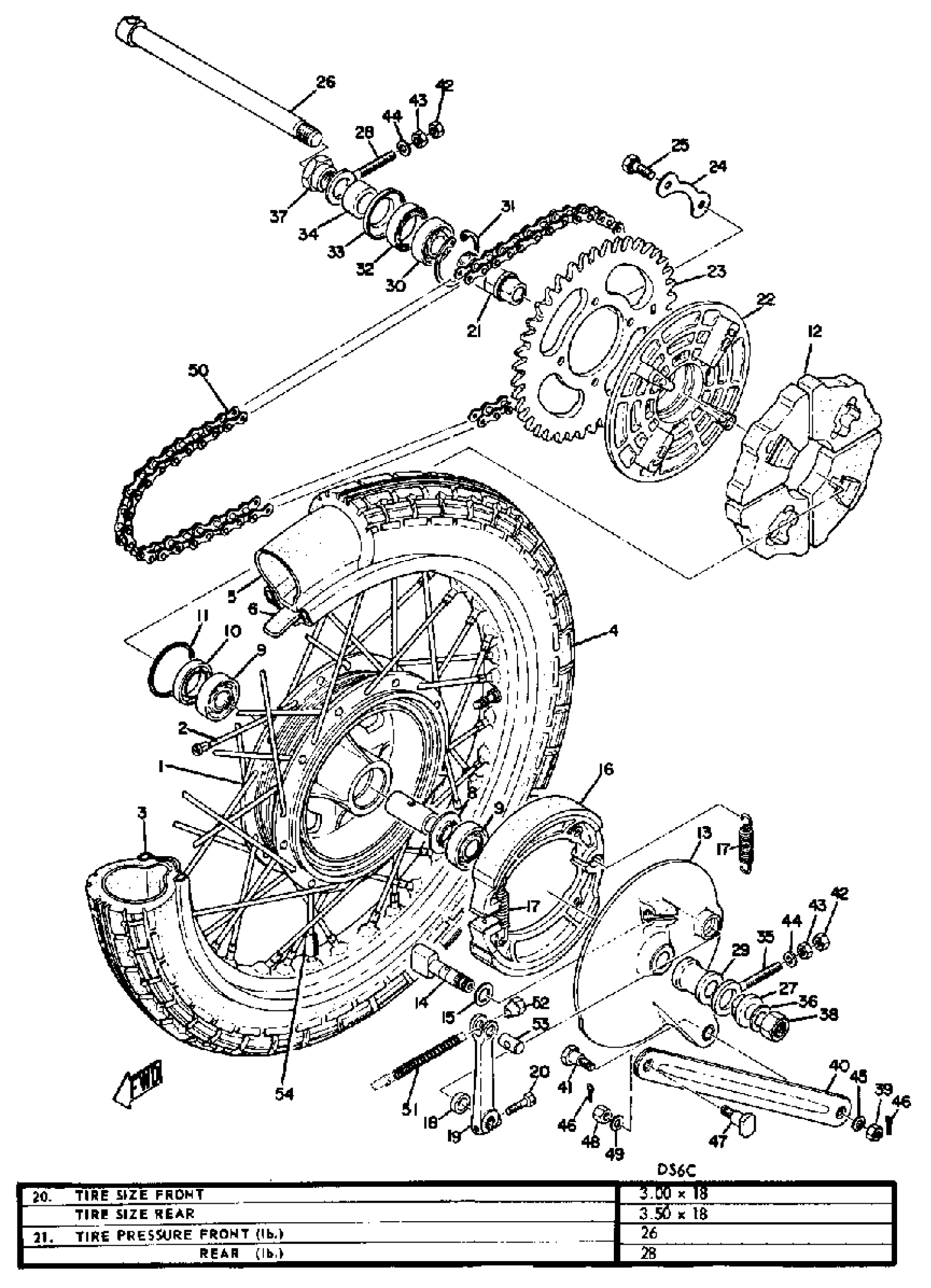

1969 Yamaha DS6C (DS6C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(278-25311-00-00)

1
Out of stock

1

MASTER LINKS

(94615-25001-00)

1
Out of stock

2

SPOKE SET, REAR

(152-25304-00-00)

1
Out of stock

3

RIM 1.85X18

94418-18026-00

1
Out of stock

4

325X18 YOKO RAYON

(94132-18089-00)

1
Out of stock

4

TIRE

(94132-18338-00)

1
Out of stock

4

3.50-18 DUNLOP

(94135-18306-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

5

TUBE (2RH)

94232-18113-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

(90560-17140-00)

1
Out of stock

8

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

9

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

10

OIL SEAL

93104-25008-00

1
Out of stock

11

O-RING (70E)

93210-54534-00

1

$5.46

In stock

12

DAMPER

(168-25364-00-00)

1
Out of stock

13

PLATE, BRAKE SHOE

(152-25321-00-00)

1
Out of stock

14

CAMSHAFT

(169-25351-00-00)

1
Out of stock

15

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

16

BRAKE SHOE KIT

5R3-W253E-00-00

—

$75.34

In stock

17

—

$8.09

In stock

18

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

19

LEVER, CAMSHAFT

(152-25355-00-00)

1
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

AXLE, SPROCKET

152-25387-00-00

1
Out of stock

22

CLUTCH, HUB

(168-25366-00-00)

1
Out of stock

23

SPROCKET, DRIVN 38T

(152-25438-10-33)

1
Out of stock

23

SPROCKET, DRIVN 40T

152-25440-10-33

1
Out of stock

23

SPROCKET, DRIVN 42T

(152-25442-10-33)

1
Out of stock

24

WASHER

148-25412-00-00

1
Out of stock

25

BOLT (583)

90101-10303-00

—

$6.25

In stock

26

AXLE,WHEEL

150-25381-01-00

1
Out of stock

27

COLLAR

(90387-17429-00)

1
Out of stock

28

PULLER, CHAIN 2

156-25389-00-00

1
Out of stock

29

COLLAR, WHEEL

148-25383-00-00

1
Out of stock

30

BEARING

93306-20503-00

1
Out of stock

31

CIRCLIP(26H)

99009-52500-00

—

$10.74

In stock

32

OIL SEAL

93102-32037-00

1
Out of stock

33

COVER, HUB DUST

(168-25367-00-00)

1
Out of stock

34

COLLAR

90387-23441-00

1
Out of stock

35

PULLER, CHAIN 1

(156-25388-00-00)

1
Out of stock

36

WASHER, WHEEL

(156-25384-00-00)

1
Out of stock

37

NUT, SPEC''L SHAPE

(90179-22124-00)

1
Out of stock

38

NUT,HEXAGON

90170-16083-00

1
Out of stock

39

. NUT

95380-08700-00

1

$3.07

In stock

40

BAR, TENSION

(171-25371-00-00)

1
Out of stock

41

BOLT

90109-08375-00

1
Out of stock

42

. NUT

95380-08700-00

1

$3.07

In stock

43

NUT(6L2)

95333-08600-00

—

$3.20

In stock

44

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

PIN, COTTER

91490-20025-00

—

$1.31

In stock

47

BOLT

90109-08184-00

1
Out of stock

48

NUT(6L2)

95333-08600-00

—

$3.20

In stock

49

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

50

525T 92L

(94515-25092-00)

1
Out of stock

51

SPRING, COMPRESSION (3L5)

90501-10074-00

—

$6.89

In stock

52

NUT (25K)

90179-06411-00

—

$5.10

In stock

53

PIN 1562723700

90249-12008-00

—

$4.70

In stock

54

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock
