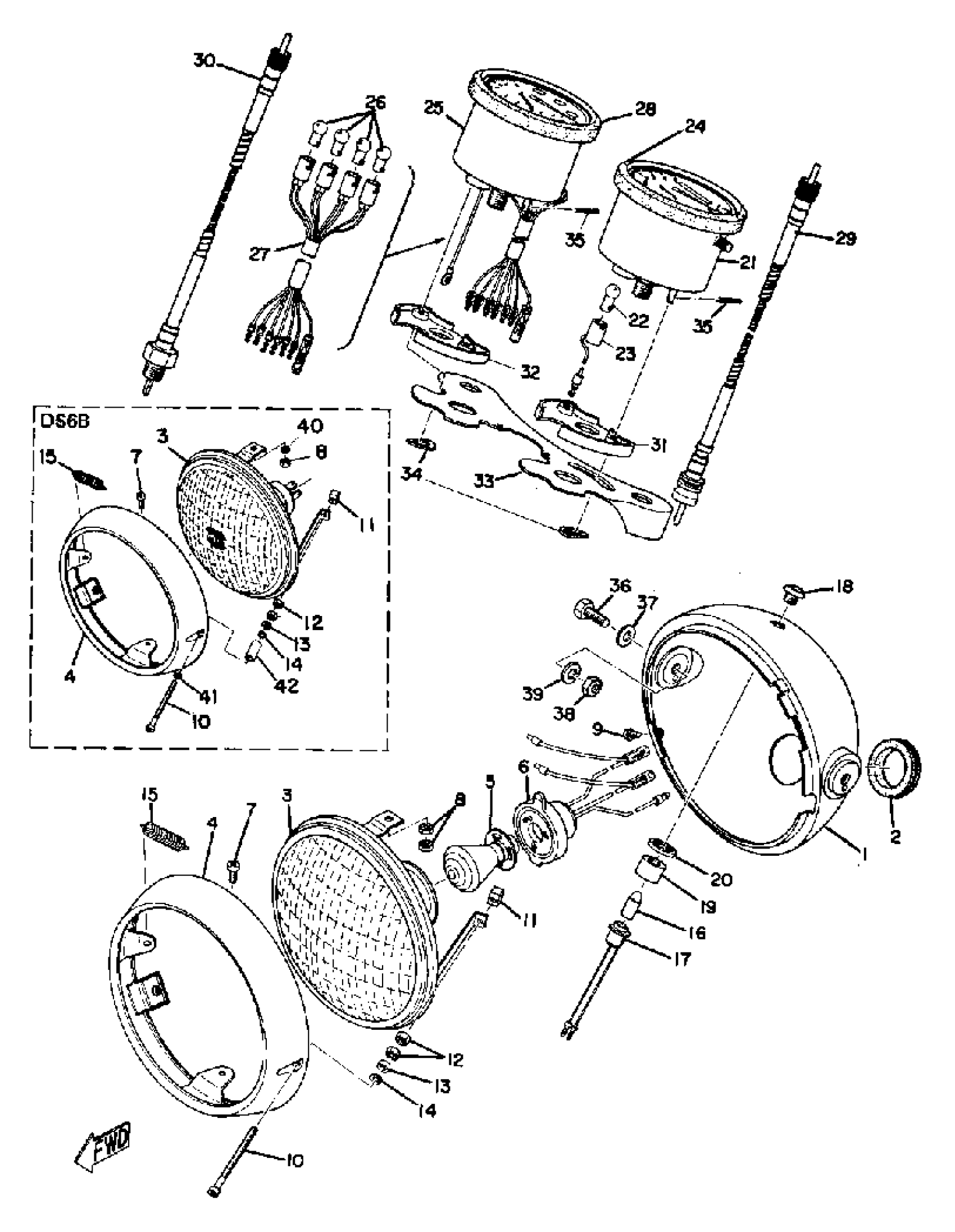

Find the part on the Headlamp, Speedometer & Tachometer diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) Headlamp, Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(235-84330-60-65)

1
Out of stock

1

BODY ASSEMBLY

(246-84330-60-63)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

3

LENS ASSEMBLY

(235-84320-60-00)

1
Out of stock

3

LENS ASSEMBLY

246-84320-60-00

1
Out of stock

4

RIM, HEADLIGHT

235-84315-60-00

1
Out of stock

5

BULB, H.L.12V35/25W

235-84314-00-00

1
Out of stock

6

SOCKET

(235-84312-60-00)

1
Out of stock

6

SOCKET

246-84312-60-00

1
Out of stock

7

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

12

NUT(6L4)

95380-04700-00

—

$5.62

In stock

13

. SPACER

132-84328-60-00

1
Out of stock

13

SPACER

168-84328-60-00

1
Out of stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

15

SPRING

(132-84335-60-00)

1
Out of stock

15

SPRING

(168-84335-60-00)

1
Out of stock

16

BULB

256-84347-00-00

1
Out of stock

17

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

20

WASHER, IN.TOOTH

(92901-12300-00)

1
Out of stock

21

SPEEDOMETER ASSEMBLY

(235-83510-40-00)

1
Out of stock

22

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

23

SOCKET, METER

(235-83536-21-00)

1
Out of stock

24

. DAMPER

336-83513-00-00

1
Out of stock

25

BOLT (583)

90101-10303-00

—

$6.25

In stock

26

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

27

SOCKET CORD ASSEMBLY

(235-83520-00-00)

1
Out of stock

28

. DAMPER

336-83513-00-00

1
Out of stock

29

SPEEDOMETER CABLE ASSY

2A6-83550-10-00

1
Out of stock

30

TACHOMETER CABLE

235-83560-01-00

1
Out of stock

31

DAMPER

237-83523-00-00

—

$8.70

In stock

32

DAMPER

214-83523-00-00

1
Out of stock

33

BRACKET, METER

(235-83519-00-33)

1
Out of stock

34

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

35

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

36

BOLT (682)

97013-08025-00

—

$6.80

In stock

37

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

38

NUT(6L2)

95333-08600-00

—

$3.20

In stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

41

WASHER,SPECIAL

233-84127-60-00

—

$2.78

In stock

42

. COLLAR, SCREW

233-84133-60-00

1
Out of stock
