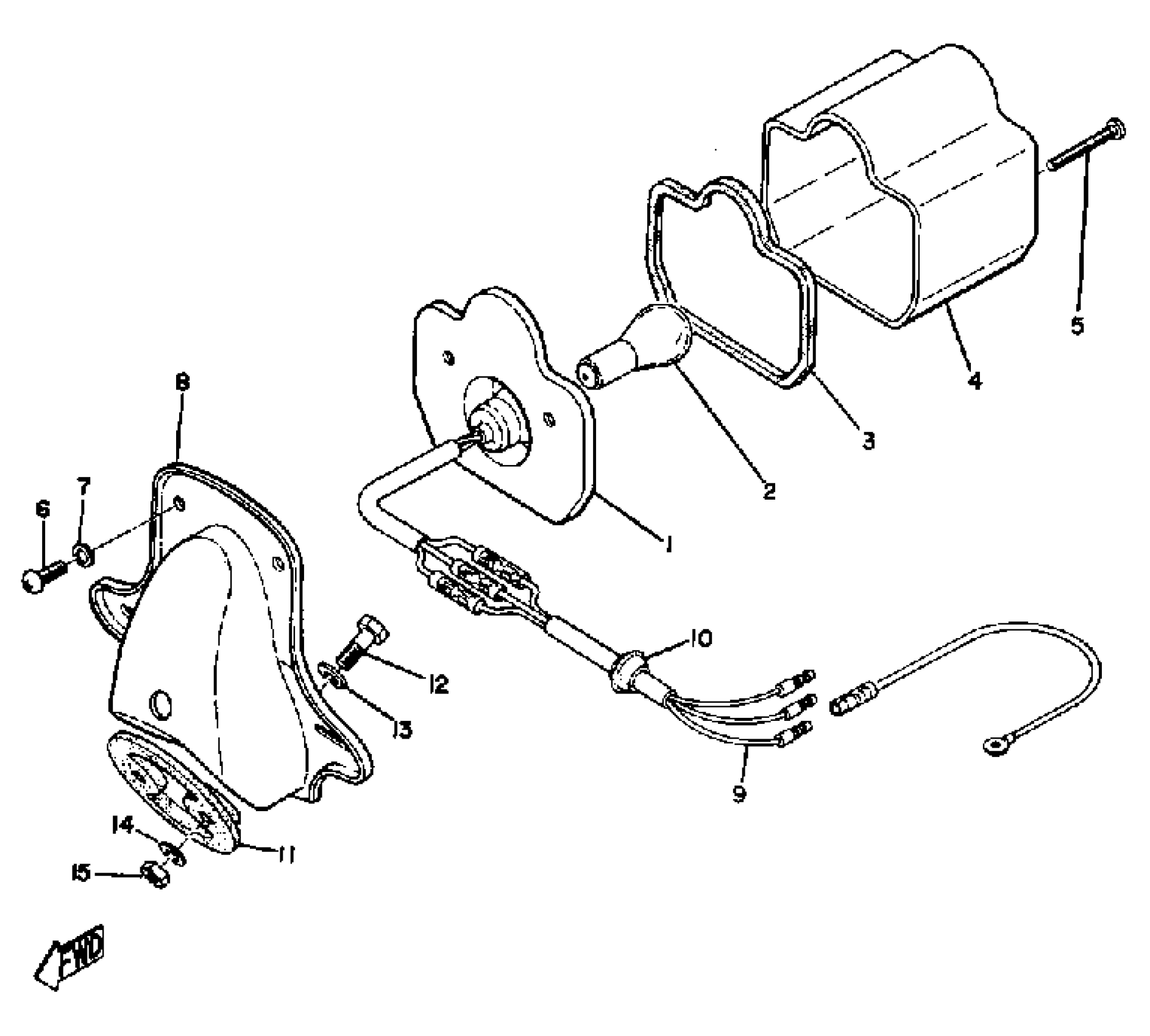

Find the part on the Tail Lamp diagram for your 1969 Yamaha DS6C (DS6C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DS6C (DS6C) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(168-84710-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(168-84711-01-00)

1
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

SEAT, BASE

(168-84712-60-00)

1
Out of stock

4

. LENS, TAILLIGHT

(168-84721-60-00)

1
Out of stock

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

1
Out of stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BRACKET, LICENSE

(168-84751-00-35)

1
Out of stock

9

CORD, TAILLIGHT

(170-84717-00-00)

1
Out of stock

10

GROMMET 152845180000

90480-12013-00

1
Out of stock

11

DAMPER

(170-84753-00-00)

1
Out of stock

12

BOLT 168217380000

90109-06017-00

—
Out of stock

13

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
