1991 Suzuki DR650SM Wiring Harness Diagram

← All diagrams

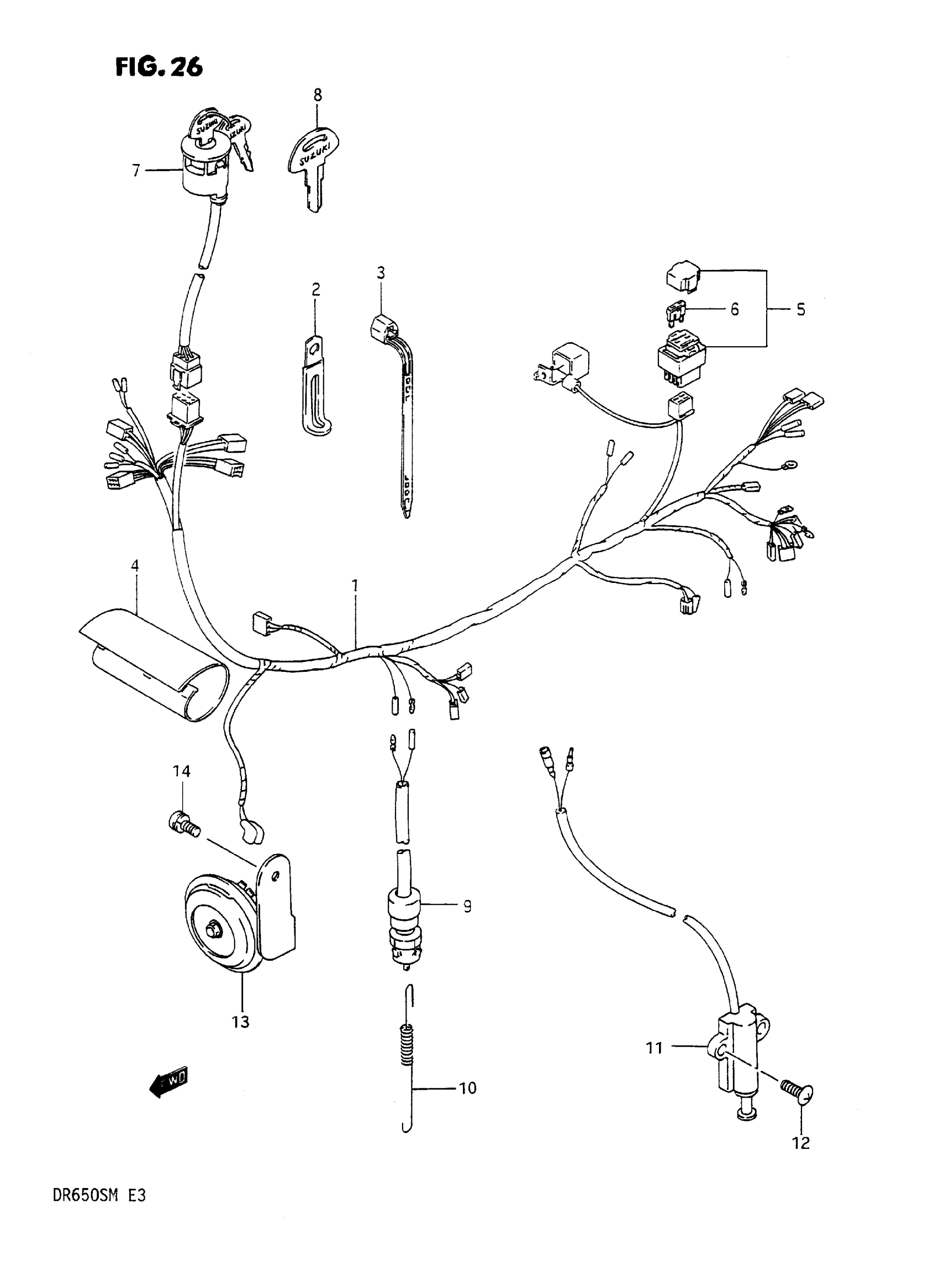

Find the part on the Wiring Harness diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki DR650SM Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL L This part replaces 36610-14A70.

36610-14A71

1
Out of stock

1

HARNESS, WIRING | MODEL M

36610-14A71

1
Out of stock

2

CLAMP This part replaces 09404-06401.

09404-06039

3
Out of stock

2

CLAMP This part replaces 09404-08404.

09404-08420

2
Out of stock

2

CLAMP This part replaces 09404-08413.

09404-08420

1
Out of stock

3

CLAMP (L:125)

09407-14403

8
Out of stock

3

CLAMP (L:165)

09407-18402

3
Out of stock

3

CLAMP (L:235)

09407-25401

2
Out of stock

5

1

$25.08

In stock

6

FUSE (15A)

09481-15101

1

$2.77

In stock

7

SWITCH ASSY,IGN This part replaces 37110-01A03.

37110-13A20

1
Out of stock

8

KEY, BLANK | OPT This part replaces 37145-02400.

37146-49300

1
Out of stock

9

SWITCH ASSY, STOP LAMP This part replaces 37740-14A00.

37740-04A10

1
Out of stock

10

SPRING This part replaces 09443-06079.

09443-06079-XC0

1
Out of stock

11

SWITCH ASSY, SIDE STAND

37840-14A21

1
Out of stock

12

2

$1.55

In stock

13

HORN ASSY

38500-14A10

1
Out of stock

14

SCREW

02112-36125

—
Out of stock
