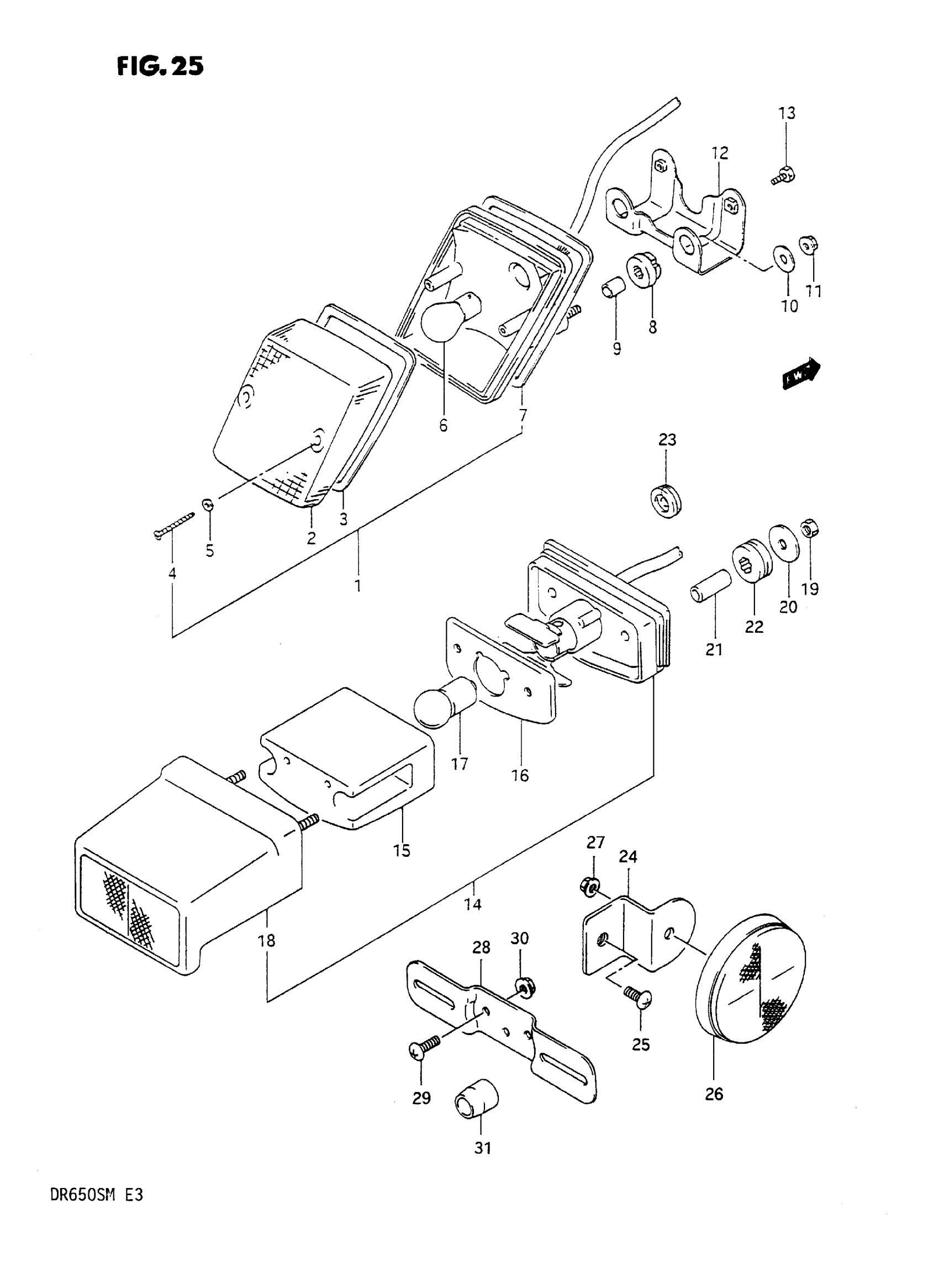

Suzuki DR650SM (1991) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR C | MODEL L This part replaces 35710-14A30.

35710-28A20-999

Unavailable

1

LAMP ASSY, RR C | MODEL M; Includes Item(s) 2 - 7 This part replaces 35710-14A31.

35710-28A20-999

Unavailable

2

LENS

35712-14A00

Unavailable

3

GASKET This part replaces 35713-14A00.

35713-31D00

$10.62

4

SCREW This part replaces 03211-04258.

03211-0425B

$2.95

5

GASKET

35627-43010

$2.29

6

BULB (12V,23/8W)

09471-12084

Unavailable

7

GASKET

35733-14A00

Unavailable

8

CUSHION

09320-09018

$2.28

9

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.92

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

11

NUT This part replaces 08310-12066.

08310-0006A

$1.83

12

BRACKET, TAIL LAMP

35726-14A00

Unavailable

13

BOLT This part replaces 01134-06126.

01570-0612A

$2.87

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 18 This part replaces 35910-03D00.

35910-03D20

Unavailable

15

LENS

35912-38A30

$23.08

16

GASKET

35913-38A30

$3.80

17

BULB (12V5W) This part replaces 09471-12139.

09471-12058

$2.19

18

REFLECTOR

35917-03D00

Unavailable

19

NUT

09140-04002

Unavailable

20

WASHER

09160-04018

Unavailable

21

SPACER

09180-04018

Unavailable

22

CUSHION

09320-09009

$4.19

23

GROMMET

09308-07013

Unavailable

24

BRACKET, REFLECTOR SIDE RH

35975-14C00

Unavailable

24

BRACKET, REFLECTOR SIDE LH

35976-14C00

Unavailable

25

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.38

26

REFLECTOR, REAR SIDE

35970-14A10

$21.23

27

NUT This part replaces 08361-15055.

08361-1505B

$2.67

28

BRACKET, LICENSE PLATE

35927-00A10

$16.03

29

SCREW This part replaces 02142-06164.

02142-0616A

$1.37

30

NUT This part replaces 08316-16066.

08316-1006B

$2.50

31

CUSHION

09321-06030

$4.28
