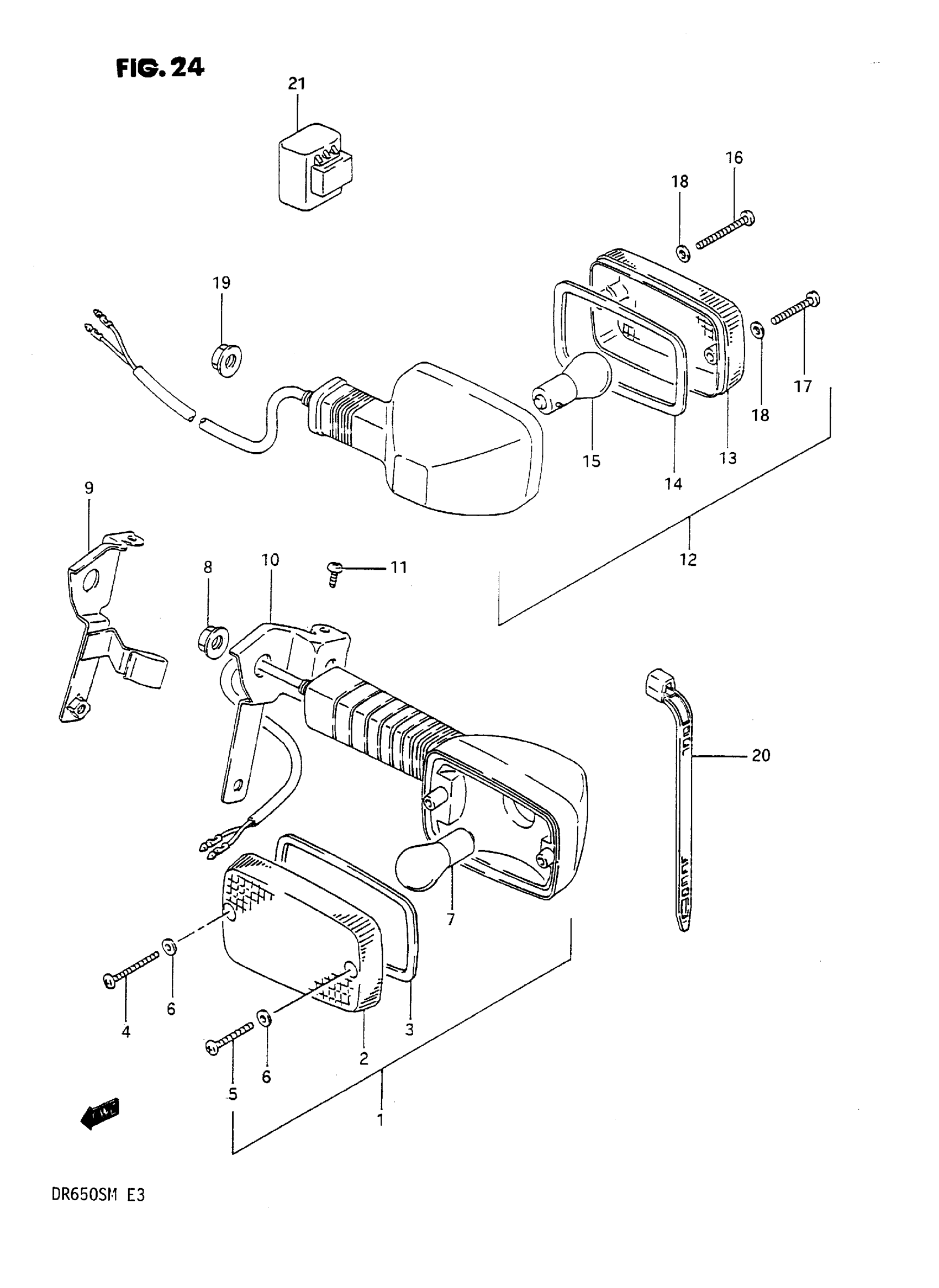

Suzuki DR650SM (1991) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR TURN SIGNAL | MODEL L This part replaces 35601-14A53-999.

35603-44A31-999

Unavailable

1

LAMP ASSY, REAR TURN SIGNAL | MODEL M; Includes Item(s) 2 - 6 This part replaces 35601-14A52-999.

35603-44A31-999

Unavailable

2

LENS

35612-02181

Unavailable

3

GASKET

35613-48700

Unavailable

4

SCREW (4X38)

35623-02180

Unavailable

5

SCREW This part replaces 03211-04308.

03211-04306

$1.80

6

GASKET

35627-43010

$2.29

7

BULB (12V,23W)

09471-12006

$3.64

8

NUT This part replaces 08316-26105.

08316-2010B

$4.38

9

BRACKET, FRONT RH

35670-14A00

Unavailable

10

BRACKET, FRONT LH

35680-14A00

Unavailable

11

SCREW This part replaces 02112-35106.

02112-3510B

$2.27

12

LAMP ASSY,RR TR | Includes Item(s) 13 - 18 This part replaces 35603-14A32.

35603-06B30-999

Unavailable

13

LENS

35652-02181

Unavailable

14

GASKET

35613-48700

Unavailable

15

BULB (12V,23W)

09471-12006

$3.64

16

SCREW

35623-02180

Unavailable

17

SCREW This part replaces 03211-04308.

03211-04306

$1.80

18

GASKET

35627-43010

$2.29

19

NUT This part replaces 08316-26105.

08316-2010B

$4.38

20

CLAMP

09407-14403

$2.24

21

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$90.45
