Partiron

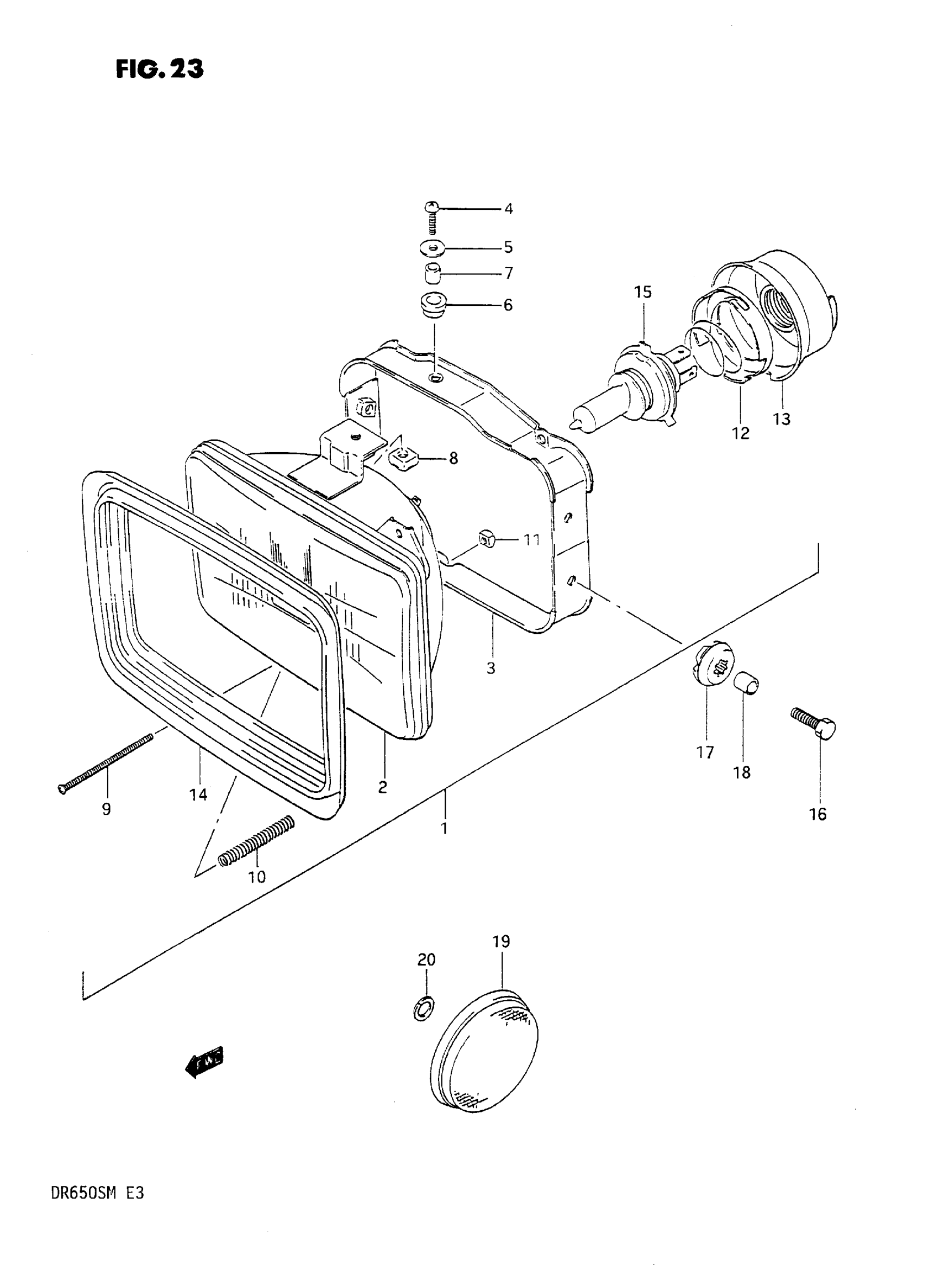

Suzuki DR650SM (1991) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14 This part replaces 35100-14C30-999.

35100-14A33-999

$237.25

2

LAMP UNIT This part replaces 35121-14C30.

35121-14A31

Unavailable

3

HOUSING

35141-14A00

$42.37

4

SCREW This part replaces 02112-05208.

02112-05207

$2.03

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$2.01

6

CUSHION

35139-45230

$2.25

7

SPACER

35133-14A00

Unavailable

8

NUT

35135-45900

$3.67

9

SCREW This part replaces 35151-49200.

35151-45900

$3.59

10

SPRING

35154-49200

$6.22

11

NUT

35135-45600

$4.12

12

HOLDER, BULB

35136-01A00

Unavailable

13

.COVER SOCKET

35173-01440

$19.60

14

SHADE

35129-14C00

Unavailable

15

BULB (12V,60/55W,H4)

09471-12060

$23.37

16

BOLT (6X20) This part replaces 09116-06011.

09116-06115

$2.03

17

CUSHION

09320-09009

$4.32

18

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

$2.90

19

REFLEX REFLECTOR, FRONT SIDE

35950-30910

$33.92

20

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.89
