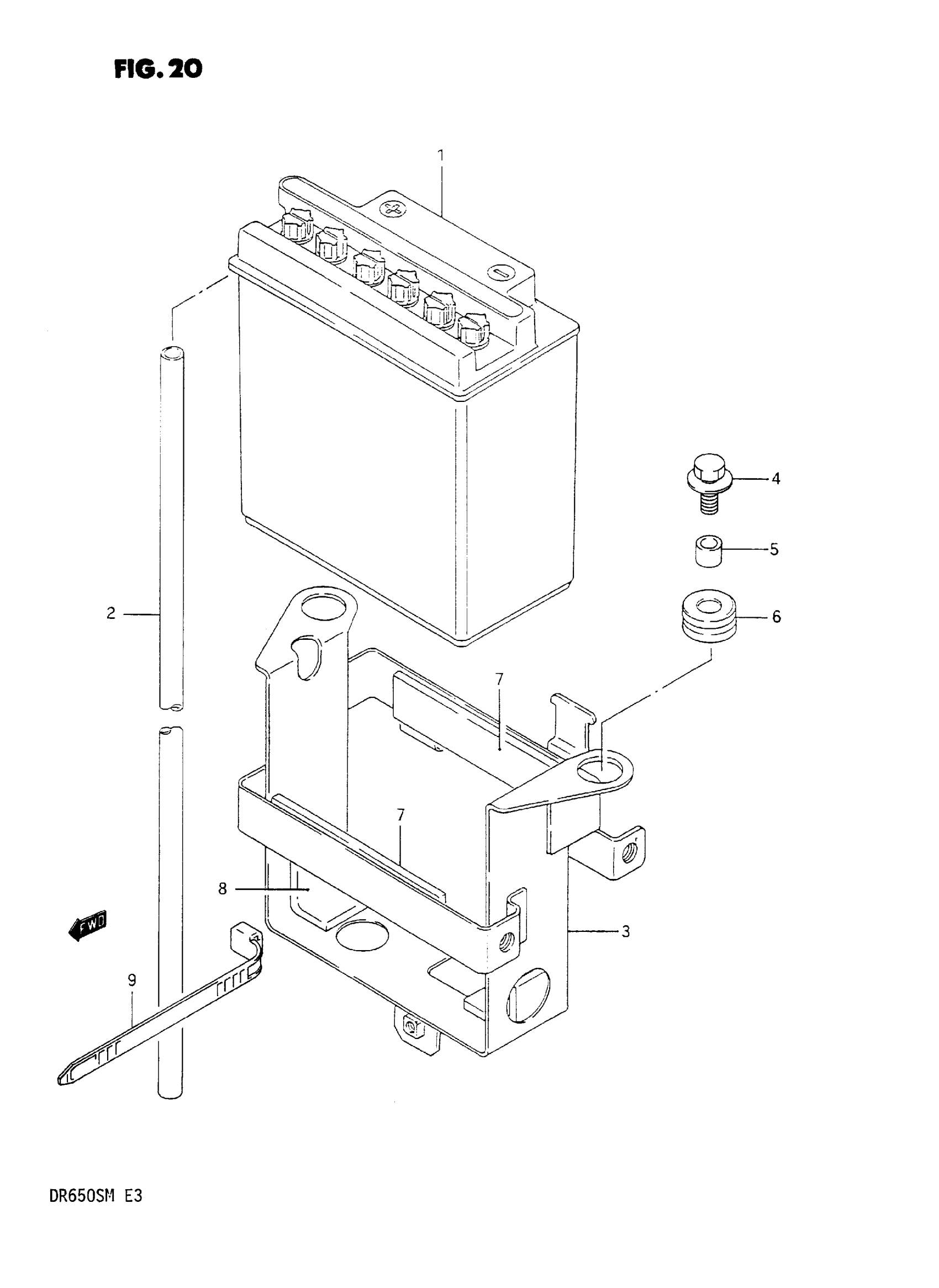

Suzuki DR650SM (1991) BATTERY Diagram

#

Description

Price

1

YB5LB BATTERY(Y This part replaces 33610-18010.

33610-35400

$66.58

2

HOSE,BATTERY EX This part replaces 33680-38000.

33680-16A11

$7.65

3

HOLDER, BATTERY

41540-14C60

Unavailable

4

BOLT (6X20) This part replaces 09116-06056.

09116-06115

$1.97

5

SPACER (6.1X9X7.5)

09180-06038

$1.86

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

7

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.09

8

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.17

9

CLAMP, BATTERY HOSE

09407-14403

$2.24
