1991 Suzuki DR650SM Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

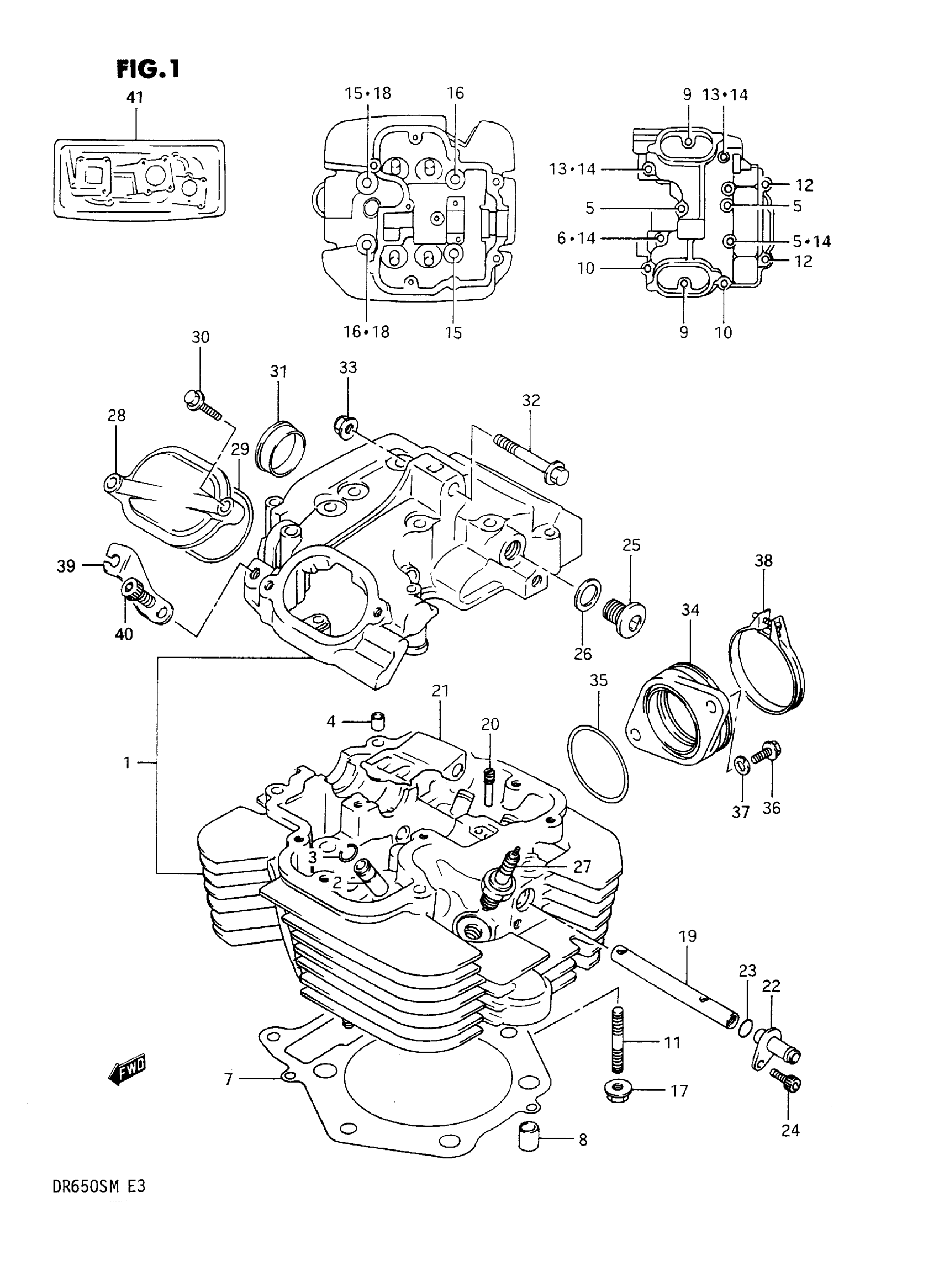

1991 Suzuki DR650SM Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 6

11100-12D00

1
Out of stock

2

GUIDE, VALVE

11115-37470

4

$45.97

In stock

3

RING, VALVE GUIDE

09381-10003

4

$2.69

In stock

4

PIN

09206-08001

2
Out of stock

5

3

$3.02

In stock

6

BOLT CYL HEAD C This part replaces 09103-06040.

09103-06040-XC0

1
Out of stock

7

GASKET, CYLINDER HEAD

11141-12D00

1
Out of stock

8

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

9

BOLT This part replaces 01517-06257.

01550-06257

2
Out of stock

10

BOLT This part replaces 01517-06404.

01550-0640A

2
Out of stock

11

STUD BOLT (8X33) This part replaces 09108-08161.

09108-08220

2
Out of stock

12

BOLT (6X130)

09103-06085

2

$5.00

In stock

13

2

$3.02

In stock

14

GASKET (5.8X13X1.2) This part replaces 09168-06028.

09168-06023

4
Out of stock

15

BOLT (10X190)

09103-10179

2

$15.12

In stock

16

BOLT (10X215)

09103-10181

2
Out of stock

17

2

$2.85

In stock

18

GASKET

09168-10017

2

$2.94

In stock

19

PIPE, HEAD OIL

11131-12D00

1
Out of stock

20

SCREW

09134-06012

1
Out of stock

21

PLATE, HEAD CHAMBER

11135-12D00

1
Out of stock

22

UNION, HEAD OIL This part replaces 11190-12D00.

11190-12D01

1
Out of stock

23

O RING

09280-10009

1

$2.50

In stock

24

BOLT, NO.3 This part replaces 07110-06105.

07130-0610B

1
Out of stock

25

PLUG, HEAD COVER

09248-14010

1

$7.03

In stock

26

GASKET

09168-14004

1

$1.96

In stock

27

SPARK PLUG (ND,X27EP-U9)

09482-00329-111

2
Out of stock

28

CAP, INSPECTION This part replaces 11175-12D00.

11175-12D10

2
Out of stock

29

O RING

09280-60004

2

$3.63

In stock

30

BOLT This part replaces 01517-06205.

01550-0620A

4
Out of stock

31

PLUG, HEAD

09241-30004

1

$6.44

In stock

33

NUT This part replaces 08319-31085.

08319-3108A

1
Out of stock

34

PIPE, INTAKE

13110-12D00

1
Out of stock

35

O RING

09280-46002

1

$10.16

In stock

36

BOLT, FRONT This part replaces 07120-06205.

07120-0620B

2
Out of stock

37

2

$1.97

In stock

38

CLAMP

09402-58208

1

$5.20

In stock

39

HOLDER, DECOMP CABLE

12944-14A00

1
Out of stock

40

1

$3.13

In stock

41

GASKET SET | OPT This part replaces 11400-12890.

11400-12895

1
Out of stock
