2005 Suzuki DR650SE Seat Diagram

← All diagrams

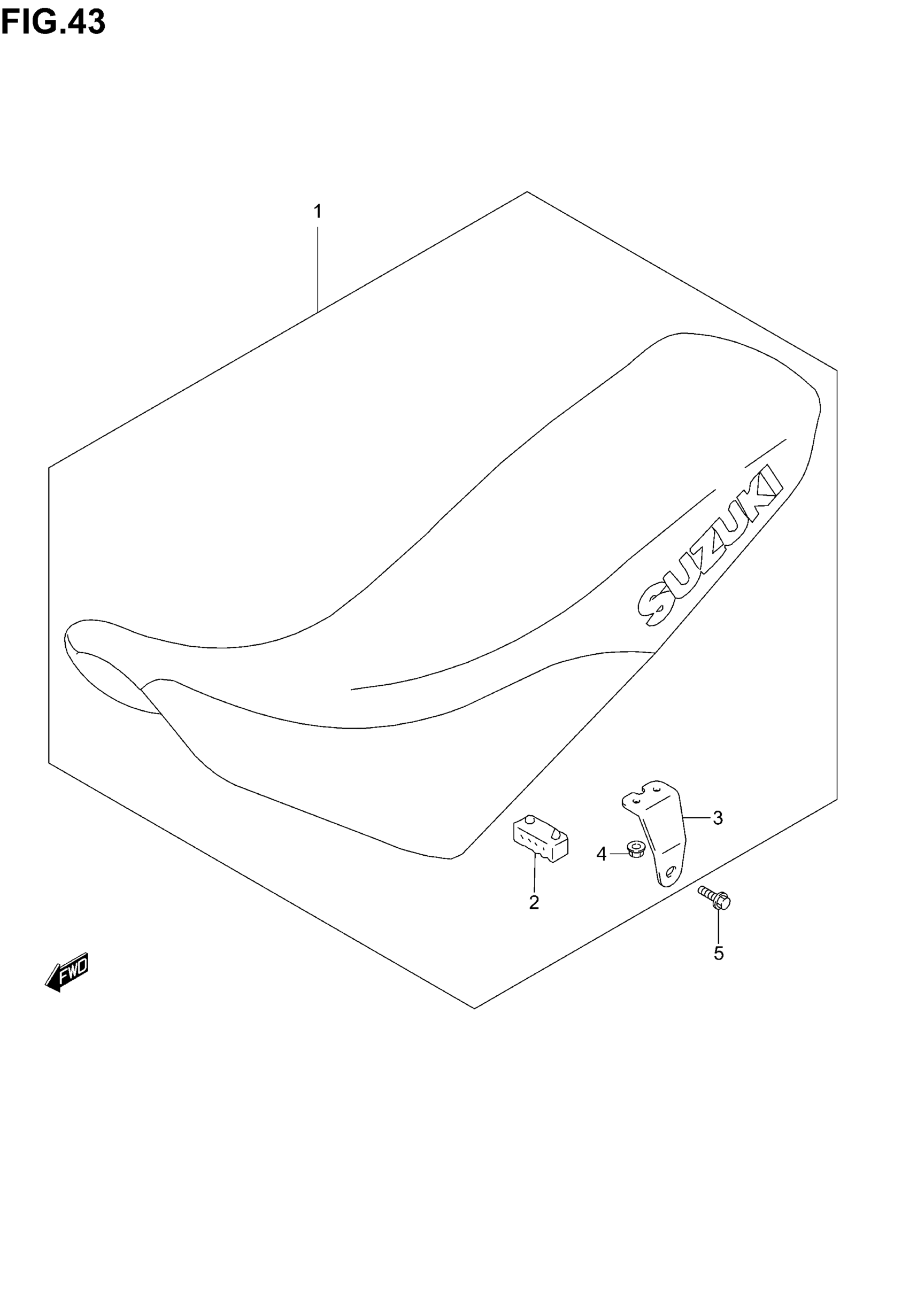

Find the part on the Seat diagram for your 2005 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR650SE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET | FOR N9J

45100-32E20-N9K

1
Out of stock

1

SEAT SET | FOR CT5; Includes Item(s) 2 - 4

45100-32E20-N9M

1
Out of stock

2

CUSHION

45149-31300

6
Out of stock

3

BRACKET

45117-32E10

2
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

5

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock
