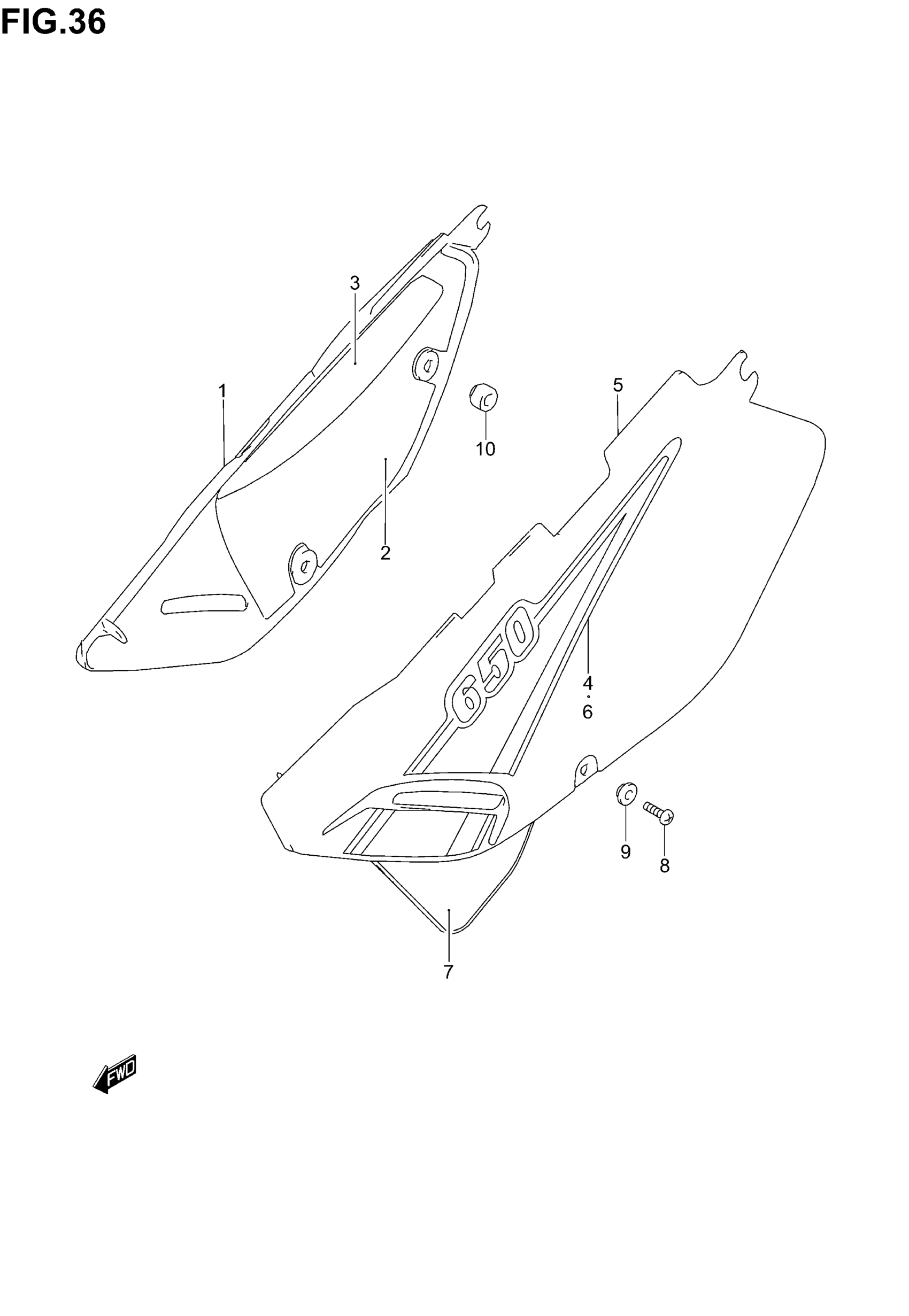

Suzuki DR650SE (2005) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER,FRAME RH (BLACK) | FOR CT5 This part replaces 47111-32E00-019.

47111-32E10-019

$147.77

1

COVER,FRAME RH (WHITE) | FOR N9J This part replaces 47111-32E00-30H.

47111-32E10-30H

$147.77

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$67.28

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$26.70

4

TAPE, RH | FOR CT5

68130-32E00-FF8

Unavailable

4

TAPE, RH | FOR N9J

68130-32E00-FF9

Unavailable

5

COVER,FRAME LH (BLACK) | FOR CT5 This part replaces 47211-32E00-019.

47211-32E10-019

$159.42

5

COVER,FRAME LH (WHITE) | FOR N9J This part replaces 47211-32E00-30H.

47211-32E10-30H

$154.20

6

TAPE, LH | FOR CT5

68140-32E00-FF8

Unavailable

6

TAPE, LH | FOR N9J

68140-32E00-FF9

Unavailable

7

TAPE, NO.2, LH

68146-32E00

$17.02

8

SCREW

02142-06167

$1.37

9

WASHER This part replaces 09169-06028.

09169-06041

$1.97

10

CUSHION, MUFFLER

09321-10019

$4.42
