2005 Suzuki DR650SE Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2005 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

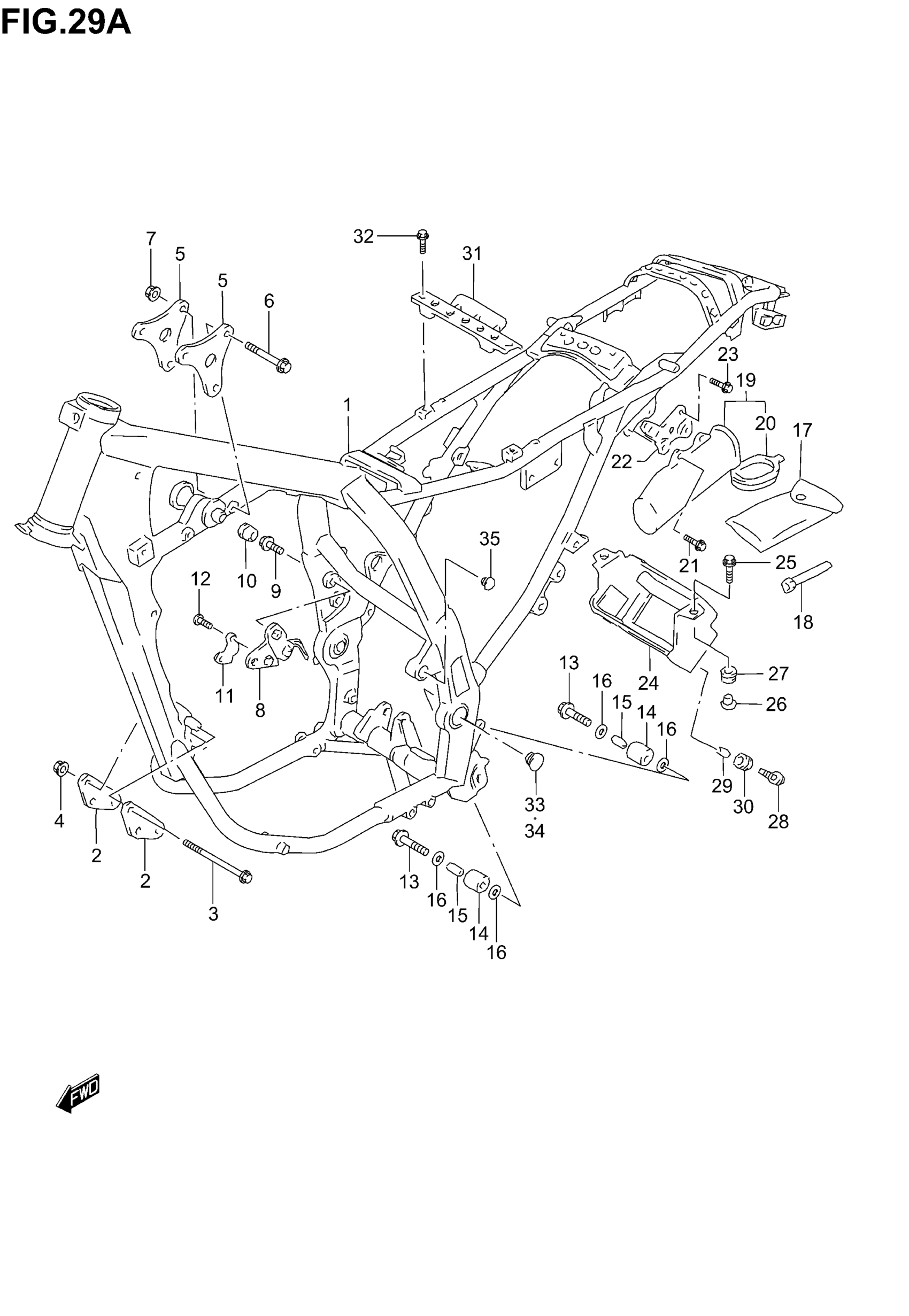

2005 Suzuki DR650SE Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (GRAY) | MODEL K2

41100-32E30-17U

1
Out of stock

1

FRAME (GRAY) | MODEL K3/K4/K5

41100-32E30-YU8

1
Out of stock

1

FRAME (GRAY) | MODEL K2 E33

41100-32E20-17U

1
Out of stock

1

FRAME (GRAY) | MODEL K3/K4/K5 E33

41100-32E20-YU8

1
Out of stock

2

PLATE, FRONT RH

41911-32E00

2
Out of stock

3

BOLT, FRONT

09103-08139

2
Out of stock

4

NUT This part replaces 08319-31083.

08319-3108A

2
Out of stock

5

PLATE, UPPER

41991-32E00

2
Out of stock

6

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

2
Out of stock

7

NUT This part replaces 08319-31083.

08319-3108A

2
Out of stock

8

PLATE,ENG MTG,REAR RH (BLACK)

41930-32E00-019

1
Out of stock

9

BOLT This part replaces 01550-08203.

01550-0820A

2
Out of stock

10

CAP

09250-20012

2
Out of stock

11

BRACKET,STOP SWITCH

43251-32E00

1
Out of stock

12

SCREW This part replaces 02162-06163.

02162-0616B

1
Out of stock

13

BOLT

09103-08178

2
Out of stock

14

ROLLER CHAIN CONTROL UPR

43911-13E00

2
Out of stock

15

SPACER

09180-08156

2
Out of stock

16

WASHER

08211-08201

4
Out of stock

17

TOOL ASSY This part replaces 09800-21034.

09800-21084

1
Out of stock

18

BOX SPANNER 16

09816-00100

1
Out of stock

19

HOLDER,TOOL | Includes Item(s) 20

41550-32E00

1
Out of stock

20

CAP

41552-37210

1
Out of stock

21

BOLT

09116-06006

2
Out of stock

22

BRACKET,TOOL HOLDER | E33

47440-32E00

1
Out of stock

23

BOLT | E33 This part replaces 01550-06163.

01550-0616A

1
Out of stock

24

HOLDER,BATTERY

41540-32E00

1
Out of stock

25

BOLT, UPPER

09116-06167

2
Out of stock

26

SPACER

09169-06065

2
Out of stock

27

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

28

BOLT, SIDE

09116-06168

1
Out of stock

29

SPACER

09180-06038

1
Out of stock

30

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

1
Out of stock

31

PLATE,BATTERY FITTING

41561-32E00

1
Out of stock

32

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

33

PLUG,FRAME PIVOR RH

43585-32E00

1
Out of stock

34

PLUG,FRAME PIVOR LH

43595-32E00

1
Out of stock

35

PLUG,FRAME BOSS

43586-32E00

1
Out of stock
