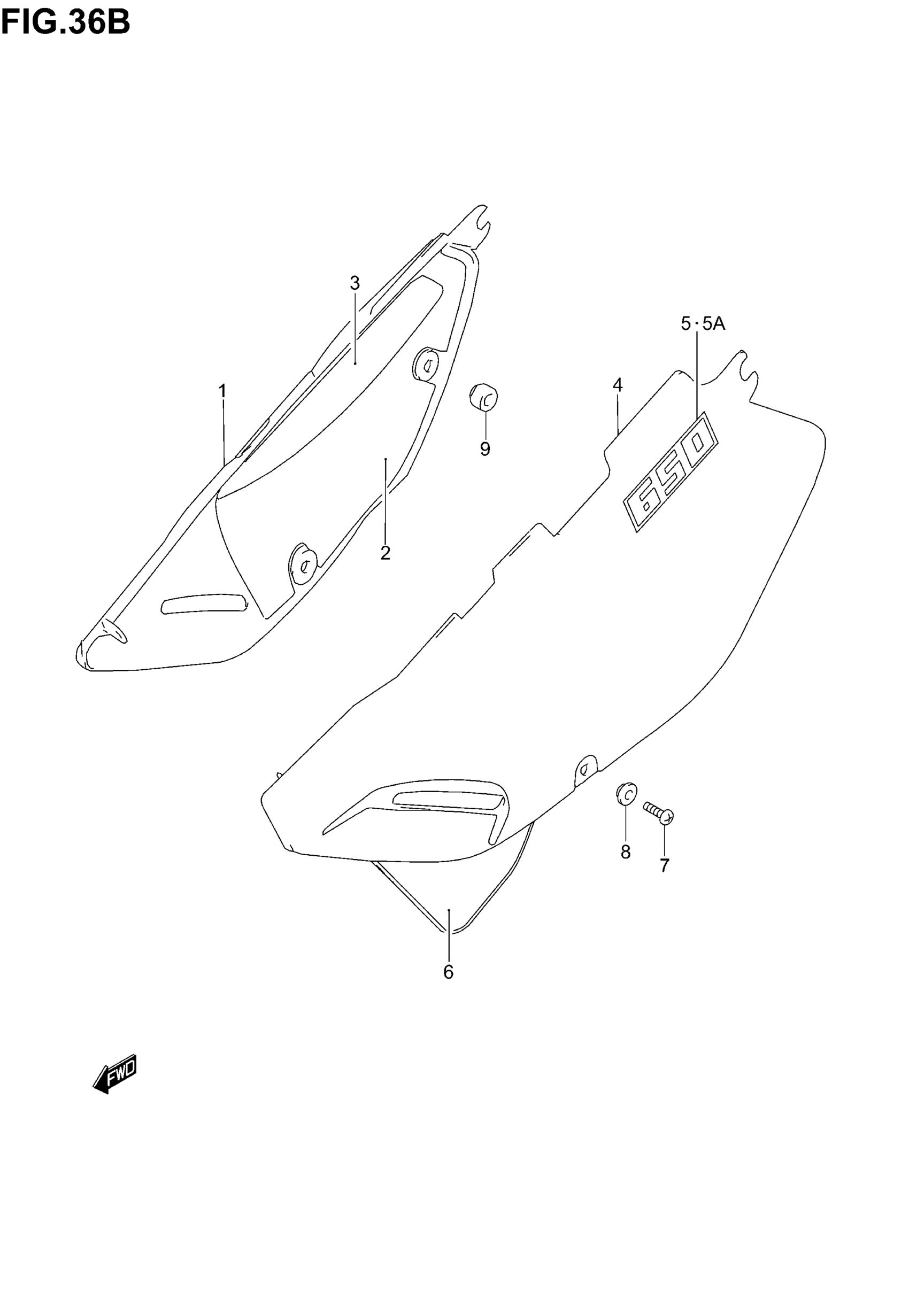

Suzuki DR650SE (2005) FRAME COVER (MODEL K3/K4/K5) Diagram

#

Description

Price

1

COVER,FRAME RH (WHITE) This part replaces 47111-32E00-30H.

47111-32E10-30H

$147.77

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$67.28

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$26.70

4

COVER,FRAME LH (WHITE) This part replaces 47211-32E00-30H.

47211-32E10-30H

$154.20

5

EMBLEM | MODEL K3/K4

68131-32E10-8YM

Unavailable

5A

EMBLEM | MODEL K5

68131-32E20-8YM

$13.43

6

TAPE, NO.2, LH

68146-32E00

$17.02

7

SCREW

02142-06167

$1.37

8

WASHER This part replaces 09169-06028.

09169-06041

$1.97

9

CUSHION, MUFFLER

09321-10019

$4.42
