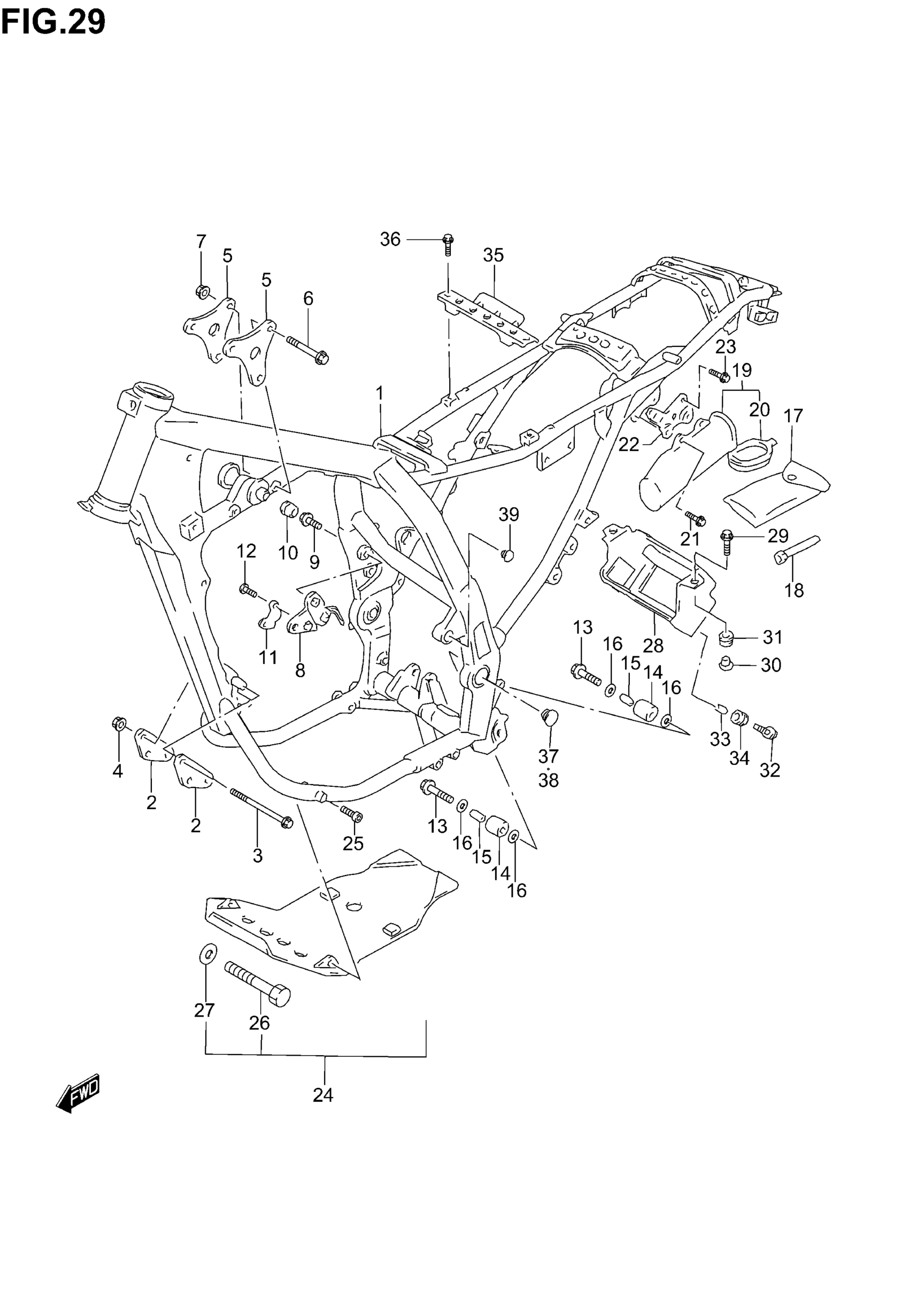

Suzuki DR650SE (2005) FRAME (MODEL K1) Diagram

FRAME (CHARCOAL)

41100-32E30-24K

Unavailable

FRAME (CHARCOAL) | E33

41100-32E20-24K

Unavailable

PLATE, FRONT RH

41911-32E00

$20.52

BOLT, FRONT

09103-08139

$7.89

NUT This part replaces 08319-31083.

08319-3108A

$2.31

PLATE, UPPER

41991-32E00

$40.92

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.19

NUT This part replaces 08319-31083.

08319-3108A

$2.31

PLATE,ENG MTG,REAR RH (BLACK)

41930-32E00-019

Unavailable

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

CAP

09250-20012

$9.78

BRACKET,STOP SWITCH

43251-32E00

Unavailable

SCREW This part replaces 02162-06163.

02162-0616B

$2.06

BOLT

09103-08178

$4.29

ROLLER CHAIN CONTROL UPR

43911-13E00

$20.56

SPACER This part replaces 09180-08119.

09180-08156

$6.14

WASHER

08211-08201

$2.06

TOOL ASSY This part replaces 09800-21034.

09800-21084

$45.17

BOX SPANNER 16

09816-00100

Unavailable

HOLDER,TOOL | Includes Item(s) 20

41550-32E00

$82.18

CAP

41552-37210

$9.21

BOLT

09116-06006

$1.88

BRACKET,TOOL HOLDER | E33

47440-32E00

$19.23

BOLT | E33 This part replaces 01550-06163.

01550-0616A

$1.97

PROTECTOR SET, ENGINE | OPT; Includes Item(s) 25 - 27

42500-32810

$228.85

BOLT | OPT

09106-08098

$4.26

BOLT, MOUNT | OPT

09103-10154

$22.23

WASHER | OPT

09160-10091

Unavailable

HOLDER,BATTERY

41540-32E00

Unavailable

BOLT, UPPER

09116-06167

$2.19

SPACER

09169-06065

$4.70

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

BOLT, SIDE

09116-06168

$2.50

SPACER

09180-06038

$1.86

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

PLATE,BATTERY FITTING

41561-32E00

$25.52

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

PLUG,FRAME PIVOR RH

43585-32E00

$4.28

PLUG,FRAME PIVOR LH

43595-32E00

$4.28

PLUG,FRAME BOSS

43586-32E00

$5.52
