2009 Suzuki DR-Z70 Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

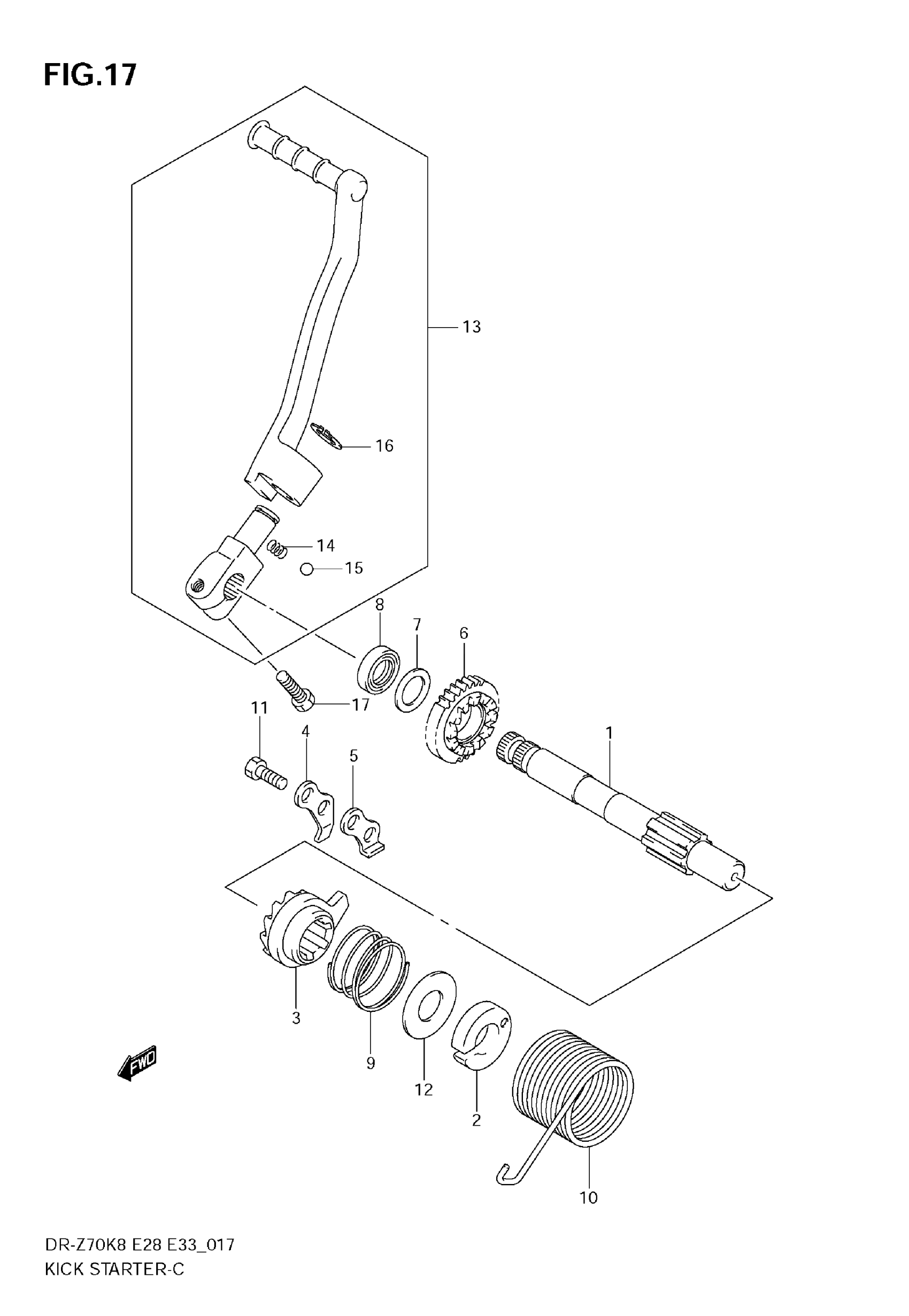

2009 Suzuki DR-Z70 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, KICK STARTER

26211-09421

1
Out of stock

2

GUIDE, KICK STARTER SPR

26221-09400

1
Out of stock

3

STARTER, KICK

26231-09410

1
Out of stock

4

GUIDE, KICK STARTER

26232-09401

1
Out of stock

5

STOPPER, KICK STARTER

26233-09400

1
Out of stock

6

GEAR, KICK STARTER DRIVE | NT:20

26241-09402

1
Out of stock

7

WASHER, KICK DRIVE GEAR | 14X22X1

09181-14167

1
Out of stock

8

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

1
Out of stock

9

SPRING, KICK STARTER

09440-30007

1
Out of stock

10

SPRING, KICK SHAFT RETURN

09448-38004

1
Out of stock

11

BOLT, KICK STARTER STOPPER

01547-0612A

2
Out of stock

12

PLATE, KICK STARTER SPR

08211-14321

1
Out of stock

13

LEVER ASSY, KICK STARTER | Includes Item(s) 14 - 16

26300-14H00

1
Out of stock

14

SPRING

09440-05003

1
Out of stock

15

BALL

06111-07004

1
Out of stock

16

CIRCLIP

08331-3113A

1
Out of stock

17

BOLT, KICK STARTER LEVER

01547-0620A

1
Out of stock
