2009 Suzuki DR-Z70 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

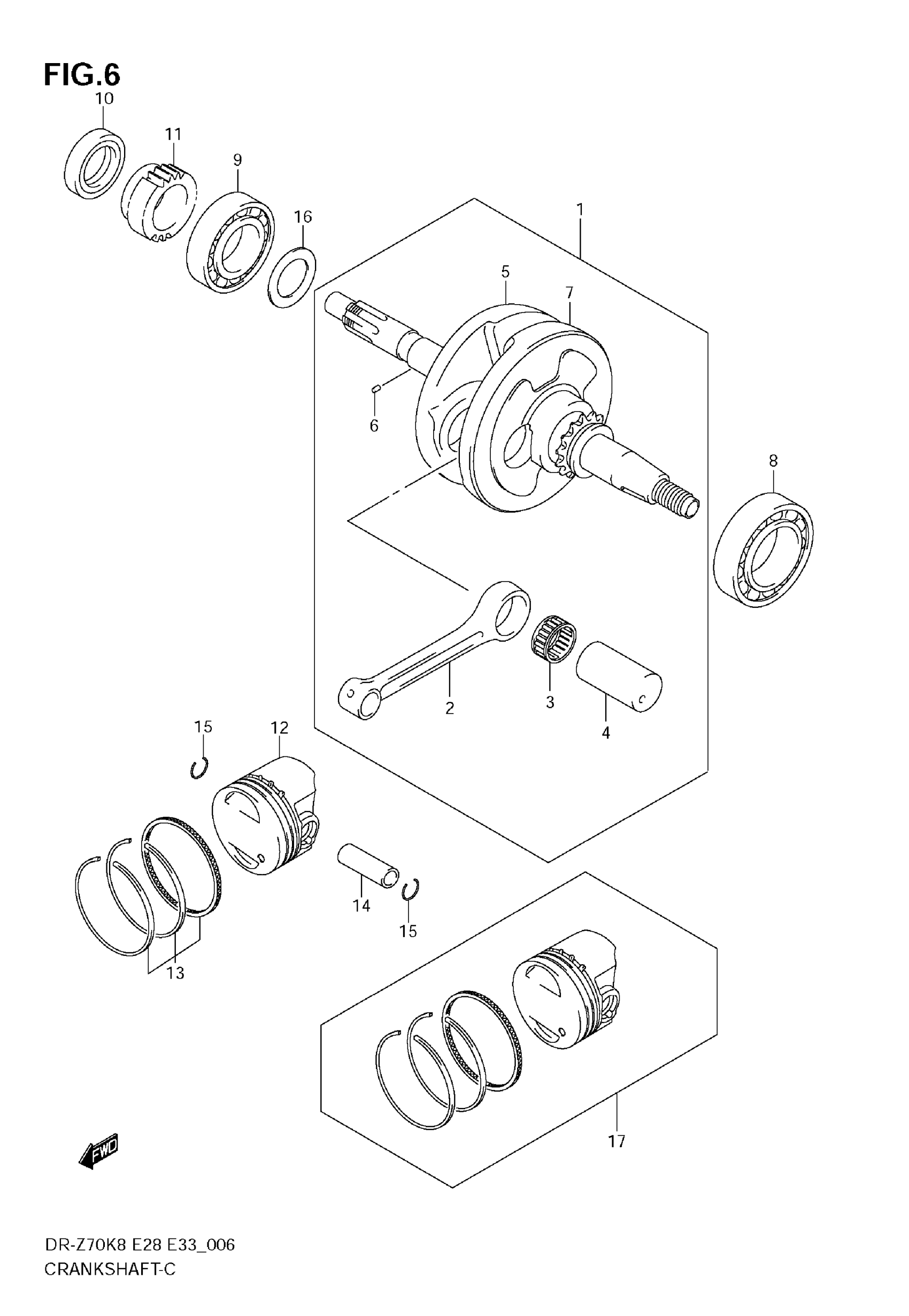

2009 Suzuki DR-Z70 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-14H01

1
Out of stock

2

CONNROD

12161-14H00-0C0

1
Out of stock

3

PIN

12211-09403-0A0

1
Out of stock

4

BEARING

09263-22072-0B0

1
Out of stock

5

CRANKSHAFT, RH

12220-14H00

1
Out of stock

6

PIN

04221-03059

1
Out of stock

7

CRANKSHAFT, LH

12260-14H01

1
Out of stock

8

BEARING, LH (35X62X14)

09262-35021-0A0

1
Out of stock

9

BEARING, RH (20X52X15)

09262-20073

1
Out of stock

10

OIL SEAL, RH (20X32X7)

09282-20005

1
Out of stock

11

GEAR, OIL PUMP DRIVE

16321-09411

1
Out of stock

12

PISTON

12111-14H00-0F0

1
Out of stock

13

RING SET, PISTON

12140-09D20

1
Out of stock

14

PIN, PISTON

12151-02A00

1
Out of stock

15

CIRCLIP

09381-13001

2
Out of stock

16

SHIM,20X30X0.6 (T:0.60)

09181-20187

1
Out of stock

16

SHIM,20X30X0.65 (T:0.65)

09181-20009

1
Out of stock

16

SHIM,20X30X0.7 (T:0.70)

09181-20188

1
Out of stock

16

SHIM,20X30X0.75 (T:0.75)

09181-20189

1
Out of stock

16

SHIM,20X30X0.8 (T:0.80)

09181-20190

1
Out of stock

16

SHIM,20X30X0.85 (T:0.85)

09181-20191

1
Out of stock

16

SHIM,20X30X0.9 (T:0.90)

09181-20192

1
Out of stock

16

SHIM,20X30X1.95 (T:0.95)

09181-20193

1
Out of stock

16

SHIM (T:1.00)

09181-20195

1
Out of stock

16

SHIM,20X30X1.05 (T:1.05)

09181-20197

1
Out of stock

16

SHIM,20X30X1.1 (T:1.10)

09181-20200

1
Out of stock

16

SHIM,20X30X1.15 (T:1.15)

09181-20202

1
Out of stock

16

SHIM,20X30X1.2 (T:1.20)

09181-20204

1
Out of stock

16

SHIM,20X30X1.25 (T:1.25)

09181-20207

1
Out of stock

16

SHIM,20X30X1.3 (T:1.30)

09181-20209

1
Out of stock

17

PISTON SET (OS:0.5) | OPT

12100-14H00-050

1
Out of stock
