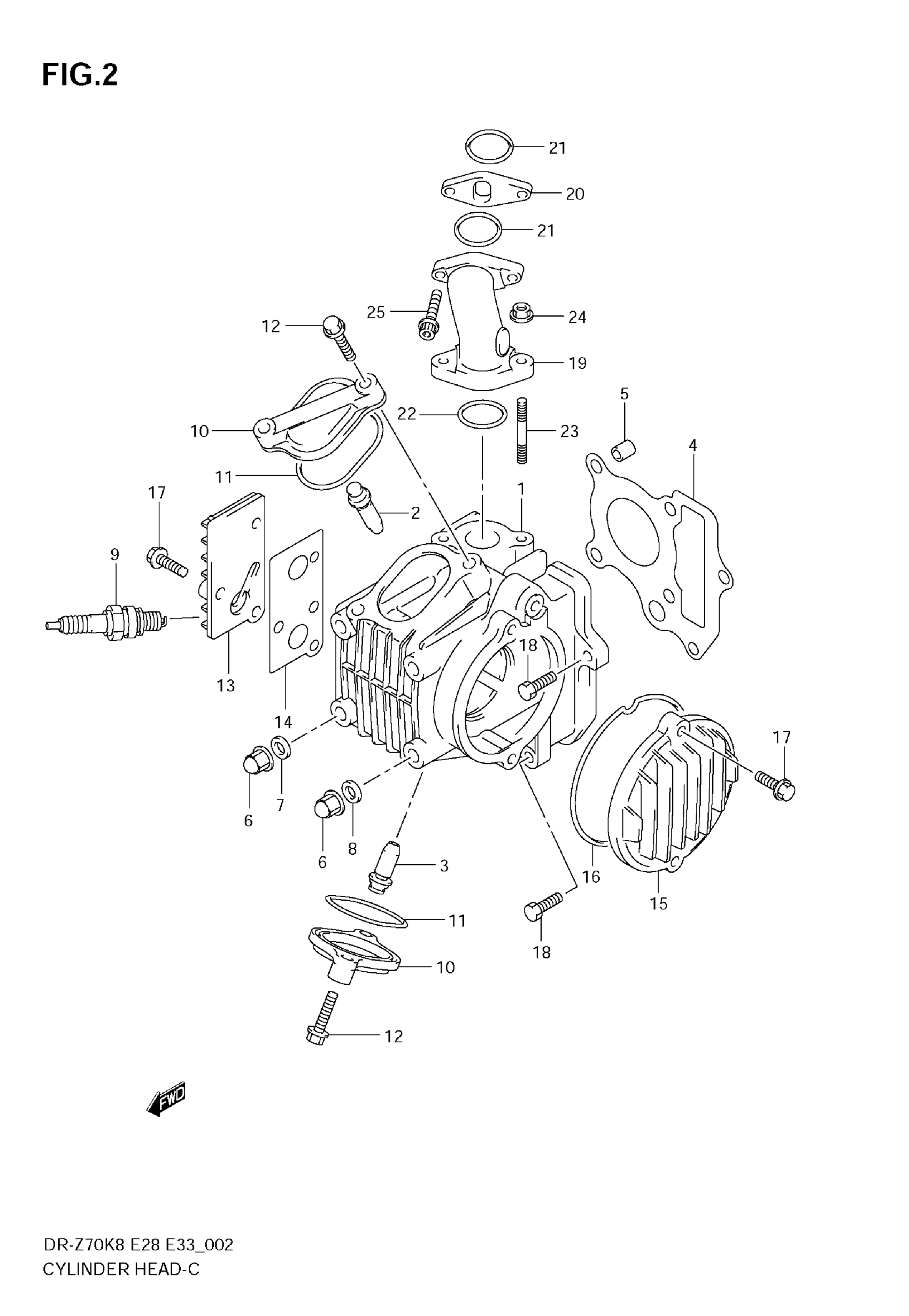

Suzuki DR-Z70 (2009) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER | Includes Item(s) 2 - 3

11110-02A00

Unavailable

2

GUIDE, INTAKE VALVE (OS:0.3)

11115-02A70

Unavailable

3

GUIDE, EXHAUST VALVE (OS:0.3)

11115-09470

Unavailable

4

GASKET, CYLINDER HEAD

11141-02A00

$14.35

5

PIN (8X11)

09206-08001

$1.77

6

NUT (M6)

09159-06100

$2.80

7

GASKET

09168-06017

$2.08

8

WASHER (6.5X14X2.3)

09160-06127

$2.50

9

SPARK PLUG (NGK,CR7HSA)

09482-00408

$10.72

9

SPARK PLUG (ND,U22FSR-U)

09482-00314

Unavailable

10

CAP, INSPECTION

11175-09400

Unavailable

11

O RING (D:2.4,ID:48.6)

09280-50007

$5.10

12

BOLT

01550-0625B

$2.43

13

COVER, CYLINDER HEAD, RH

11134-09400

Unavailable

14

GASKET, HEAD COVER, RH

11135-09420

$4.37

15

COVER, CYLINDER HEAD, LH

11121-09405

Unavailable

16

O RING (D:2.4,ID:73.5)

09280-70008

$8.80

17

BOLT

01550-0620B

$2.38

18

BOLT

01500-0620B

$2.35

19

PIPE, INTAKE

13111-14H00

$90.40

20

INSULATOR, CARBURETOR

13129-36G00

$8.37

21

O RING, INSULATOR (D:1.9,ID:21.8)

09280-21010

$2.02

22

O RING, INTAKE PIPE (D:2.4,ID:23.7)

09280-24010

$5.09

23

BOLT, STUD

01421-0620A

$1.89

24

NUT

08316-1006A

$2.19

25

BOLT (6X25)

07130-0625A

$2.64
