2009 Suzuki DR-Z70 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

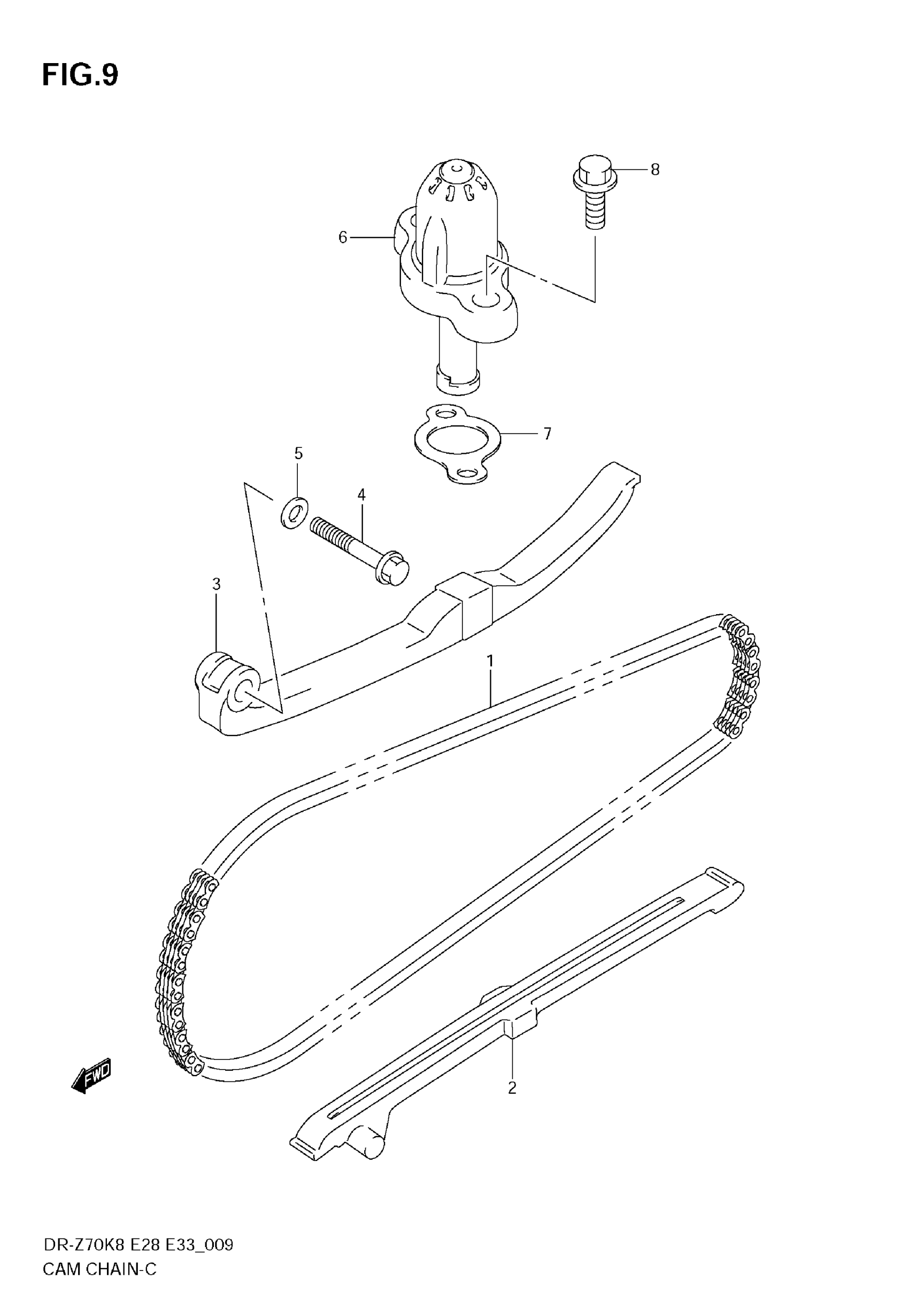

2009 Suzuki DR-Z70 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAM SHAFT DRIVE

12760-02A00

1
Out of stock

2

GUIDE, CAM CHAIN

12771-02A20

1
Out of stock

3

TENSIONER, CAM CHAIN

12811-09403

1
Out of stock

4

BOLT, TENSIONER

09103-06246

1
Out of stock

5

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

6

ADJUSTER ASSY, TENSIONER

12830-32G01

1
Out of stock

7

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock

8

SCREW

01547-0620A

2
Out of stock
Camshaft - Valve →
