2009 Suzuki DR-Z70 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

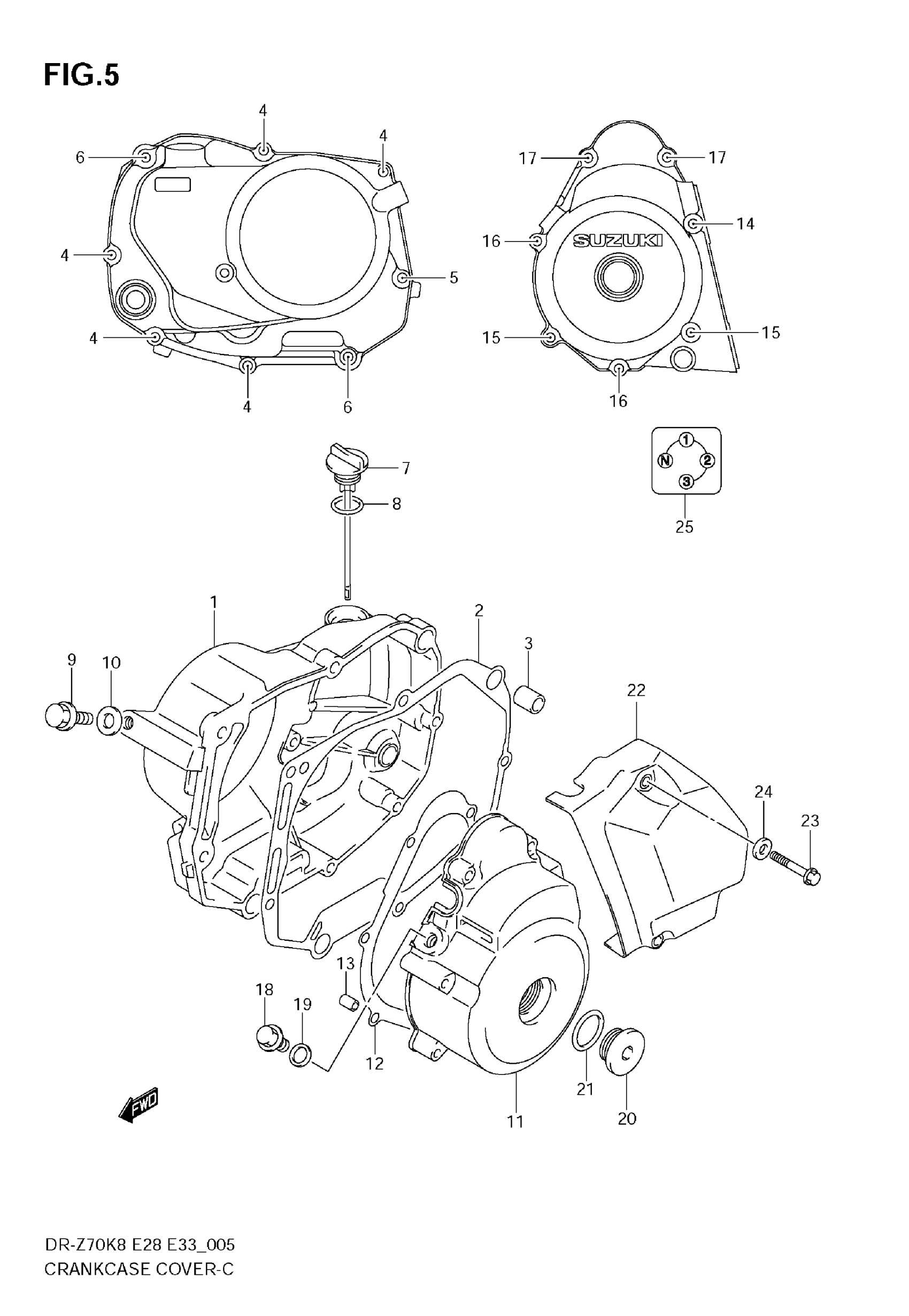

2009 Suzuki DR-Z70 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-14H00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-09420

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

BOLT

01547-0625A

5
Out of stock

5

BOLT

01547-0635A

1
Out of stock

6

BOLT

01547-0650A

2
Out of stock

7

GAUGE, OIL LEVEL

11971-055A0

1
Out of stock

8

O RING (D:3.2,ID:15.8)

09280-16008

1
Out of stock

9

BOLT (8X12)

01550-0812A

1
Out of stock

10

GASKET

09168-08015

1

$2.92

In stock

11

COVER, MAGNETO

11351-14H00

1
Out of stock

12

GASKET, MAGNETO COVER

11483-09440

1
Out of stock

13

PIN

04211-09129

2
Out of stock

14

BOLT

01547-0630A

1
Out of stock

15

BOLT

01547-0640A

2
Out of stock

16

BOLT

01547-0650A

2
Out of stock

17

BOLT

01547-0690A

2

$2.95

In stock

18

PLUG, TOP

09247-12006

1
Out of stock

19

GASKET

09168-12002

1
Out of stock

20

PLUG, HOLE

09259-26011

1
Out of stock

21

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

22

COVER, ENGINE SPROCKET

11360-14H00

1
Out of stock

23

BOLT

01547-0640A

2
Out of stock

24

WASHER

08322-0106A

2
Out of stock

25

LABEL, GEAR SHIFT PATTERN

28117-14H00

1
Out of stock
