Description

Price

1

CRANKCASE SET | Includes Item(s) 2 - 6

11300-14810

Unavailable

2

PIN

04211-13189

$2.25

3

BOLT

01547-0630A

$2.38

4

SCREW

01547-0640A

$2.38

5

BOLT

01547-0675A

$3.67

6

UNION, BREATHER HOSE

16910-09401

$17.41

7

SEPARATOR, OIL BREATHER

11186-30D00

Unavailable

8

PLUG, OIL DRAIN

09247-10008

$2.01

9

GASKET

09168-10002

$1.96

10

BOLT (8X100)

09103-08070

$5.24

11

NUT

08319-3108A

$2.38

12

WASHER

08322-0108A

$2.18

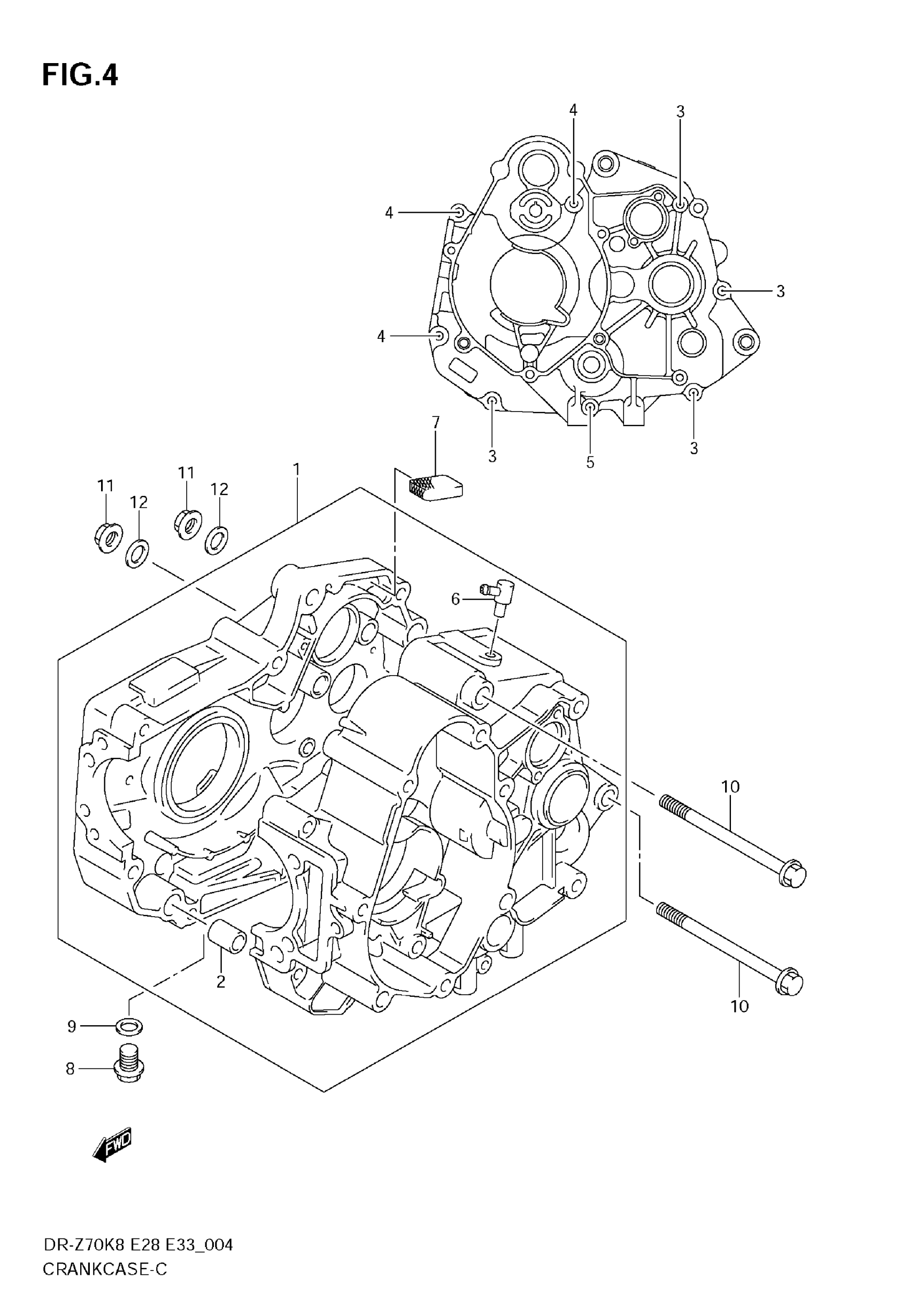

Suzuki DR-Z70 (2009) CRANKCASE Diagram

CRANKCASE SET | Includes Item(s) 2 - 6

PIN

BOLT

SCREW

BOLT

UNION, BREATHER HOSE

SEPARATOR, OIL BREATHER

PLUG, OIL DRAIN

GASKET

BOLT (8X100)

NUT

WASHER
