2012 Suzuki DR-Z400SL2 Radiator FAN Diagram

← All diagrams

Find the part on the Radiator FAN diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

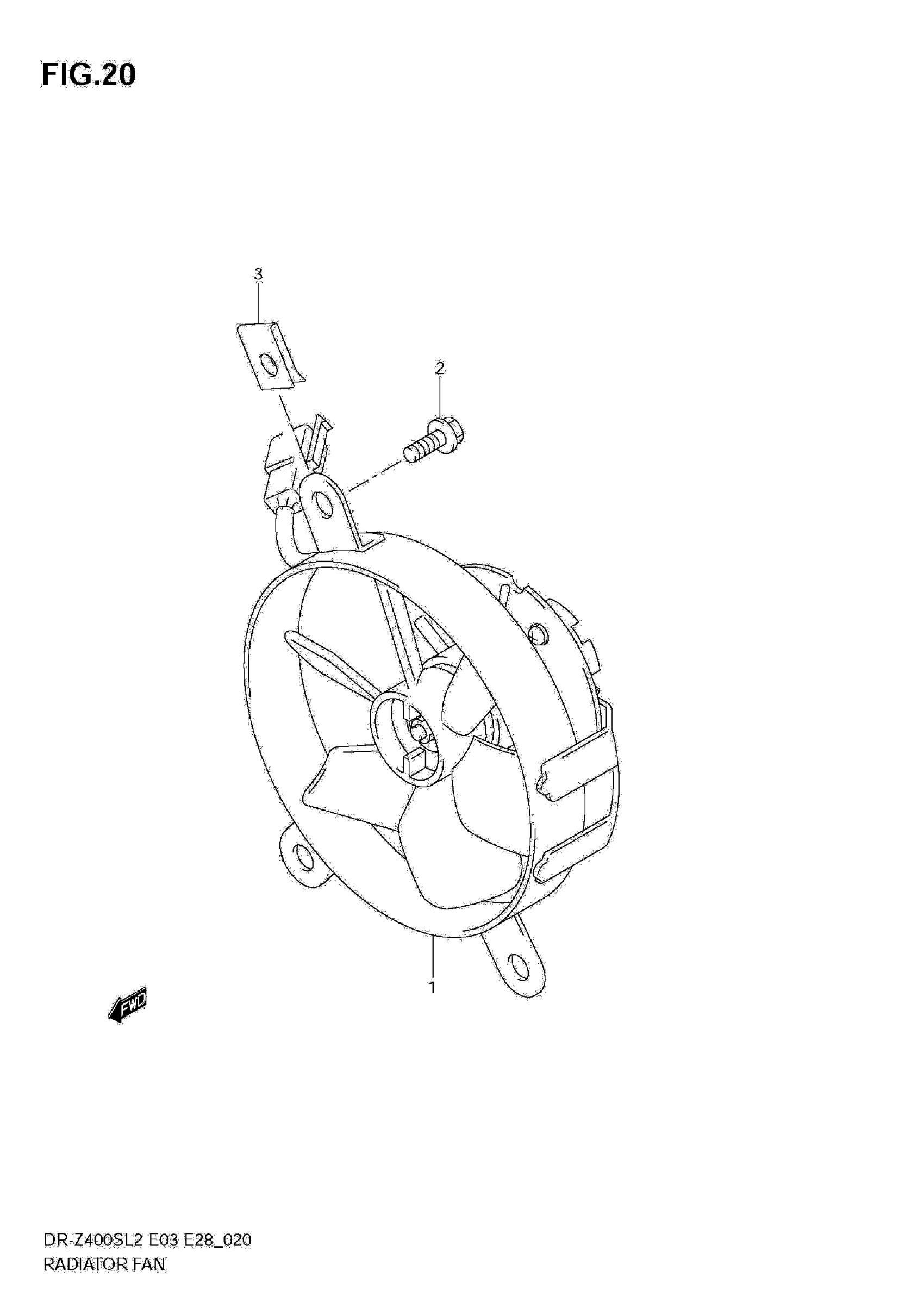

2012 Suzuki DR-Z400SL2 Radiator FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAN ASSY, RADIATOR

17800-29F01

1

$455.15

In stock

2

BOLT

01550-0610B

3
Out of stock

3

NUT

09148-06015

3
Out of stock
