2012 Suzuki DR-Z400SL2 Cylinder Head Diagram

← All diagrams

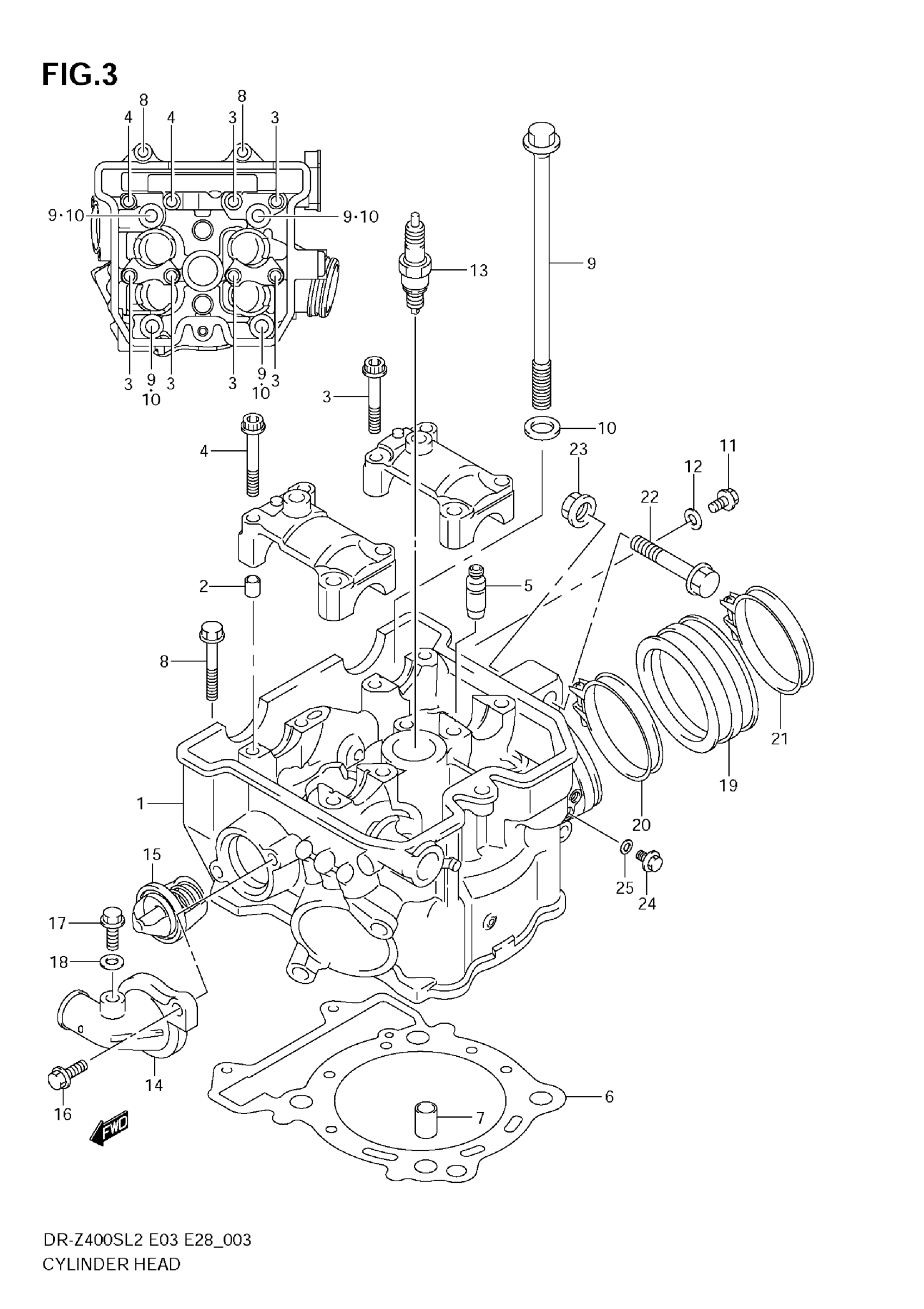

Find the part on the Cylinder Head diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z400SL2 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-29F11

1

$1,196.30

In stock

2

PIN

09206-08001

4
Out of stock

3

BOLT

07120-0640B

6

$3.26

In stock

4

BOLT

07120-0645B

2

$3.33

In stock

5

4

$32.91

In stock

6

GASKET, CYLINDER HEAD

11141-29F01

1

$41.35

In stock

7

PIN

04211-13189

2
Out of stock

8

BOLT (6X39)

09103-06504

2

$2.39

In stock

9

BOLT (10X175)

09103-10276

4

$15.50

In stock

10

WASHER (10.5X19X2)

09160-10082

4
Out of stock

11

BOLT

01550-0610A

1
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

SPARK PLUG (NGK,CR8E)

09482-00456

1

$6.43

In stock

13

1

$6.03

In stock

13

1

$6.17

In stock

13

1

$6.17

In stock

13

1

$6.17

In stock

13

1

$5.91

In stock

13

1

$6.03

In stock

13

1

$12.50

In stock

14

COVER, THERMOSTAT

17661-29F10

1

$51.22

In stock

15

1

$35.49

In stock

16

BOLT

01547-0616A

2
Out of stock

17

BOLT, AIR RELEASE

17568-50F00

1
Out of stock

18

GASKET (6.4X11.5X0.8)

09168-06026

1

$3.00

In stock

19

1

$13.70

In stock

20

CLAMP

09402-58208

1

$5.20

In stock

21

CLAMP

09402-52208

1
Out of stock

22

BOLT (10X50)

09103-10235

1

$6.15

In stock

23

NUT

09159-10115

1
Out of stock

24

BOLT (8X9.5)

09103-08421

2

$4.48

In stock

25

GASKET (8.2X14X1)

09168-08016

2
Out of stock
