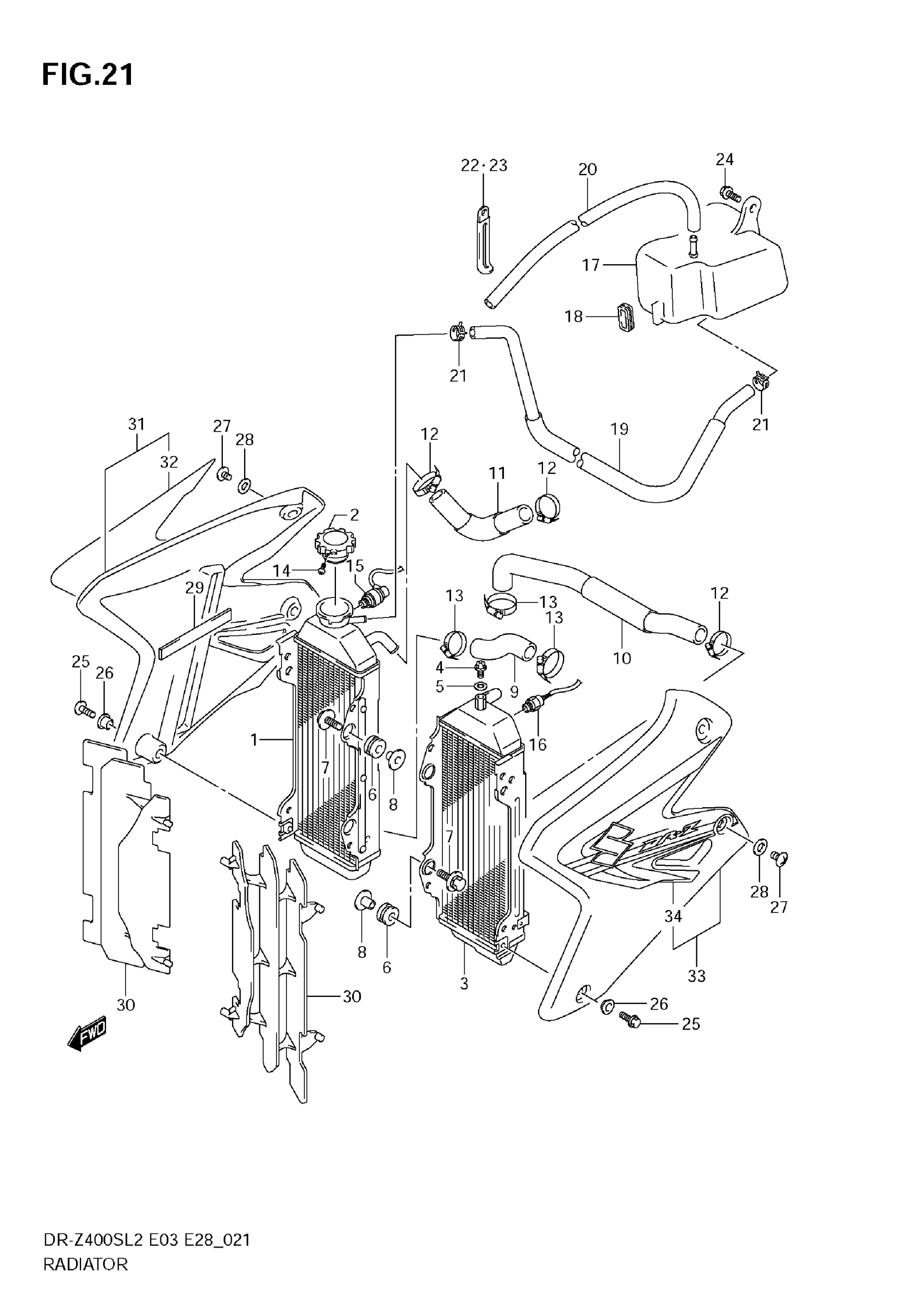

Suzuki DR-Z400SL2 (2012) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER RH

17710-29F40

$649.35

2

CAP, RADIATOR (1.1)

17730-19D11

$38.74

3

RADIATOR, WATERLH

17720-29F40

$675.00

4

BOLT, AIR RELEASE

17568-50F00

$6.32

5

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

6

CUSHION, RADIATOR SUPPORT

17787-19A00

$3.26

7

BOLT (6X25)

09116-06147

$2.93

8

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

9

HOSE, RADIATOR INLET

17851-29F10

$13.02

10

HOSE, RADIATOR OUTLET

17852-29F30

$56.78

11

HOSE, RADIATOR JOINT

17853-29F10

$30.12

12

CLAMP

09402-28513

$6.31

13

CLAMP

09402-32512

$13.97

14

SCREW,RADIATOR CAP

17733-03D10

$2.97

15

SWITCH ASSY, WATER TEMP

34850-29F00

$140.27

16

SWITCH, FAN

17680-24A30

$139.25

17

TANK, RESERVOIR

17911-29F11

$45.67

18

CUSHION, RESERVOIR TANK

17913-29F00

$5.00

19

HOSE, RESERVOIR TANK INLET

17981-29F01

$23.73

20

HOSE (5X9X2000) | L:2000->650

09352-50901-00B

$34.43

21

CLIP

09401-08411

$1.77

22

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

23

CLAMP (L:45)

09404-06429

$1.82

24

BOLT

01550-0612B

$2.38

25

BOLT (6X16)

09103-06274

$2.01

26

WASHER (6.3X16X1)

09169-06053

$1.10

27

BOLT (6X8)

09103-06275

$2.21

28

WASHER (6.5X14X1.6)

09160-06125

$1.89

29

CUSHION, RADIATOR COVER

47451-38A01

$5.00

30

LOUVER, RADIATOR

17831-37E11

$17.46

31

COVER, RADIATOR RH (BLACK) | FOR 019

17760-29FG0-3WX

$253.17

31

COVER, RADIATOR RH (WHITE) | FOR 30H

17760-29FG0-5UX

Unavailable

32

TAPE, RADIATOR COVER RH | FOR 3WX

68665-29FG0-HMA

$105.92

32

TAPE, RADIATOR COVER RH | FOR 5UX

68665-29FG0-HMB

Unavailable

33

COVER, RADIATOR LH (BLACK) | FOR 019

17770-29FG0-3WX

$253.17

33

COVER, RADIATOR LH (WHITE) | FOR 30H

17770-29FG0-5UX

Unavailable

34

TAPE, RADIATOR COVER LH | FOR 3WX

68675-29FG0-HMA

Unavailable

34

TAPE, RADIATOR COVER LH | FOR 5UX

68675-29FG0-HMB

Unavailable
