2012 Suzuki DR-Z400SL2 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

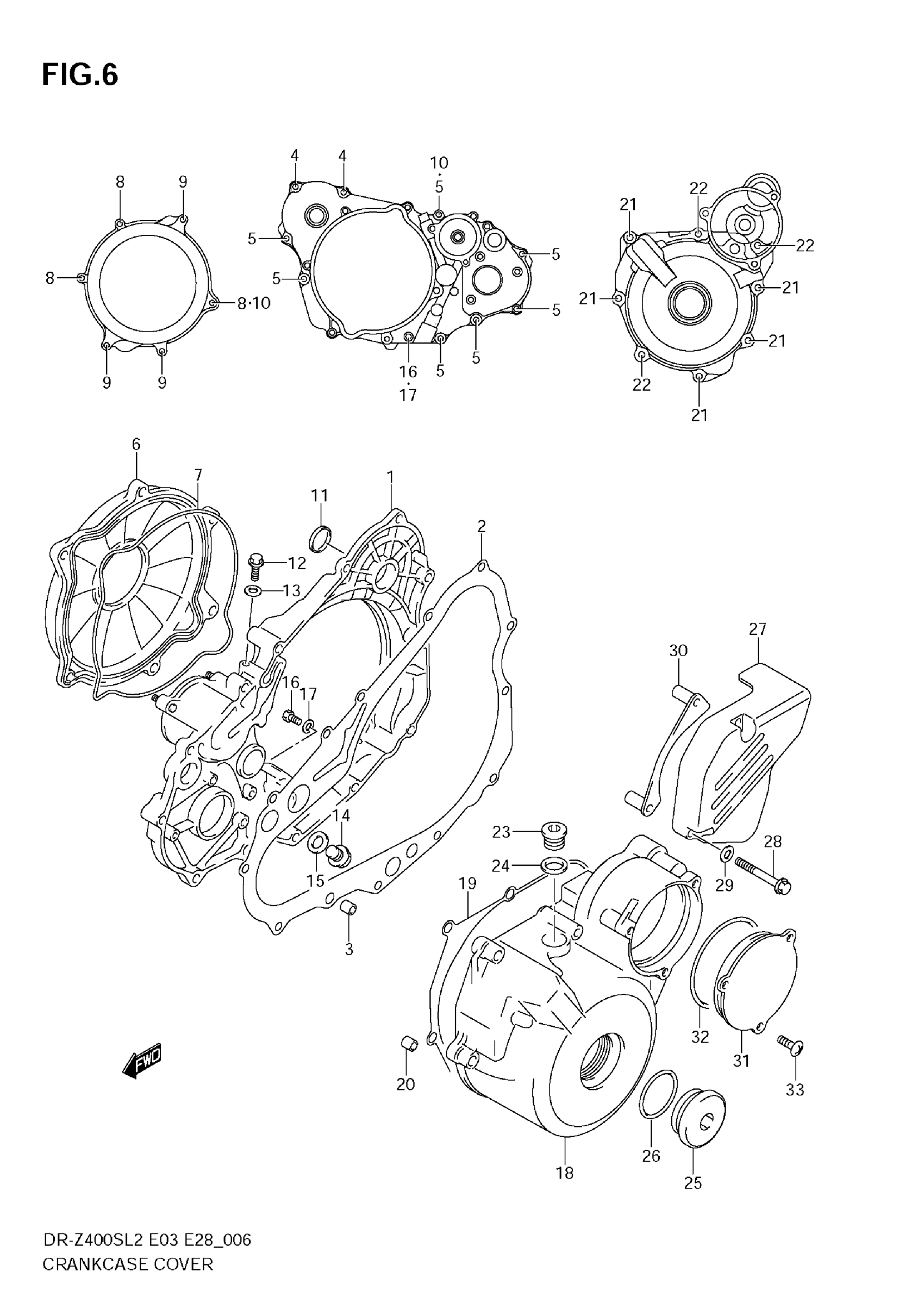

2012 Suzuki DR-Z400SL2 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11341-29F50

1
Out of stock

2

GASKET, CLUTCH COVER (NA)

11482-29F00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

BOLT

01547-0620A

2
Out of stock

5

BOLT

01547-0630A

7
Out of stock

6

COVER, CLUTCH OUTER

11371-29F50

1
Out of stock

7

O RING, CLUTCH COVER OUTER

11484-29F00

1
Out of stock

8

BOLT

01547-0620A

3
Out of stock

9

BOLT

01547-0655A

3
Out of stock

10

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

11

PLUG, CLUTCH COVER KICK

11342-15D00

1
Out of stock

12

BOLT

01547-0612A

1
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

14

PLUG

09247-12006

1
Out of stock

15

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

16

BOLT

01550-0610A

1
Out of stock

17

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

18

COVER, MAGNETO

11351-29F60

1
Out of stock

19

GASKET, MAGNETO COVER (NA)

11483-29F00

1
Out of stock

20

PIN

04211-09149

2
Out of stock

21

BOLT

01547-0630A

5
Out of stock

22

BOLT

01547-0640A

3
Out of stock

23

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

24

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

25

PLUG

09259-36016-20H

1
Out of stock

26

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

27

COVER, ENGINE SPROCKET

11360-29F50

1
Out of stock

28

BOLT

01547-0650A

2
Out of stock

29

WASHER (6.5X14X2.0)

09160-06126

2
Out of stock

30

PLATE, FRONT CHAIN GUIDE 15T

27640-29F11

1
Out of stock

31

COVER, STARTER IDLE GEAR

11352-29F50

1
Out of stock

32

O RING (D:2.6,ID:67.1)

09280-71008

1
Out of stock

33

SCREW

02142-0616A

3
Out of stock
